LX3015CT

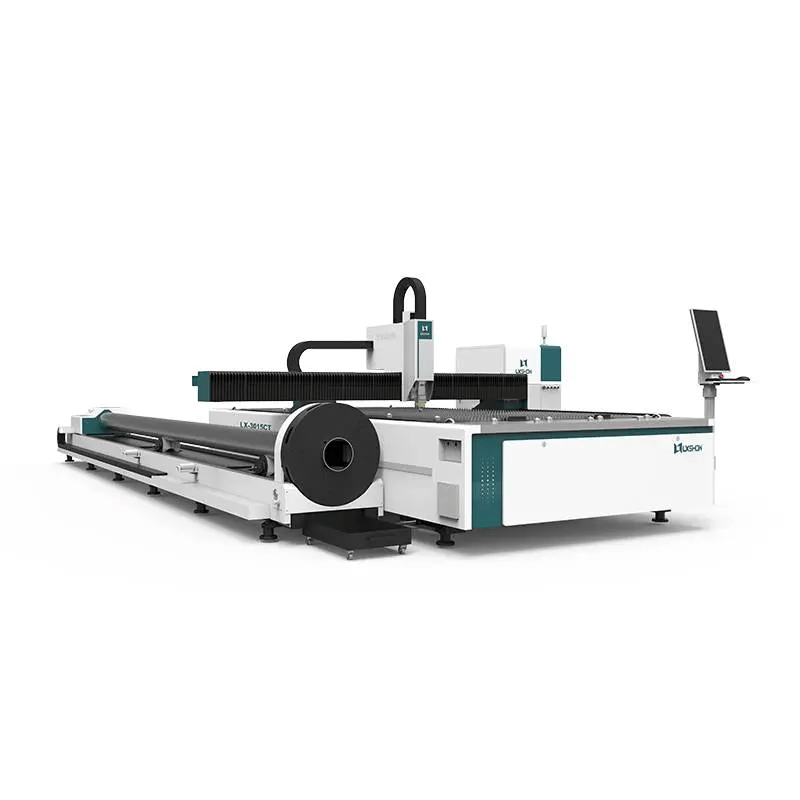

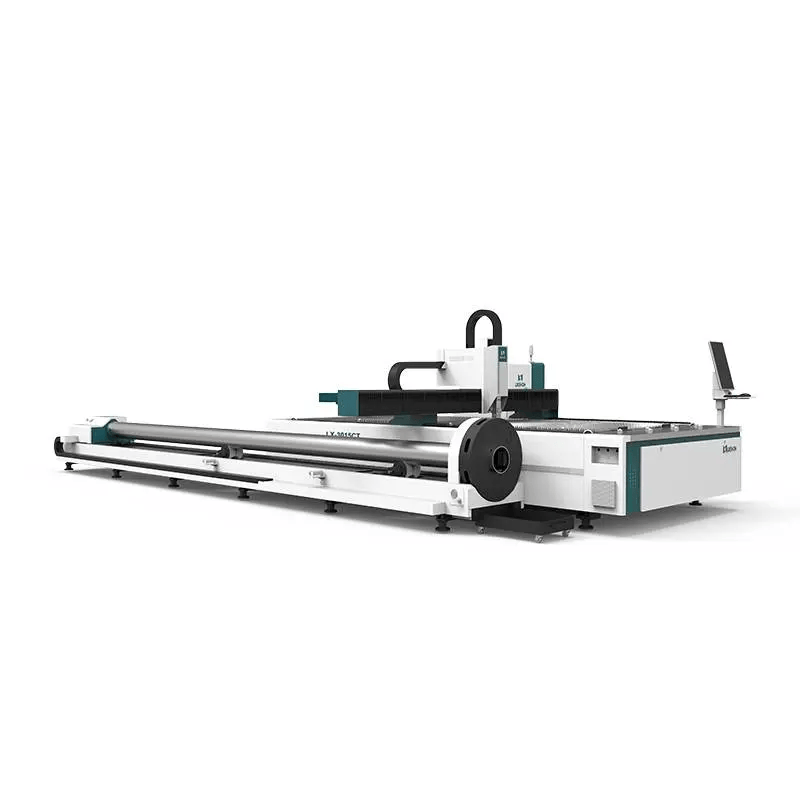

The LX3015CT is a high-efficiency industrial fiber laser cutting machine designed to maximize the optimization of production costs and workspace. Available with power outputs ranging from 1 kW to 12 kW, this open-design CNC laser features a standard 1500 x 3000 mm working area for sheets, as well as an integrated pneumatic rotary axis for processing pipes and profiles.

Specifications

Model number :

LX3015CT

Laser source power :

1 000 - 12 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.02mm

Cutting precision :

±0.01mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
