LX3015DHT (Integrated)

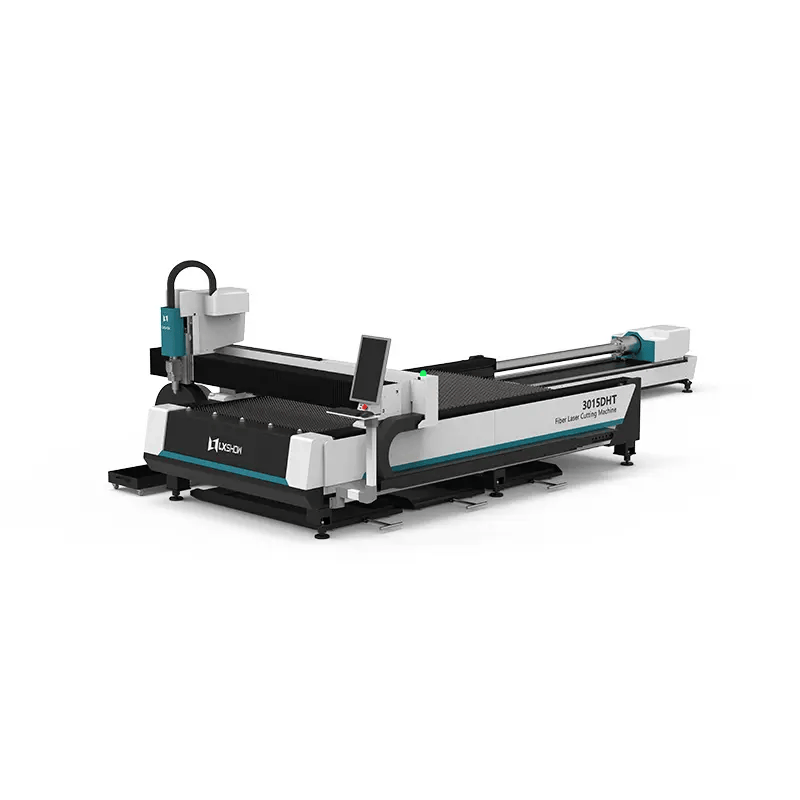

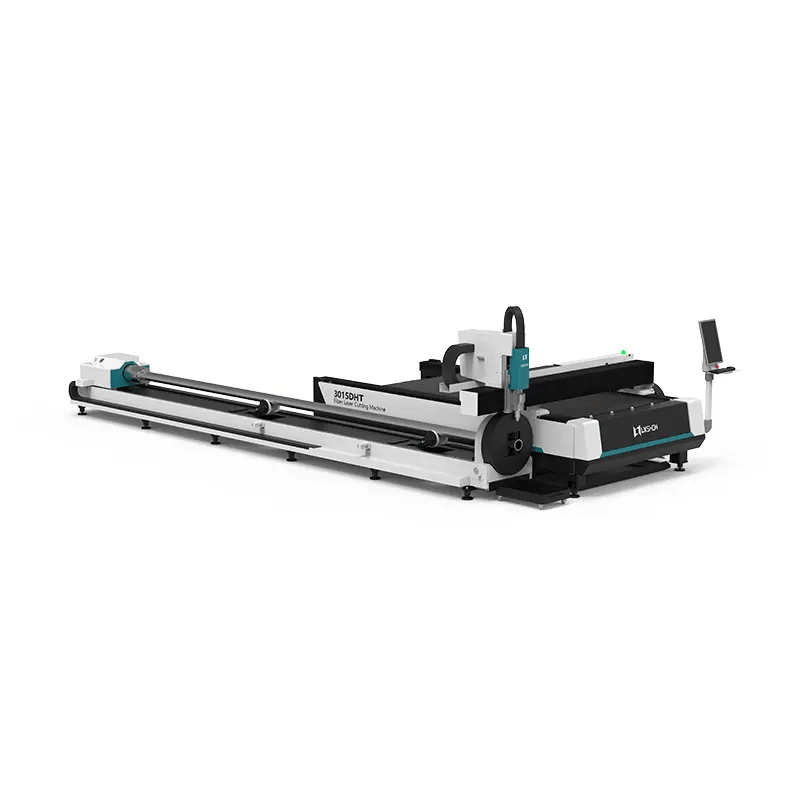

The LX3015DHT is a newly designed, compact CNC fiber laser cutting machine featuring an integrated pass-through rotary axis. This design enables highly efficient, space-saving processing of both metal sheets (up to 1500 x 3500 mm) and pipes within a single workstation. This intelligent CNC laser is available with a wide power range—from 1 kW up to 30 kW—making it suitable for the rapid cutting of materials ranging from thin sheets to exceptionally thick plates.

Specifications

Model number :

LX3015DHT

Laser source power :

1 000 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1 500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.05mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
