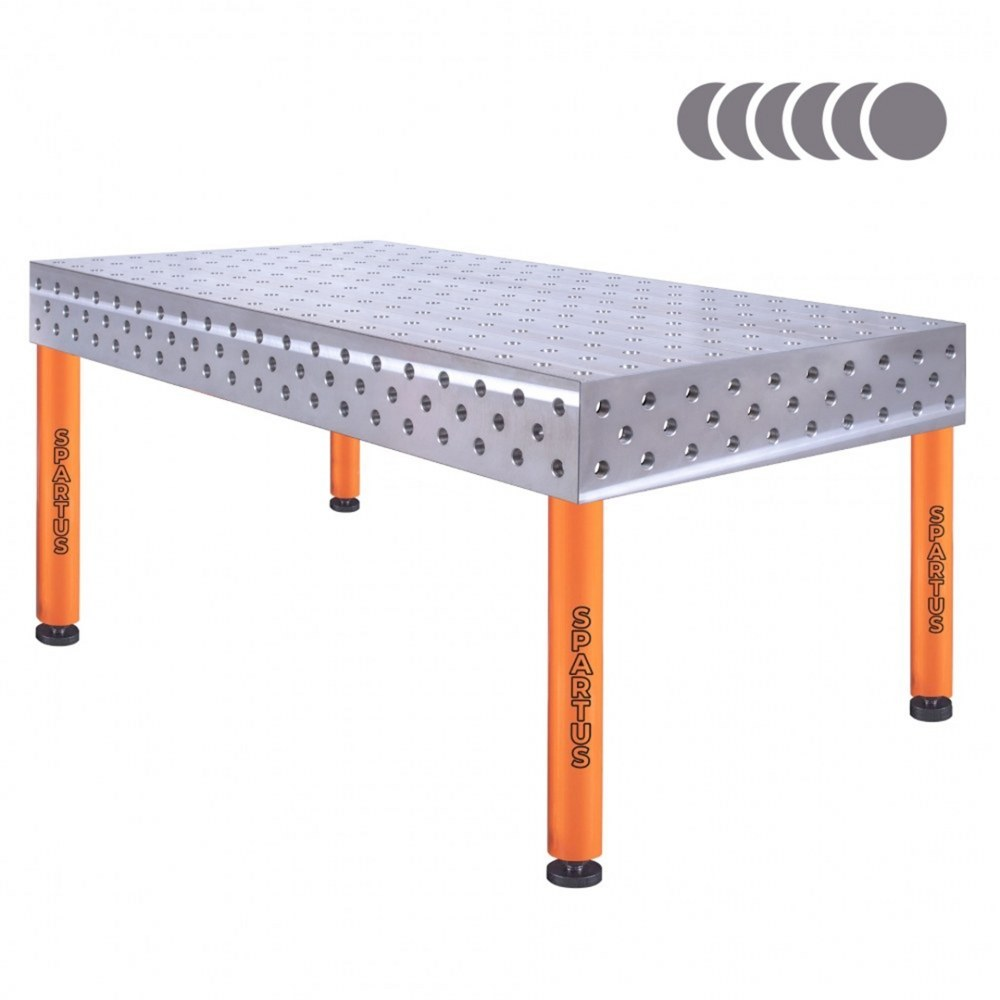

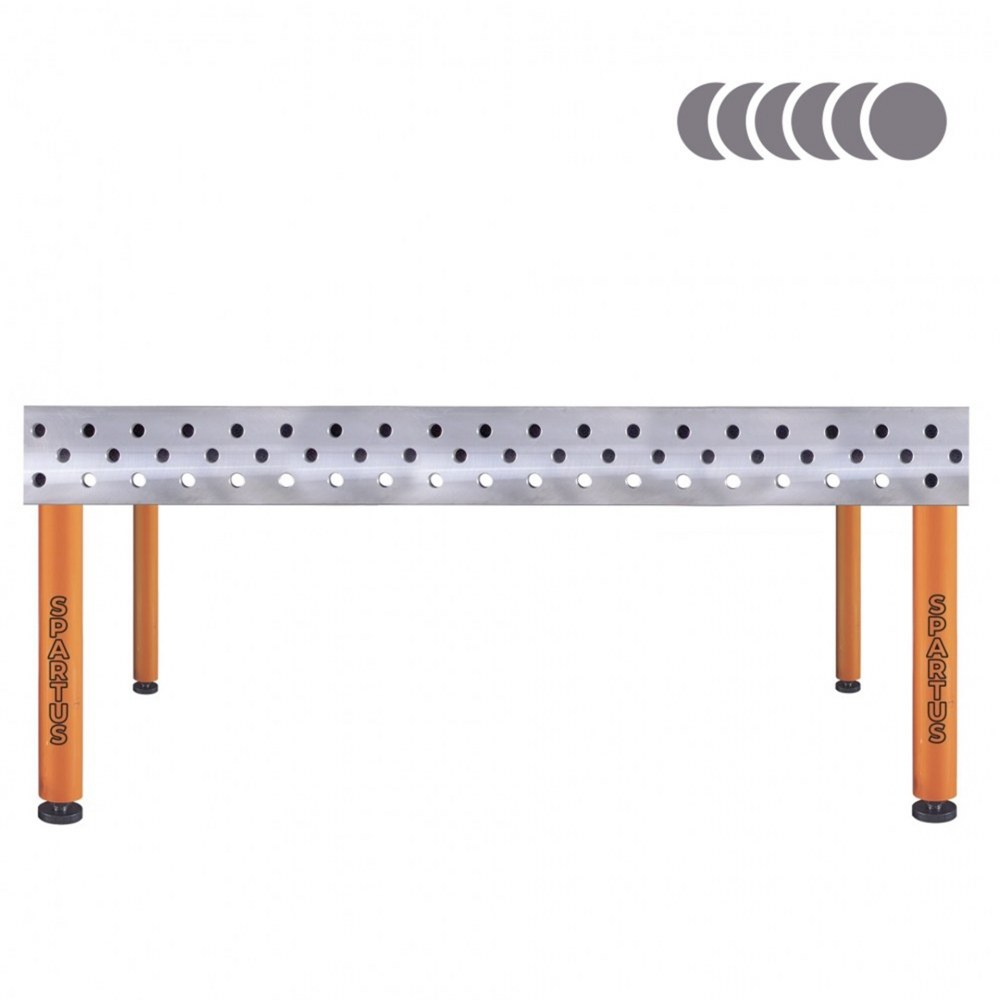

HERMES 3D : 2000 x 1000 x 200 (L=620)

HERMES 3D : 2000 x 1000 x 200 - 4 table legs (L=620) 25mm S355J2+N STEEL TABLE TOP , 3D SIDE, D28 SYSTEM, METRIC SCALE. Welding table top is made of S355J2+N steel grade, which is characterized by high strength and resistance to impact and deformation, and also provides protection against corrosion and weld spatter.

price without VAT
2 700.00 €

Specifications

Size  2000 x 1000 x 200mm
Material S355J2+N steel acc. to EN 10025-2
Table top thickness 25mm
Table horizontal precision 0.1 / 1000mm
Table vertical precision 0.1 / 200mm
Standard D28 ( drilled and milled holes 28mm diameter )
Carrying capacity 2000kg/leg
Type of leg 4pcs. with foot
Leg length

L = 620mm
Total table height 870mm
Table top weight 720kg
Leg lenght options
L200 L350 L450 L550 L620

Features

RELY ON COMFORT DURING WELDING, BY USING THE HERMES TABLES!

S355J2+N STEEL
Welding table top is made of S355J2+N steel grade, which is characterized by high strength and resistance to impact and deformation,
and also provides protection against corrosion and weld spatter.


25mm TABLE TOP
The table top with a thickness of 25 mm guarantees the durability of the table and resistance to mechanical damage.

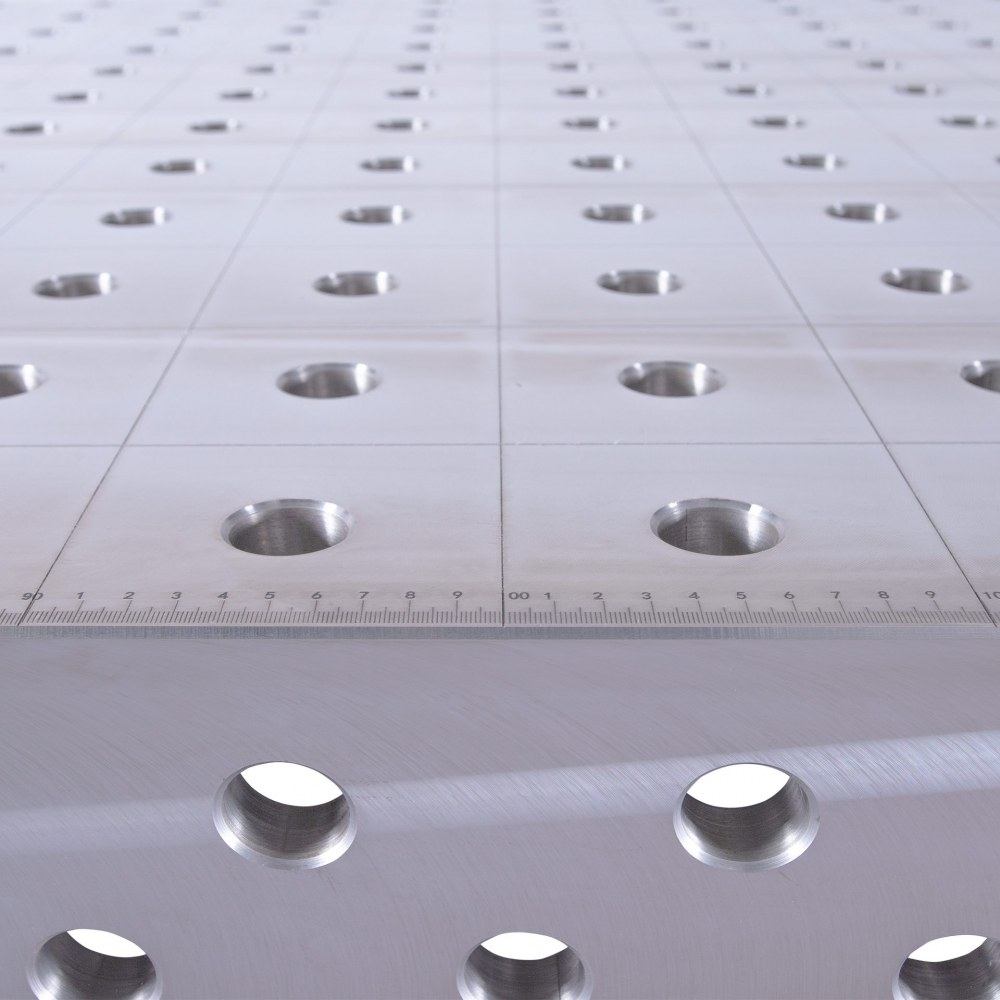

METRIC SCALE
The applied millimeter scale facilitates precise assembly of the element to be processed.

3D SIDE
It allows to expand the working surface and joining the table tops.

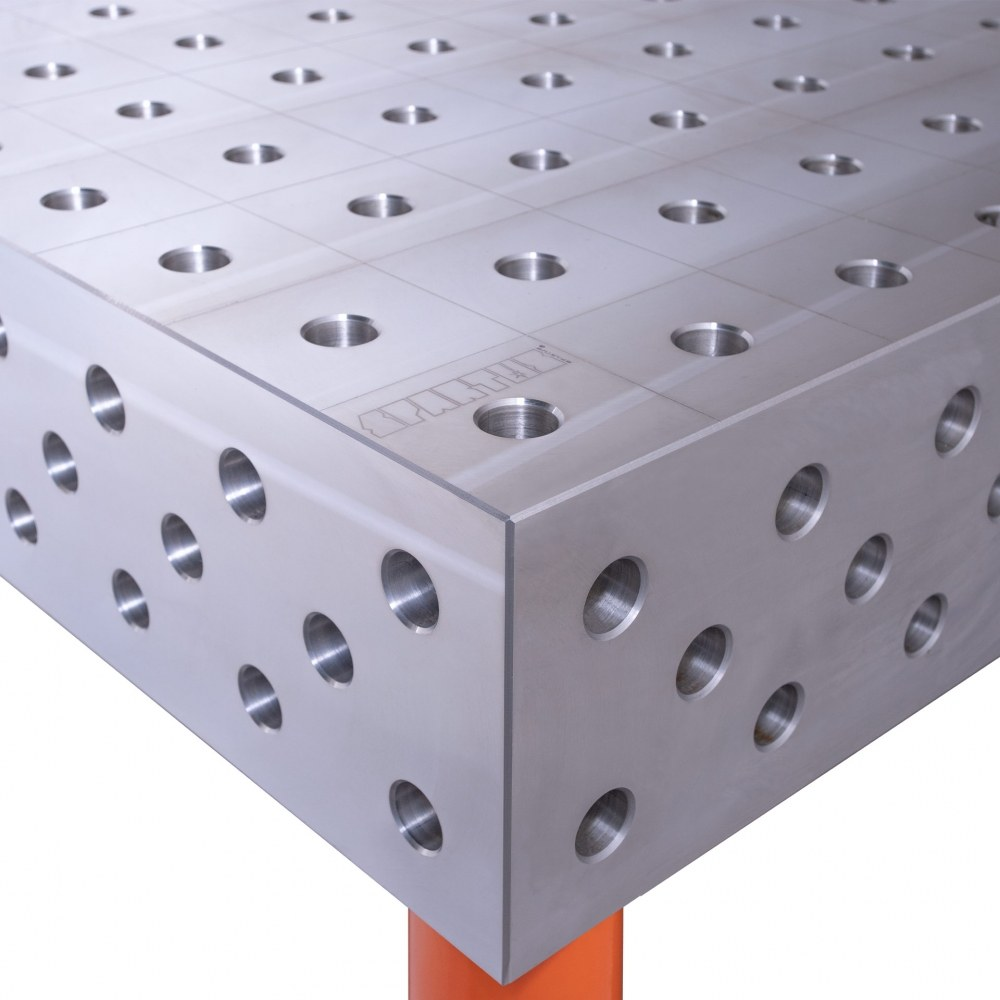

D28 SYSTEM
Drilled and chamfered holes 28mm.
