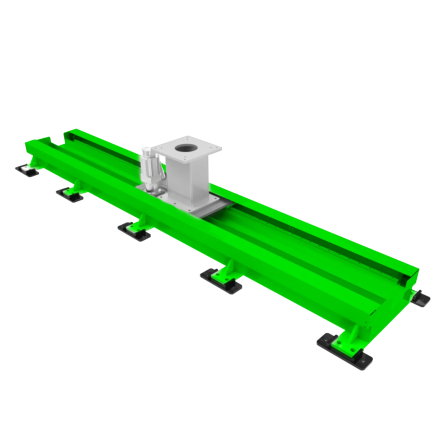

The R1 series robot tracks are linear motion systems designed for moving welding robots and positioners across the production area. Load capacity: 500–2000 kg | Maximum travel speed: 500–800 mm/sec | Effective working length: 2.5–3 m. Three models are available—R1-500, R1-1000, and R1-2000—featuring different load capacities and travel speeds. The effective working length is calculated for a 4 m track: 3 m (for the R1-500) or 2.5 m (for the R1-1000 and R1-2000), including the base but excluding the cover. If a cover is added, the effective working length is reduced by 20%. Maximum length of a [...]
Read more

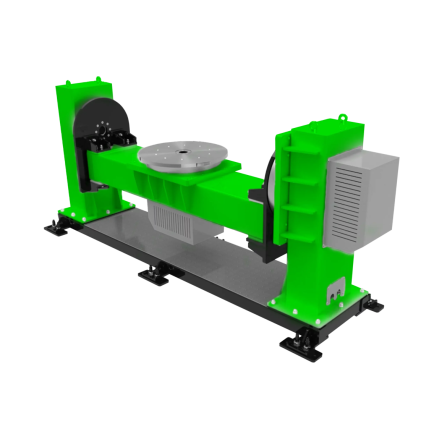

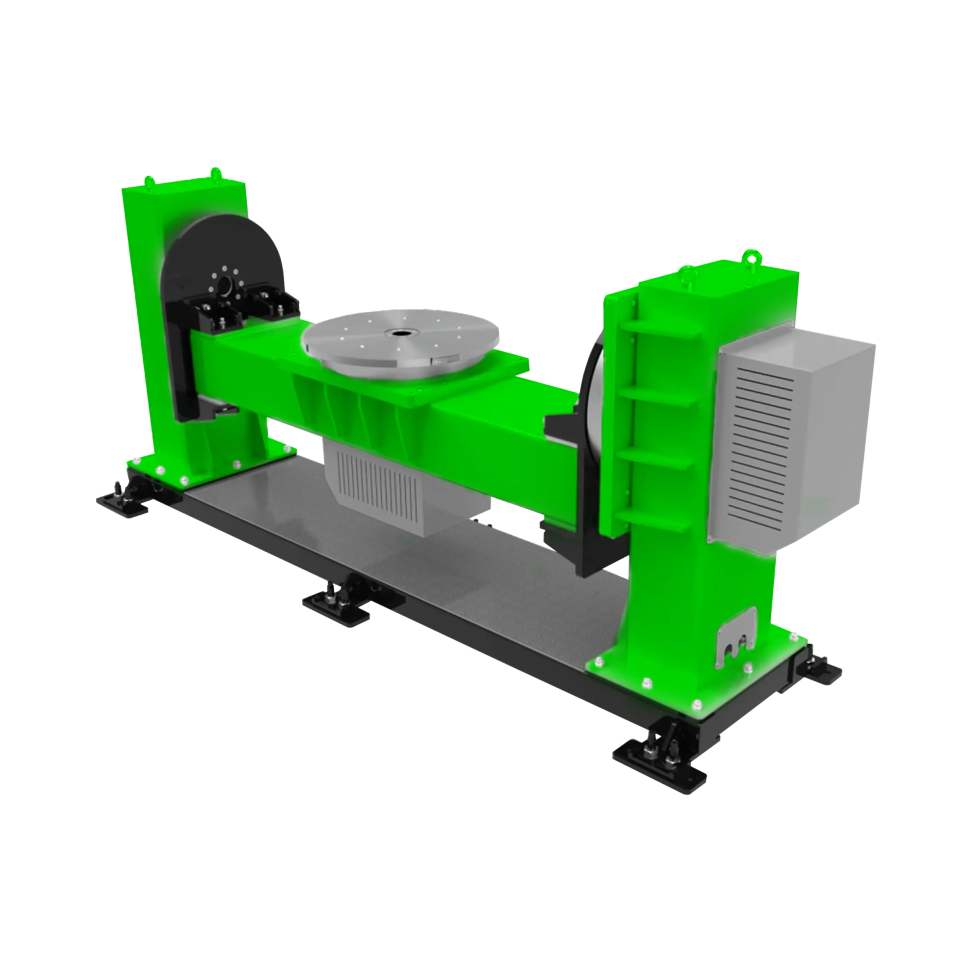

The UT2 series of two-axis positioners are welding positioning units featuring a tilting axis (±90°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–1000 kg. Six models are available—UT2-250-1200, UT2-500-1200, UT2-250-1400, UT2-500-1400, UT2-1000-1500, and UT2-1000-1600—with table diameters of 1200 mm, 1400 mm, 1500 mm, or 1600 mm, depending on the configuration.
Read more

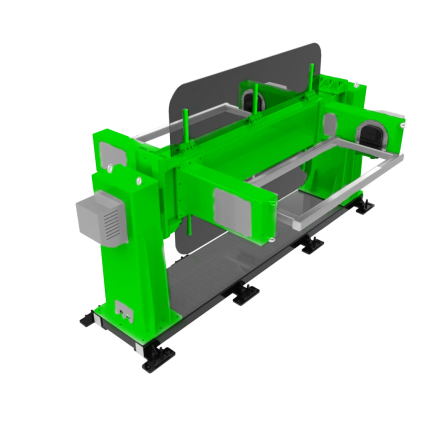

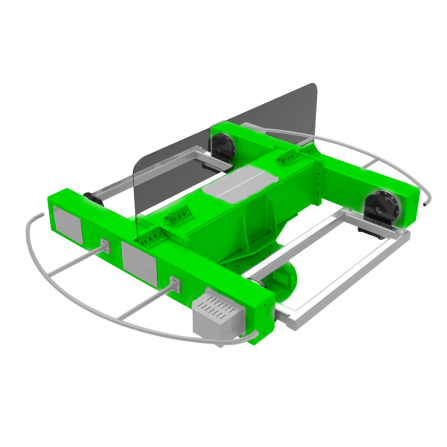

The U3 series three-axis positioners are welding positioning units featuring a tilting axis (±180°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–1000 kg. Six models are available—U3-250-1800/800, U3-500-1800/800, U3-1000-1800/800, U3-250-2500/800, U3-500-2500/800, and U3-1000-2500/800—with a frame size of 1800×800 mm or 2500×800 mm, depending on the configuration.
Read more
The HRU3 series three-axis positioners are welding positioning units featuring a tilting axis (±180°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–1000 kg. Six models are available—HRU3-250-1800/800, HRU3-500-1800/800, HRU3-1000-1800/800, HRU3-250-2500/800, HRU3-500-2500/800, and HRU3-1000-2500/800—with a frame size of 1800×800 mm or 2500×800 mm, depending on the configuration.
Read more

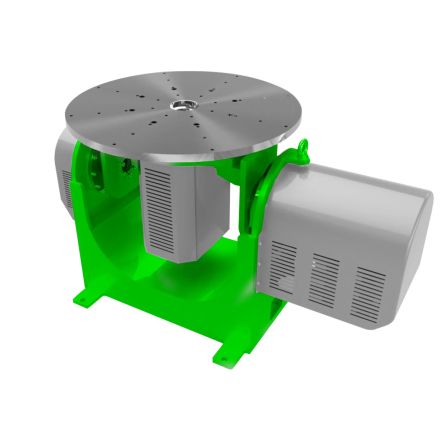

The P2 series two-axis positioners are welding positioning units featuring a tilting axis (±90°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–500 kg. Two models are available—P2-250-800 and P2-500-800—both with an 800 mm table diameter. The two-axis design allows for the rotation of workpieces in two planes, ensuring access to the welding area from all sides.
Read more

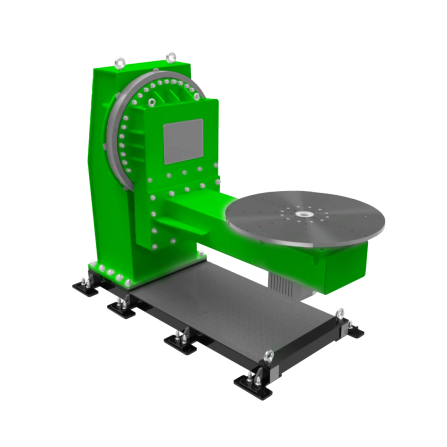

The L2 series two-axis positioners are welding positioning units featuring a tilting axis (±180°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–2000 kg. Four models are available—L2-250-800, L2-500-800, L2-1000-1200, and L2-2000-1200—with a table diameter of 800 mm or 1200 mm, depending on the load capacity. The two-axis design allows for the rotation of workpieces in two planes, ensuring access to the welding area from all sides.
Read more

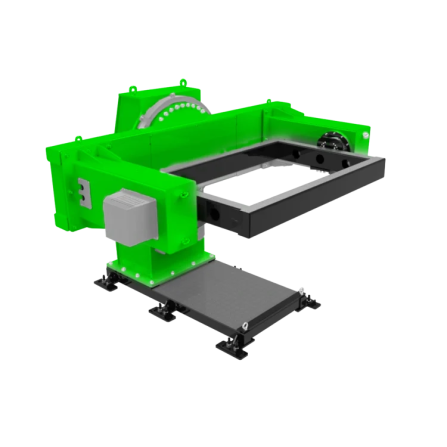

The LU2 series two-axis positioners are welding positioning units featuring a tilting axis (±180°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–2000 kg. Four models are available—LU2-250-1800/800, LU2-500-1800/800, LU2-1000-1800/800, and LU2-2000-1800/800—all with a frame size of 1800×800 mm. The two-axis design allows for the rotation of workpieces in two planes, ensuring access to the welding area from all sides.
Read more

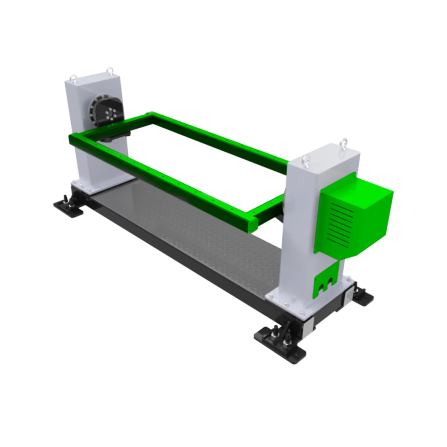

The U1 series single-axis positioners are welding positioning units with ±360° rotation, designed to place workpieces in an optimal welding position. Load capacity: 250–3000 kg. Eight models are available, featuring two frame sizes—1800×800 mm, 2500×800 mm, and 3000×800 mm—depending on the load capacity. The height of the unit from the axis center to the base is 650 mm (for smaller models) or 950 mm (for larger models).
Read more

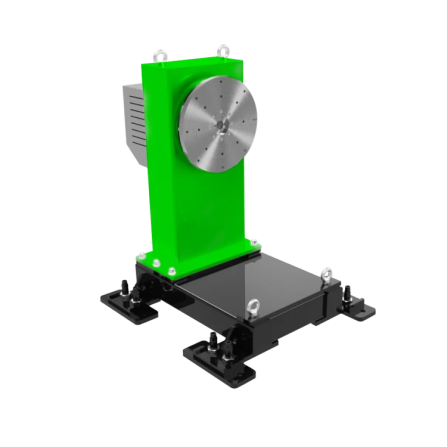

The L1 series single-axis positioners are welding positioning units with ±360° rotation, designed to place workpieces in an optimal welding position. Load capacity: 250–2000 kg. Four models are available — L1-250-400, L1-500-400, L1-1000-800, and L1-2000-800 — featuring a table diameter of 400 mm or 800 mm, depending on the load capacity.
Read more

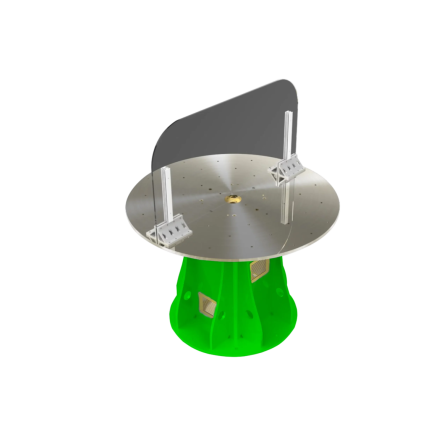

Rotary tables ensure precise positioning of workpieces, allowing welding to be performed in a more convenient position and improving weld quality. Three models are available, featuring different load capacities and rotation speeds: TT1-250-400, TT1-500-400, and TT1-750-400.
