Linear robot rails

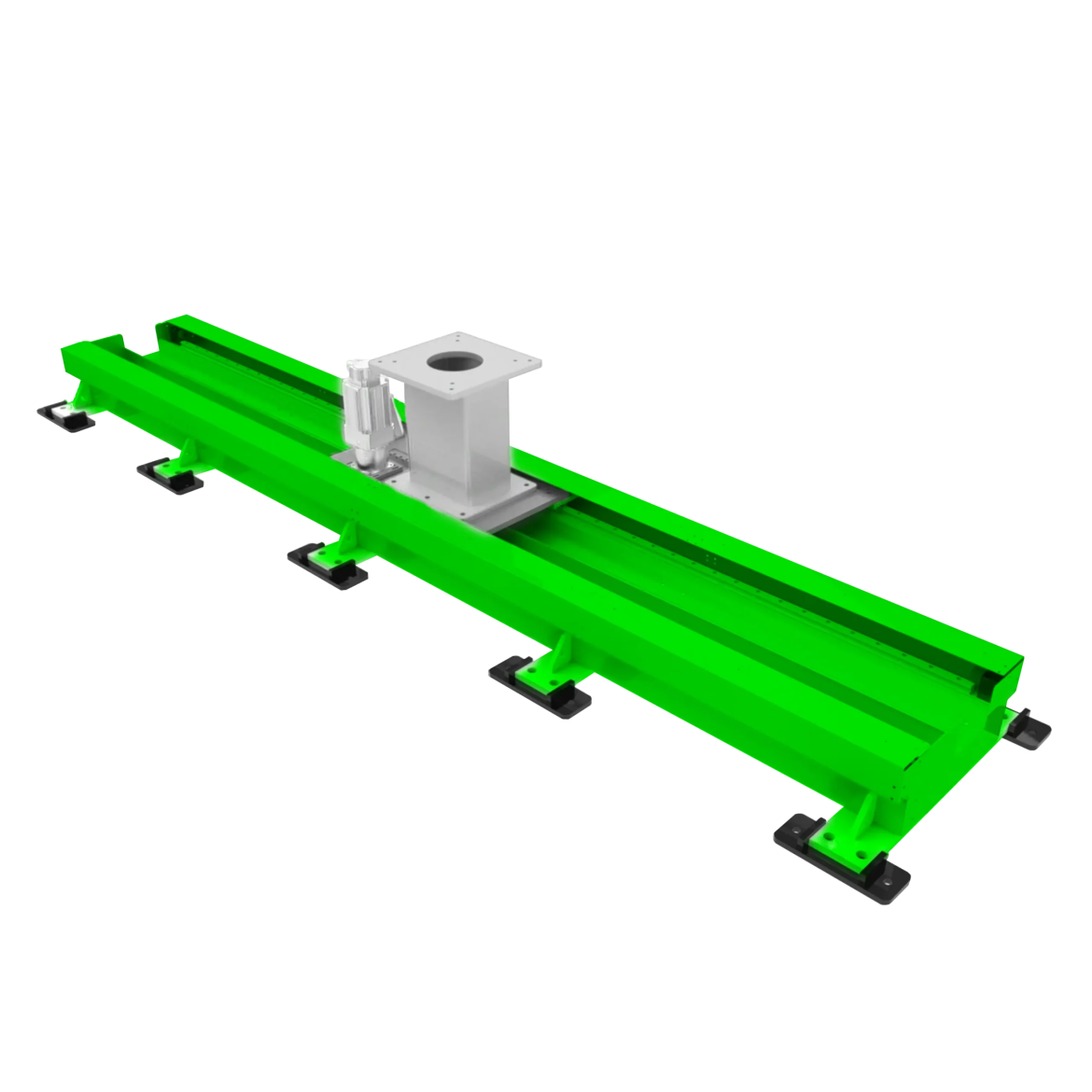

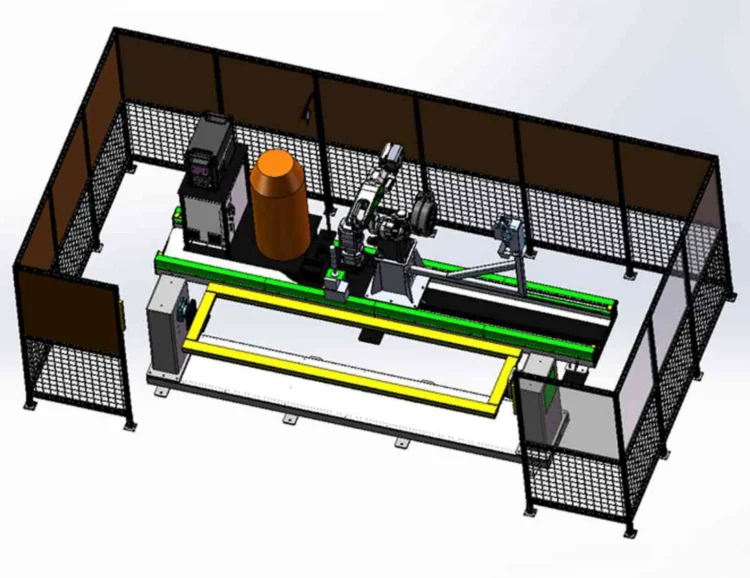

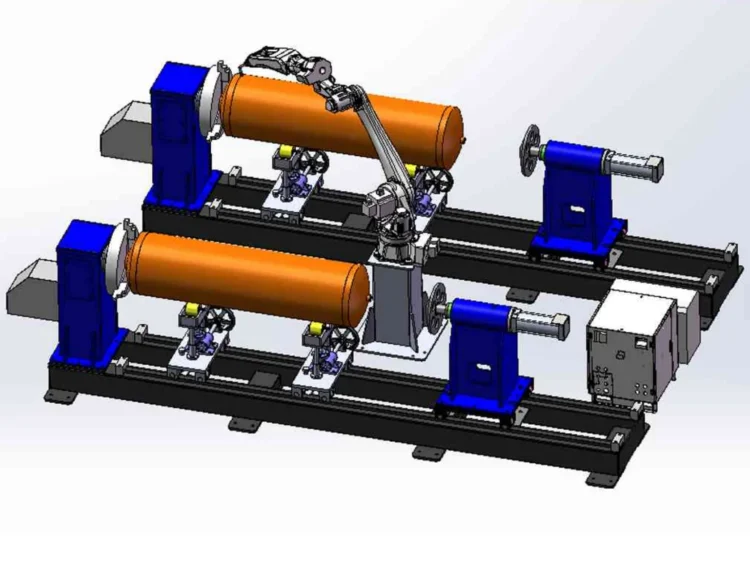

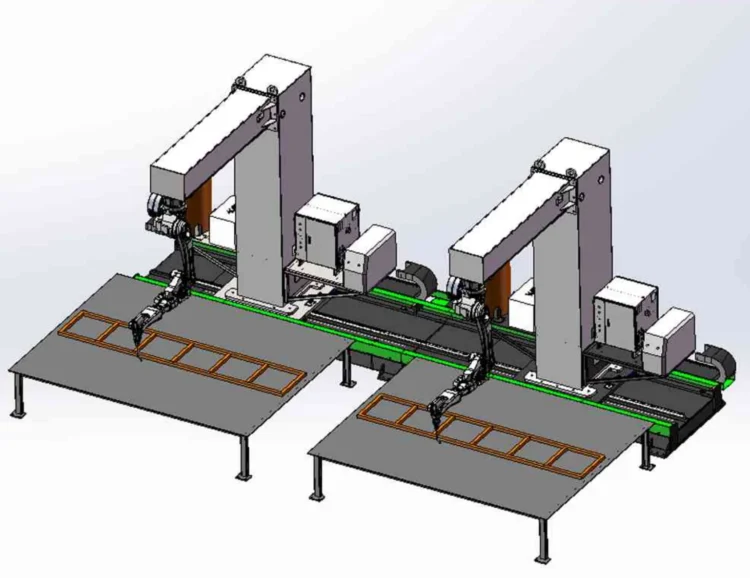

The R1 series robot tracks are linear motion systems designed for moving welding robots and positioners across the production area. Load capacity: 500–2000 kg | Maximum travel speed: 500–800 mm/sec | Effective working length: 2.5–3 m. Three models are available—R1-500, R1-1000, and R1-2000—featuring different load capacities and travel speeds. The effective working length is calculated for a 4 m track: 3 m (for the R1-500) or 2.5 m (for the R1-1000 and R1-2000), including the base but excluding the cover. If a cover is added, the effective working length is reduced by 20%. Maximum length of a single module: 6 m.

Specifications

Parameter	R1-500	R1-1000	R1-2000
Load capacity (kg):	500	1000	2000
Working length (mm):	Effective working length for a 4 m rail: 3 m , including the base, without cover. Maximum length of 1 module: 6 m . The effective working length is reduced by 20% if a cover is added.	Effective working length for a 4 m rail: 2.5 m , including the base, without cover. Maximum length of 1 module: 6 m .	Effective working length for a 4 m rail: 2.5 m , including the base, without cover. Maximum length of 1 module: 6 m .
Maximum travel speed (mm/s):	800	800	500
Repeatability (arcmin):	±0.1	±0.1	±0.15
Total reduction ratio:	14.2742	13.407	20.8227
Servo motor power (kW):	1.5	3.0	3.0
