Single-axis rotary tables

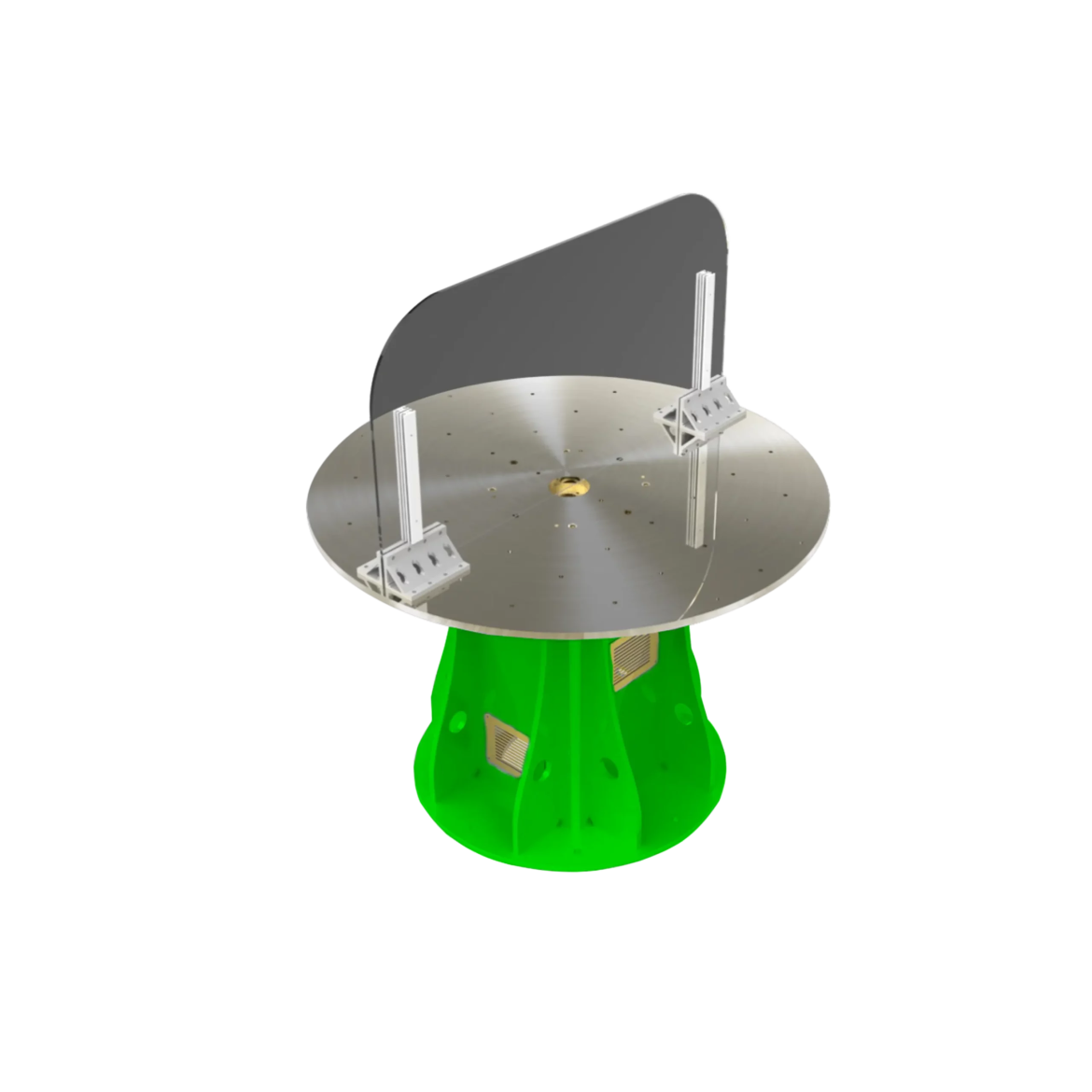

Rotary tables ensure precise positioning of workpieces, allowing welding to be performed in a more convenient position and improving weld quality. Three models are available, featuring different load capacities and rotation speeds: TT1-250-400, TT1-500-400, and TT1-750-400.

Specifications

Parameter

TT1-250-400

TT1-500-400

TT1-750-400

Load capacity (kg):

250

500

750

Table diameter (mm):

400

Rotation speed (°/s):

76.4

67.8

45.3

Repeatability (arcmin):

±1.0

Rotation angle (°):

±360

Eccentricity length (mm):

≤200

Center of gravity distance (mm):

≤200

RV reducer:

27C—157

50C—177

100C—264.6

Total reduction ratio:

157

177

264.6

Servo motor power (kW):

1.0

2.0
