Single-axis U-shaped positioners

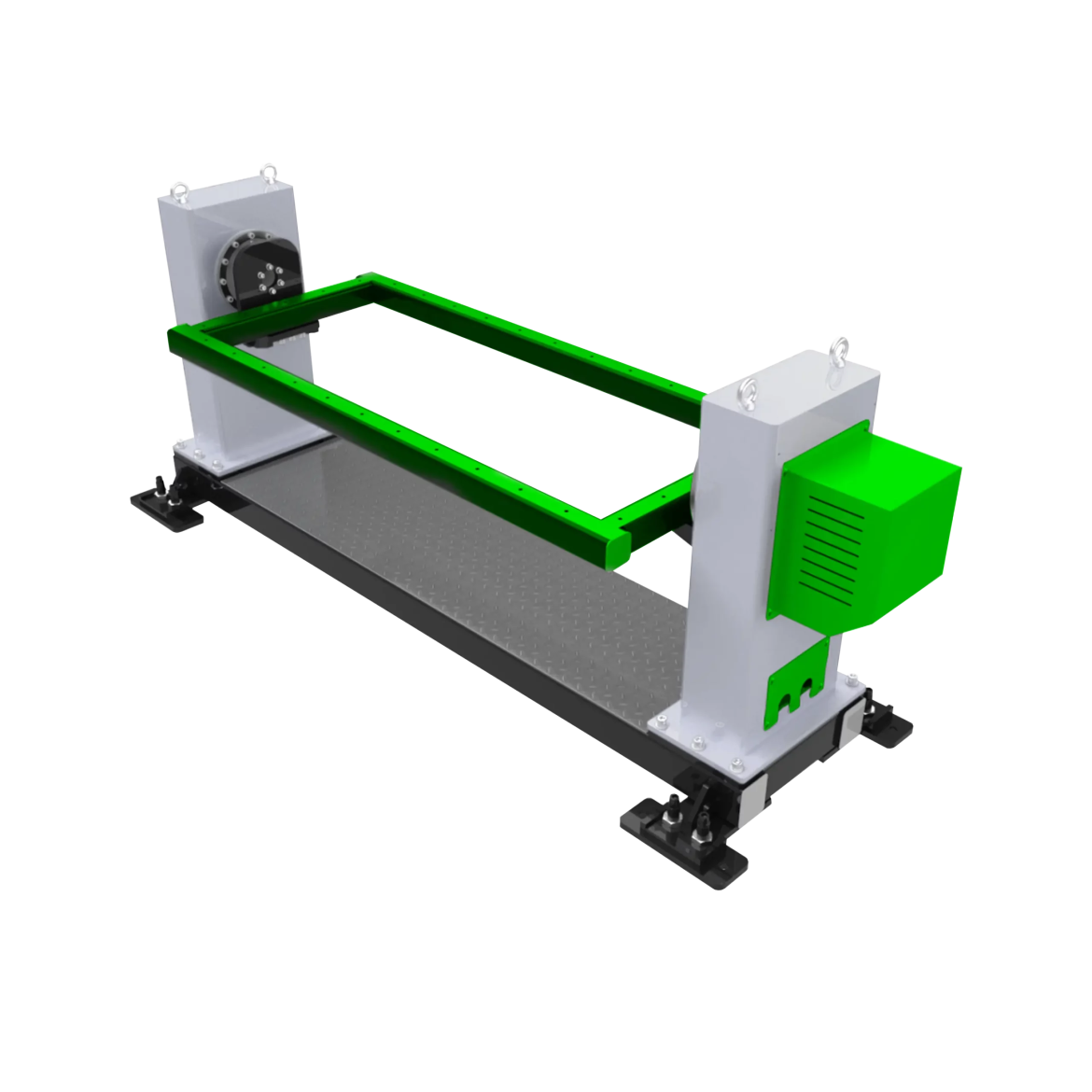

The U1 series single-axis positioners are welding positioning units with ±360° rotation, designed to place workpieces in an optimal welding position. Load capacity: 250–3000 kg. Eight models are available, featuring two frame sizes—1800×800 mm, 2500×800 mm, and 3000×800 mm—depending on the load capacity. The height of the unit from the axis center to the base is 650 mm (for smaller models) or 950 mm (for larger models).

Specifications

Parameter

U1-250-1800/800

U1-500-1800/800

U1-1000-1800/800

U1-250-2500/800

U1-500-2500/800

U1-1000-2500/800

U1-2000-3000/800

U1-3000-3000/800

Load capacity (kg):

250

500

1000

250

500

1000

2000

3000

Height (from axis center to base) (mm):

650

950

Frame size (mm):

1800×800

2500×800

3000×800

Rotation speed (°/s):

78

78

74

78

78

74

64.5

22.63

Repeatability (arcmin):

±1.0

±1.0

±1.2

±1.0

±1.0

±1.2

±1.2

±1.8

Rotation angle:

±360°

Eccentricity length:

≤150 mm

≤100 mm

≤150 mm

≤100 mm

≤100 mm

≤80 mm

≤100 mm

≤80 mm

Center of gravity distance (mm):

≤300

≤200

≤300

≤200

≤200

≤150

≤150

≤150

RV reducer:

40E-153

80E-153

110E-161

40E-153

80E-153

110E-161

320E-185

320E-185

Total reduction ratio:

153

153

161

153

153

161

185

530.34

Servo motor power (kW):

1.5

2.0

3.0

1.5

2.0

3.0

3.0

4.3
