Two-axis U-shaped positioners

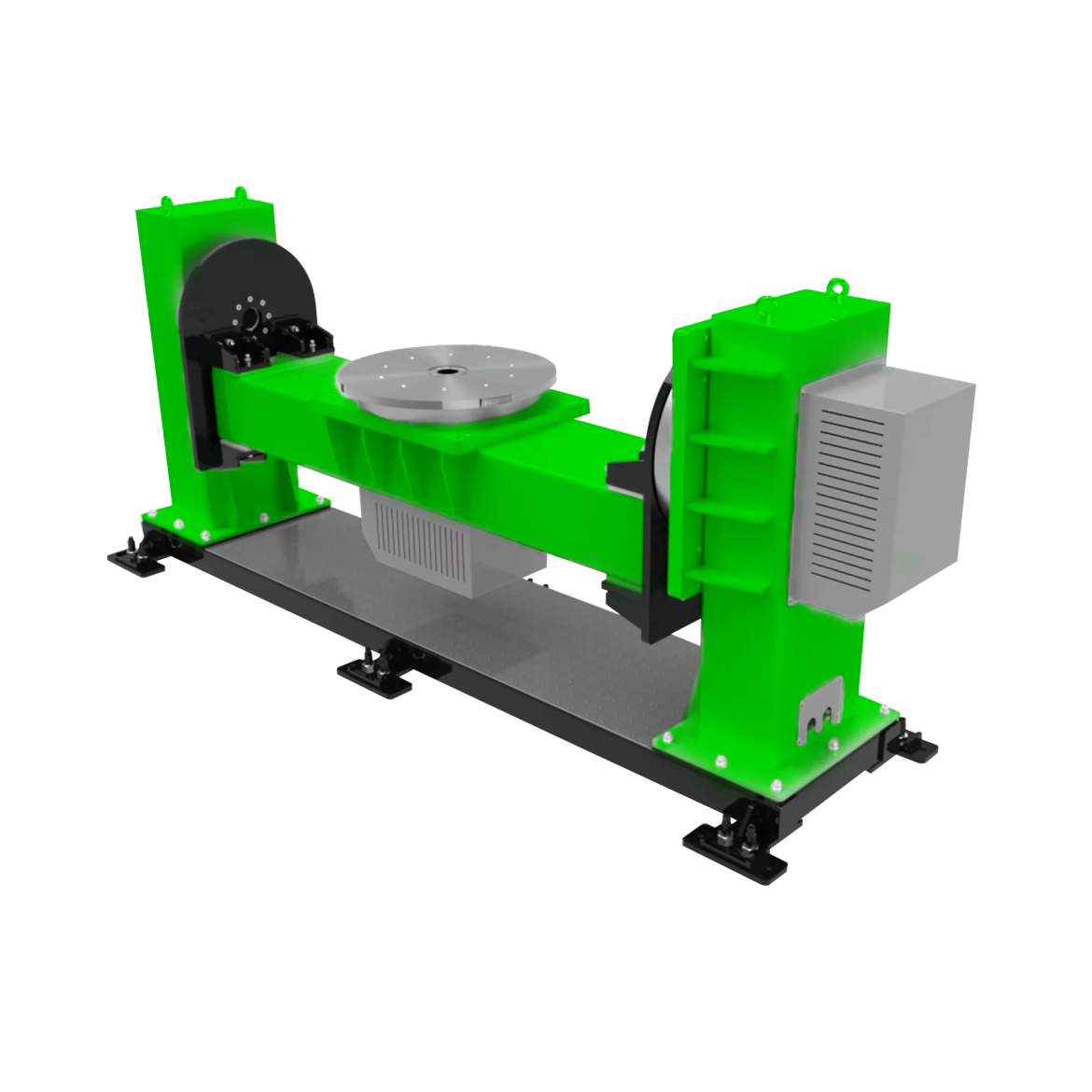

The UT2 series of two-axis positioners are welding positioning units featuring a tilting axis (±90°) and a rotating axis (±360°), designed to place workpieces in an optimal welding position. Load capacity: 250–1000 kg. Six models are available—UT2-250-1200, UT2-500-1200, UT2-250-1400, UT2-500-1400, UT2-1000-1500, and UT2-1000-1600—with table diameters of 1200 mm, 1400 mm, 1500 mm, or 1600 mm, depending on the configuration.

Specifications

Model

UT2-250-1200

UT2-500-1200

UT2-250-1400

UT2-500-1400

UT2-1000-1500

UT2-1000-1600

Load capacity (kg):

250

500

250

500

1000

1000

Table diameter (mm):

1200

1400

1500

1600

Rotation speed (°/s) — tilting axis:

45

42

Rotation speed (°/s) — rotating axis:

67.7

42

Repeatability (arcmin):

±1.0

±1.5

Rotation angle (°):

Tilting axis: ±90° | Rotating axis: ±360°

Eccentricity length (mm):

≤100

Center of gravity distance (mm):

≤200

RV reducer — tilting axis:

100C—264.6

200C—281

RV reducer — rotating axis:

27C—177

50C—177

27C—177

50C—177

200C—281

200C—281

Total reduction ratio — tilting axis:

264.6

281

Total reduction ratio — rotating axis:

157

177

157

177

281

281

Servo motor power (kW) — tilting axis:

3.0

Servo motor power (kW) — rotating axis:

1.5

2.0

1.5

2.0

3.0

3.0
