RM 1100/4 C

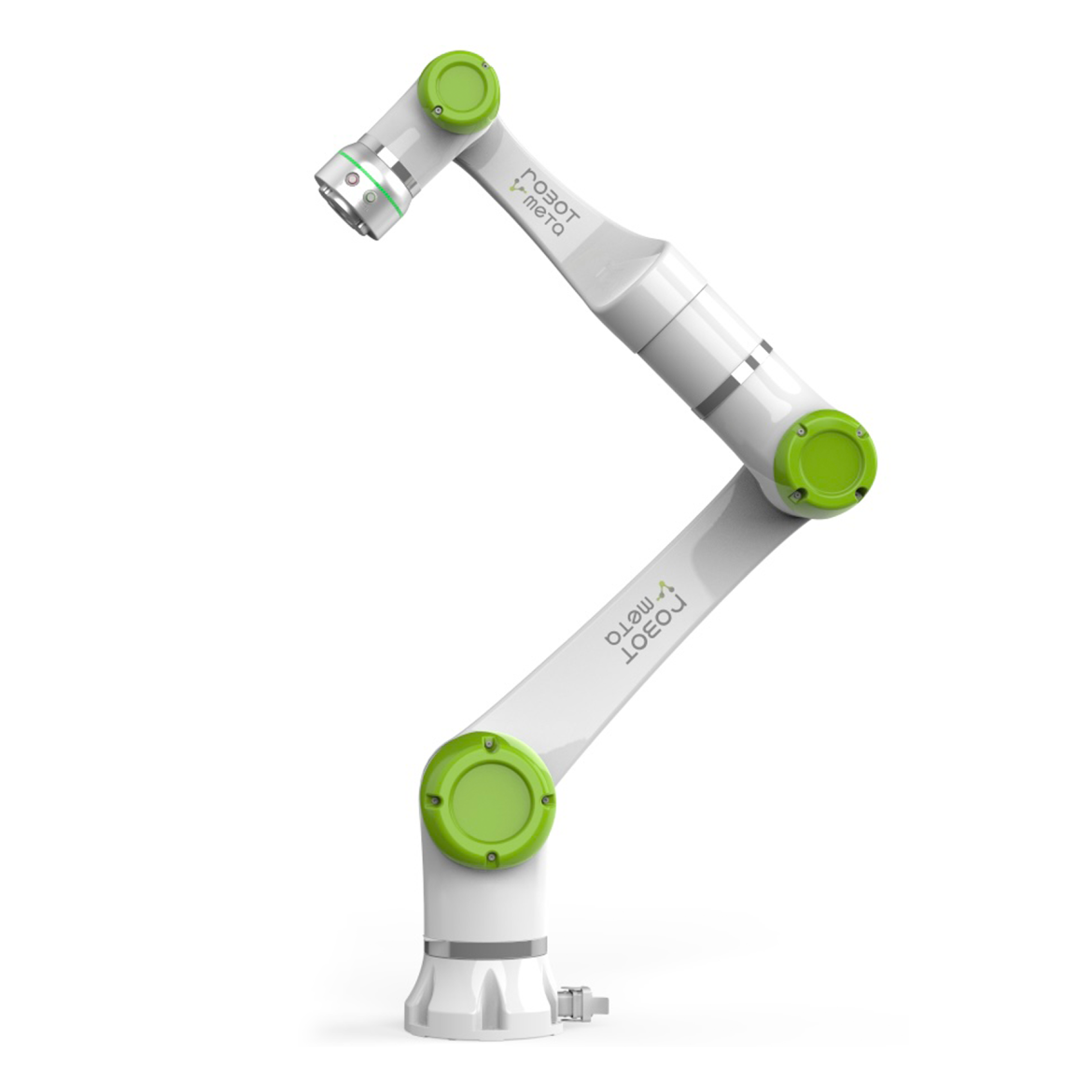

The RM 1100/4 C is a collaborative robot (cobot) with 6 controllable axes, designed for high-speed, high-quality welding. Maximum reach: 1100 mm | Maximum payload: 3.5 kg | Precision: ±0.02 mm. The cobot is equipped with the RMC 203 control system and an intuitive teach pendant, allowing for programming without the need for extensive prior knowledge. Thanks to force sensors and a speed-limiting system, it can operate without safety fencing in close proximity to humans. Manual teaching is also possible—the operator can guide the cobot by hand to define its movement trajectory.

Specifications

Model:

RM 1100/4 C

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

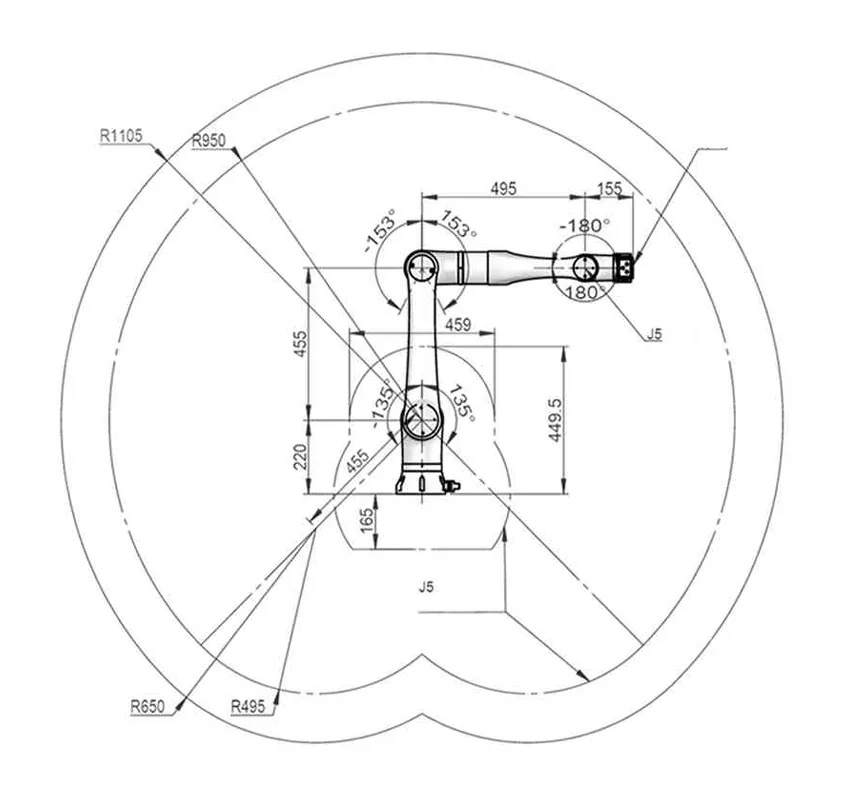

Maximum reach radius:

1100 mm

Maximum payload:

3.5 kg

Repeatability:

±0.02 mm

Mounting type:

Floor, wall, ceiling

Protection class:

IP 54

Controller:

RMC 203

Control system:

Senou Lite

Supply voltage:

220 V

Power consumption (average):

180 kWh

Weight:

26 kg

Operating temperature:

0–50 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−360° / +360° | 180°/s

J2

−360° / +360° | 180°/s

J3

−360° / +360° | 180°/s

J4

−360° / +360° | 180°/s

J5

−360° / +360° | 200°/s

J6

−360° / +360° | 200°/s
