Mobile welding platform RM 1100/4 C

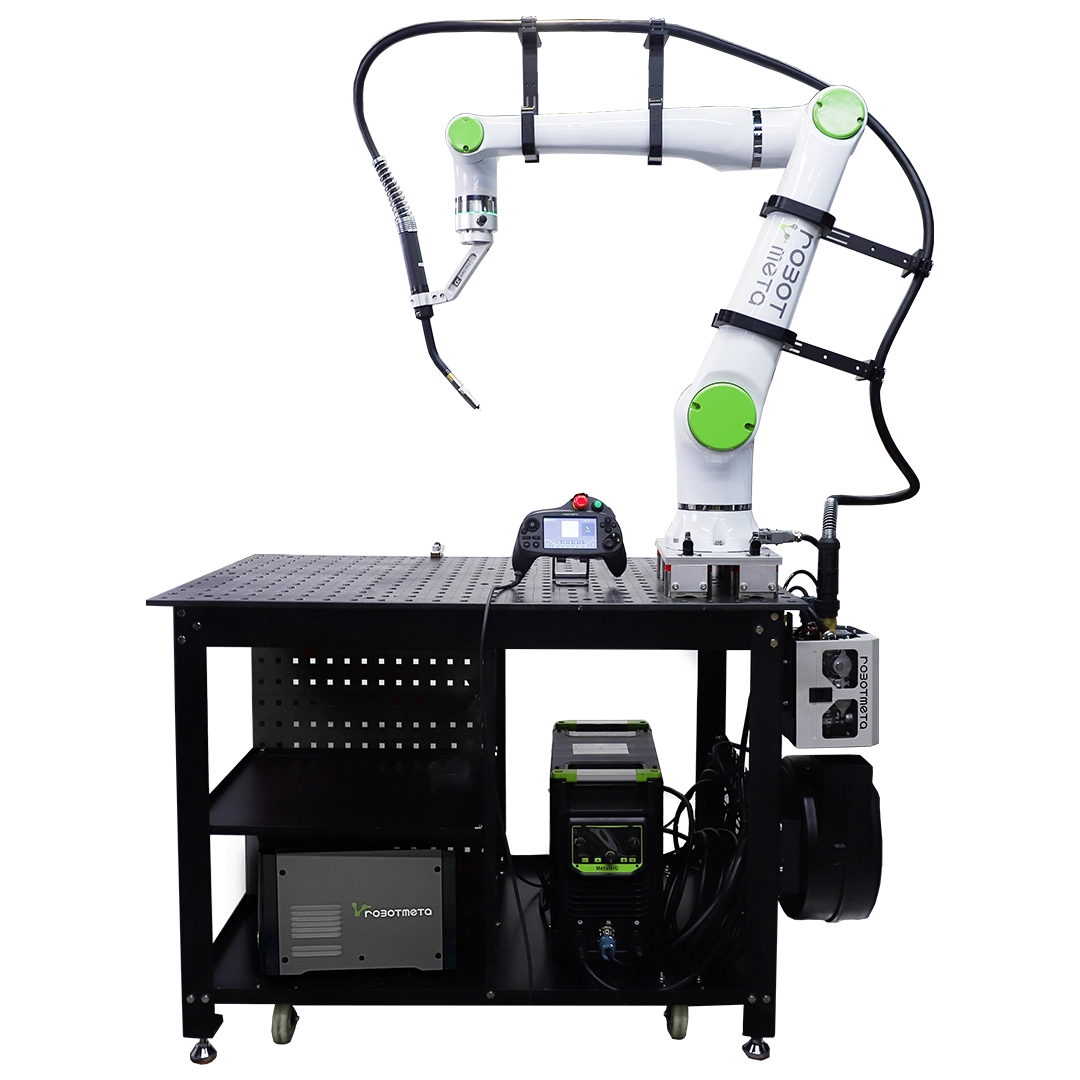

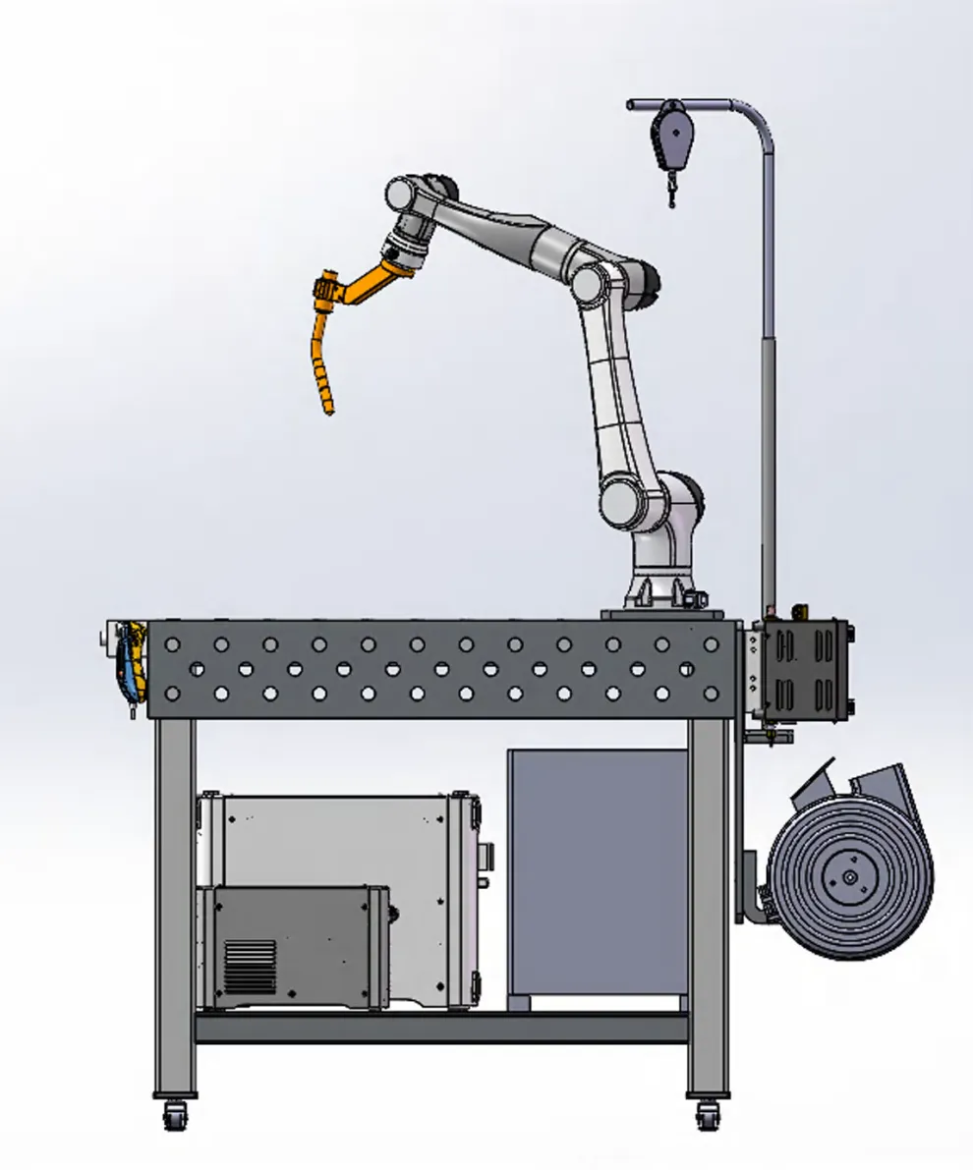

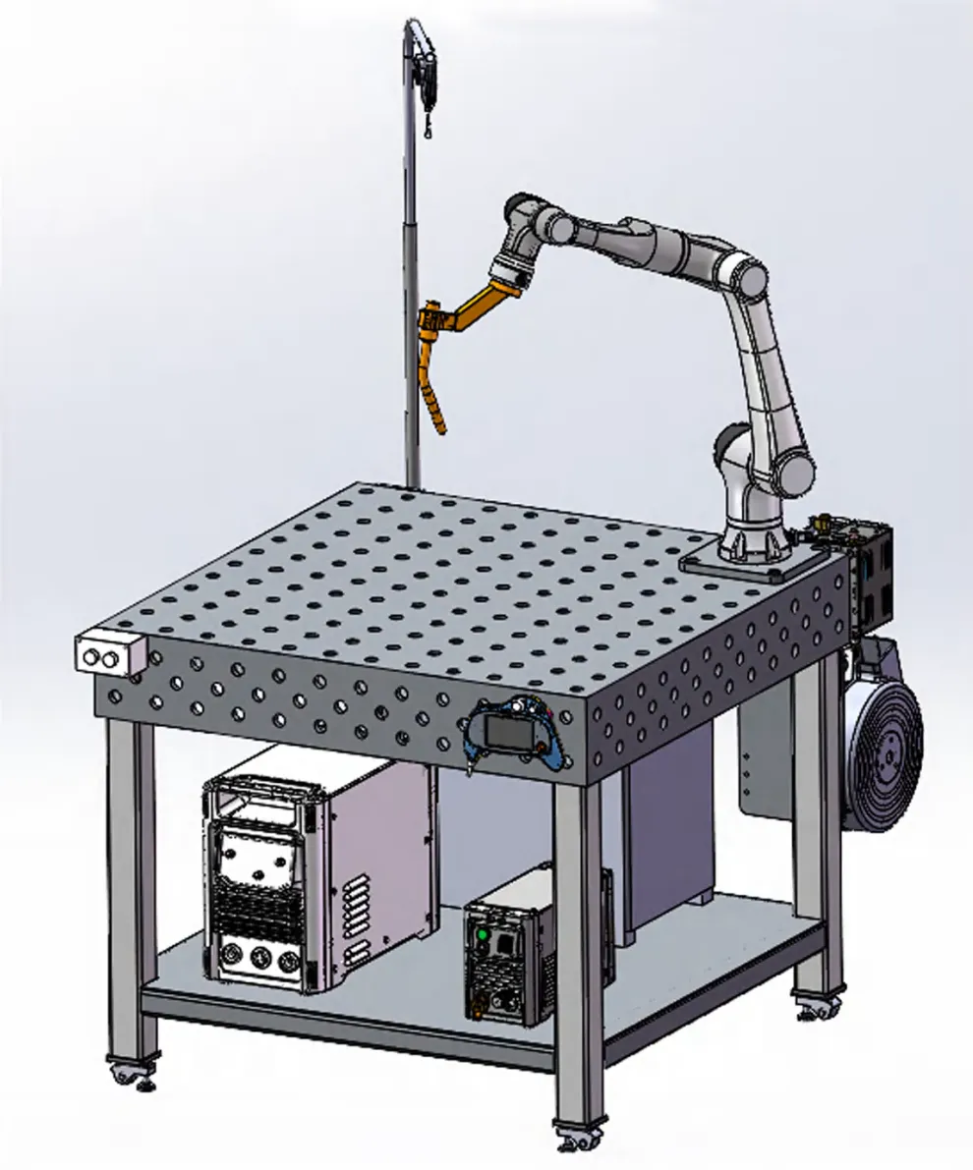

A ready-to-use welding kit featuring the RM 1100/4 C collaborative robot, mounted on a welding table and connected to a MIG welding machine. The system comes fully prepared for operation—no additional integration or configuration is required. A simple control system allows even a complete beginner with no prior knowledge to operate the equipment. This compact, all-in-one cell ensures mobility and optimal use of workshop space.

Specifications

Model:

RM 1100/4 C

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

Maximum reach radius:

1100 mm

Maximum payload:

3.5 kg

Repeatability:

±0.02 mm

Mounting type:

Floor, wall, ceiling

Protection class:

IP 54

Controller:

RMC 203

Control system:

Senou Lite

Supply voltage:

220 V

Power consumption (average):

180 kWh

Weight:

26 kg

Operating temperature:

0–50 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−360° / +360° | 180°/s

J2

−360° / +360° | 180°/s

J3

−360° / +360° | 180°/s

J4

−360° / +360° | 180°/s

J5

−360° / +360° | 200°/s

J6

−360° / +360° | 200°/s
