RM 1470/10 HW

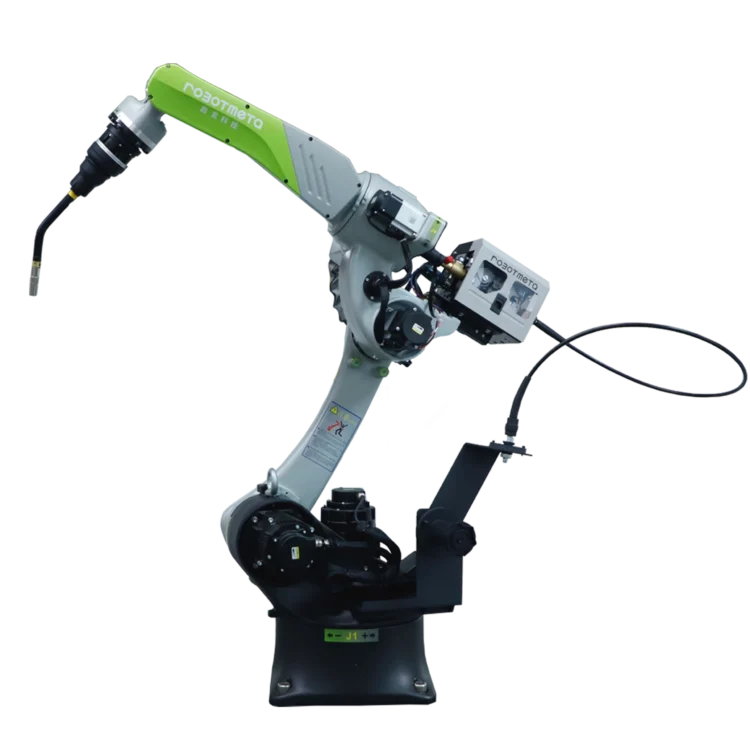

The RM 1470/10 HW is an industrial welding robot with 6 controllable axes (J1–J6), designed for the automation of welding processes in manufacturing. Maximum reach: 1474 mm | Maximum payload: 10 kg. It can be mounted on the floor or the ceiling, allowing the setup to be adapted to the specific production facility.

Specifications

Model:

RM 1470/10 HW

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

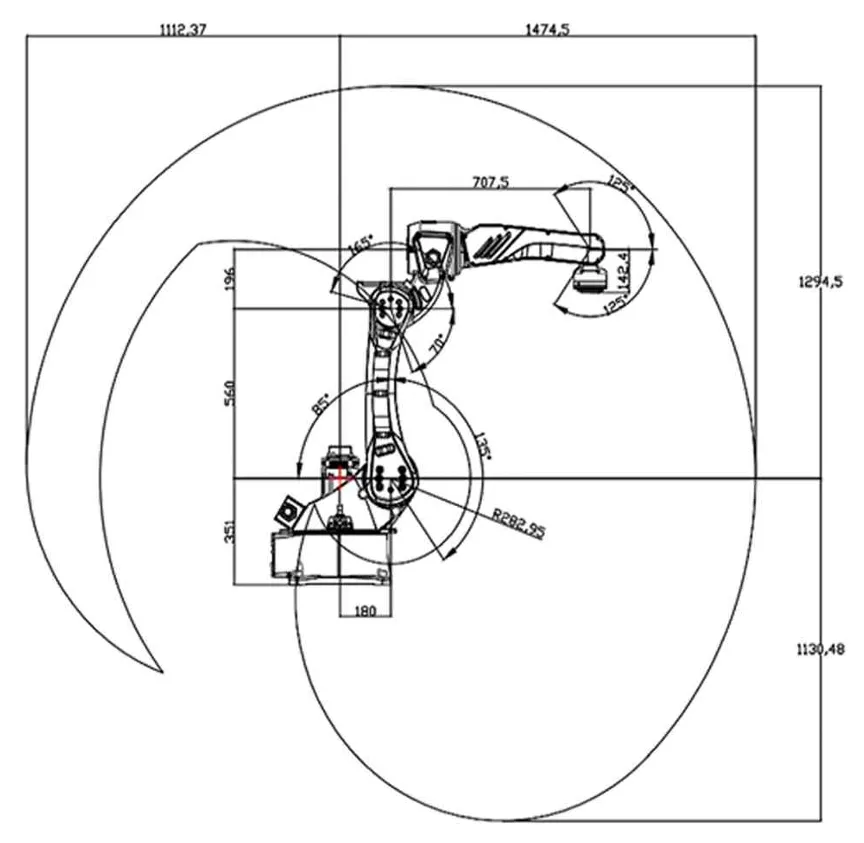

Maximum reach radius:

1474 mm

Maximum payload:

10 kg

Repeatability:

±0.05 mm

Mounting type:

Floor, ceiling

Protection class:

IP 54

Controller:

RMC 201 / RMC 203

Control system:

Senou Lite

Weight:

172 kg

Operating temperature:

0–45 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−173° / +173° | 240°/s

J2

−110° / +75° | 225°/s

J3

−75° / +85° | 247°/s

J4

−175° / +175° | 285°/s

J5

−128° / +128° | 278°/s

J6

−360° / +360° | 1590°/s
