RM 1800/25 HW

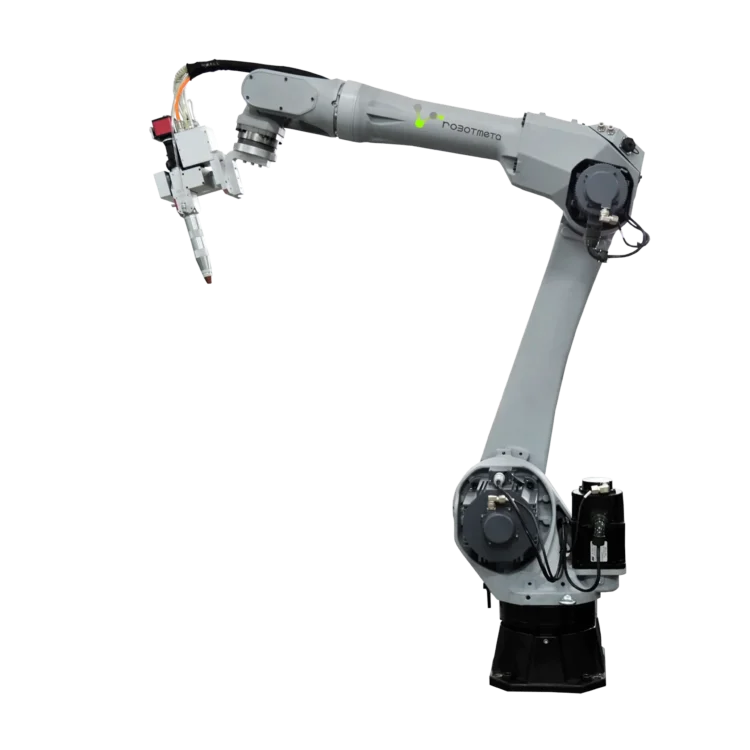

The RM 1800/25 HW is an industrial laser welding robot with 6 controllable axes (J1–J6), specifically designed for the automation of high-power laser welding processes in manufacturing. Maximum reach: 1808 mm | Maximum payload: 25 kg. It can be mounted on the floor, wall, or ceiling, allowing the setup to be adapted to the specific production facility.

Specifications

Model:

RM 1800/25 HW

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

Maximum reach radius:

1808 mm

Maximum payload:

25 kg

Repeatability:

±0.08 mm

Mounting type:

Floor, wall, ceiling

Protection class:

IP 67

Controller:

RMC 201 / RMC 203

Control system:

Senou Lite

Supply voltage:

220 V

Power consumption (average):

3 kW

Weight:

198 kg

Operating temperature:

0–45 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

±180° | 175°/s

J2

−125° / +90° | 162°/s

J3

−77° / +202° | 173°/s

J4

±180° | 417°/s

J5

±125° | 336°/s

J6

±360° | 456°/s
