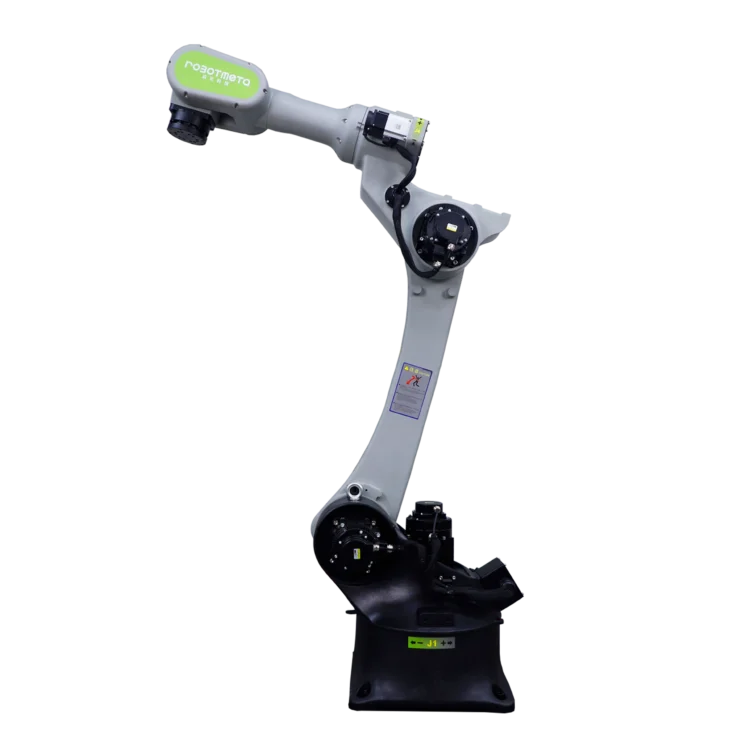

RM 1880/25 HW

Model:

RM 1880/25 HW

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

Maximum reach radius:

1880 mm

Maximum payload:

25 kg

Repeatability:

±0.05 mm

Mounting type:

Floor, ceiling

Protection class:

IP 67

Controller:

RMC 201 / RMC 203

Control system:

Senou Lite

Weight:

210 kg

Operating temperature:

0–45 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−170° / +170° | 150°/s

J2

−95° / +80° | 120°/s

J3

−70° / +90° | 120°/s

J4

−170° / +170° | 250°/s

J5

−115° / +115° | 250°/s

J6

−360° / +360° | 380°/s
