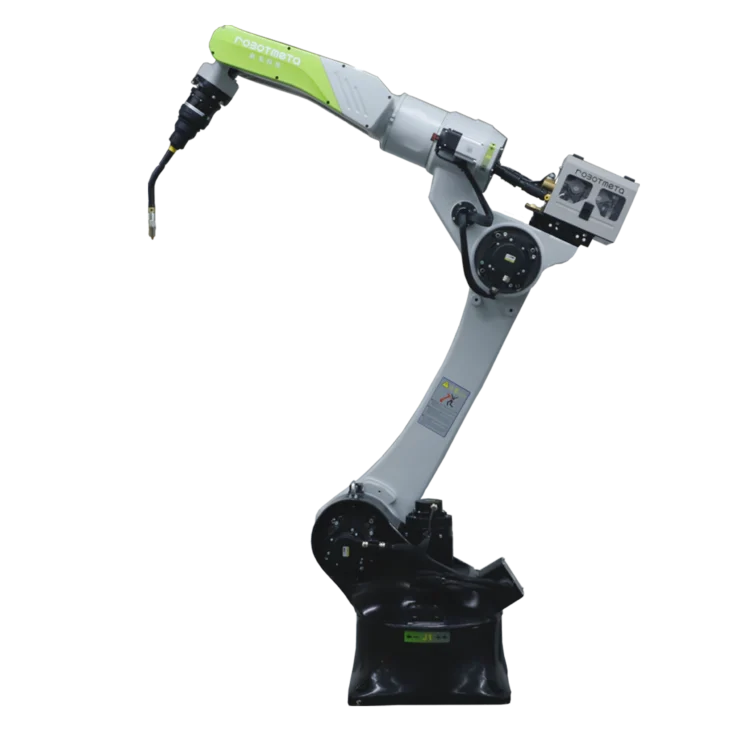

RM 2000/10 HW

Model:

RM 2000/10 HW

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

Maximum reach radius:

2000 mm

Maximum payload:

10 kg

Repeatability:

±0.05 mm

Mounting type:

Floor, ceiling

Protection class:

IP 54

Controller:

RMC 203

Control system:

Senou Lite

Weight:

210 kg

Operating temperature:

0–45 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−170° / +170° | 150°/s

J2

−95° / +80° | 120°/s

J3

−70° / +90° | 120°/s

J4

−170° / +170° | 280°/s

J5

−120° / +120° | 280°/s

J6

−360° / +360° | 1280°/s
