RM 1470/12 HW

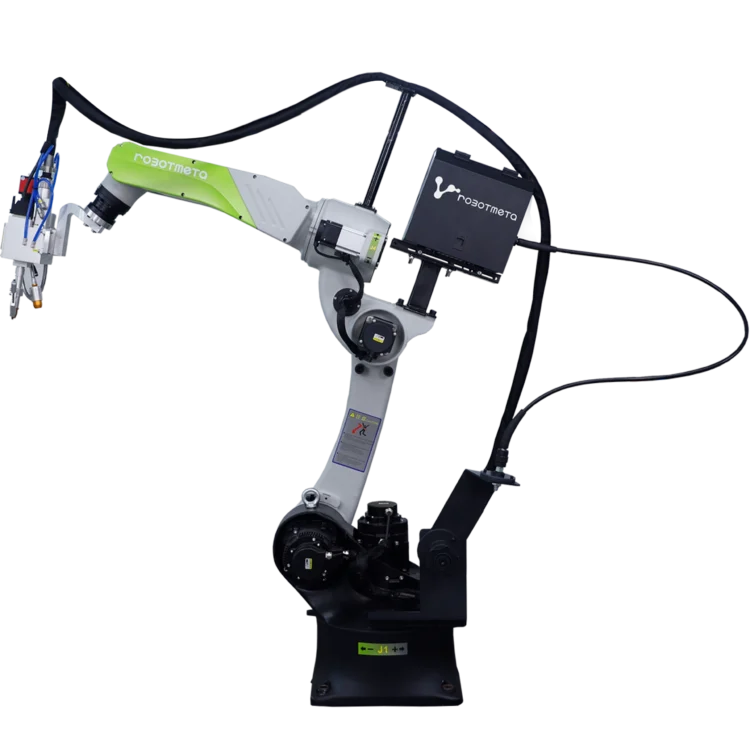

The RM 1470/12 is an industrial welding robot with 6 controllable axes (J1–J6), specifically designed for the automation of laser welding processes in manufacturing. Maximum reach: 1475 mm | Maximum payload: 12 kg. The robot ensures precise movement and consistent weld quality, which is particularly important for laser welding applications. It can be mounted on the floor or the ceiling, allowing the setup to be adapted to the specific production facility.

Specifications

Model:

RM 1470/12

Number of controlled axes:

6 (J1, J2, J3, J4, J5, J6)

Maximum reach radius:

1475 mm

Maximum payload:

12 kg

Repeatability:

±0.05 mm

Mounting type:

Floor, ceiling

Protection class:

IP 54

Controller:

RMC 203

Control system:

Senou

Weight:

172 kg

Operating temperature:

0–45 °C

Relative humidity:

20–80% (non-condensing)

Axis Motion Specification

Axis

Range of motion / Max. speed

J1

−165° / +165° | 248°/s

J2

−135° / +85° | 196°/s

J3

−70° / +165° | 213°/s

J4

−170° / +170° | 288°/s

J5

−125° / +125° | 288°/s

J6

−360° / +360° | 1280°/s
