LX3015FG

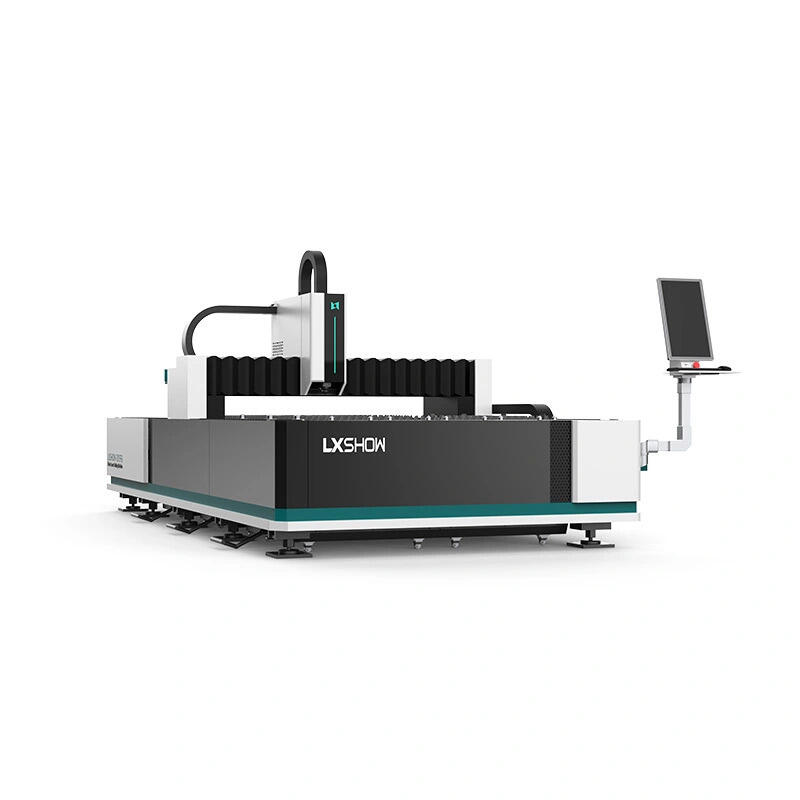

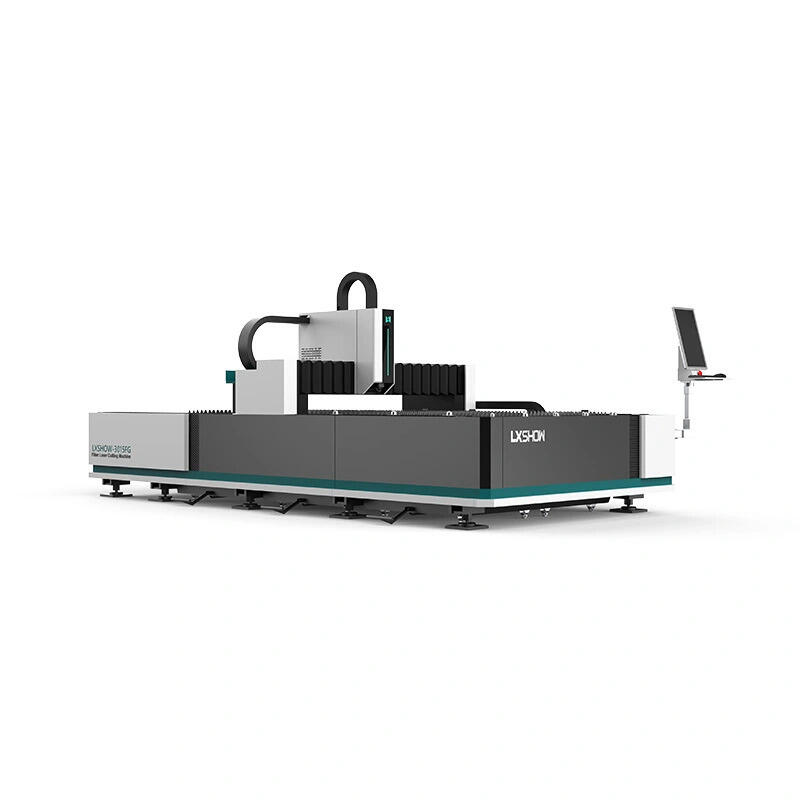

LX3015FG – CNC metal sheet cutting machine. A brand-new, advanced, high-end fiber laser cutting machine (1000–30,000 W). An open-type machine with a single work table and a compact design. Dimensions: 1500 x 3000 mm; sectional work table.

Specifications

Model number:

LX3015FG

Laser source power:

1000 - 30000W ( IPG/MAX/RAYCUS/JPT )

Work area:

1500 x 3000 mm (other sizes available upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
