LX3015FL

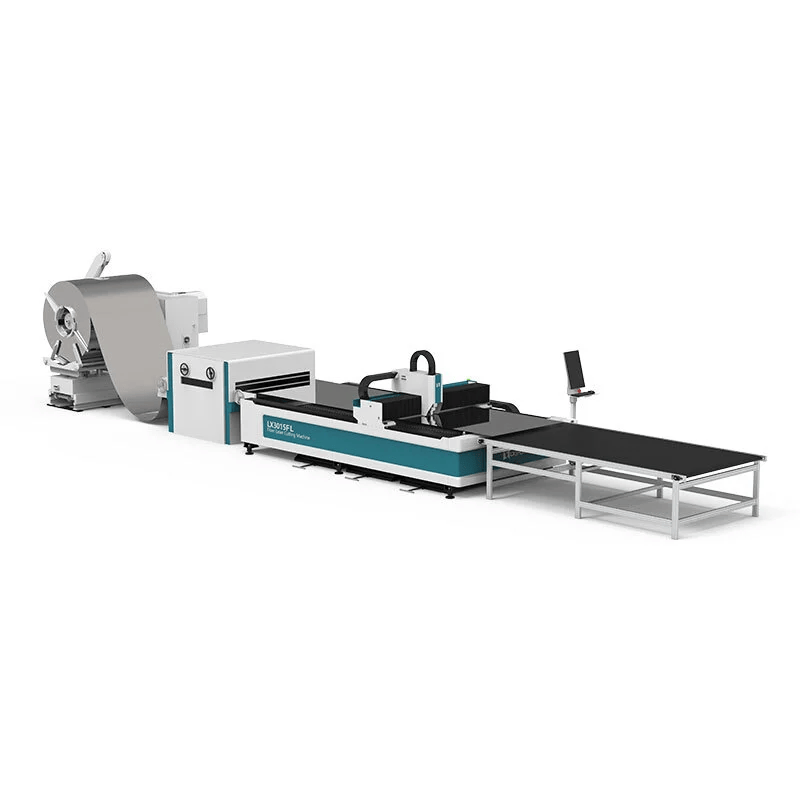

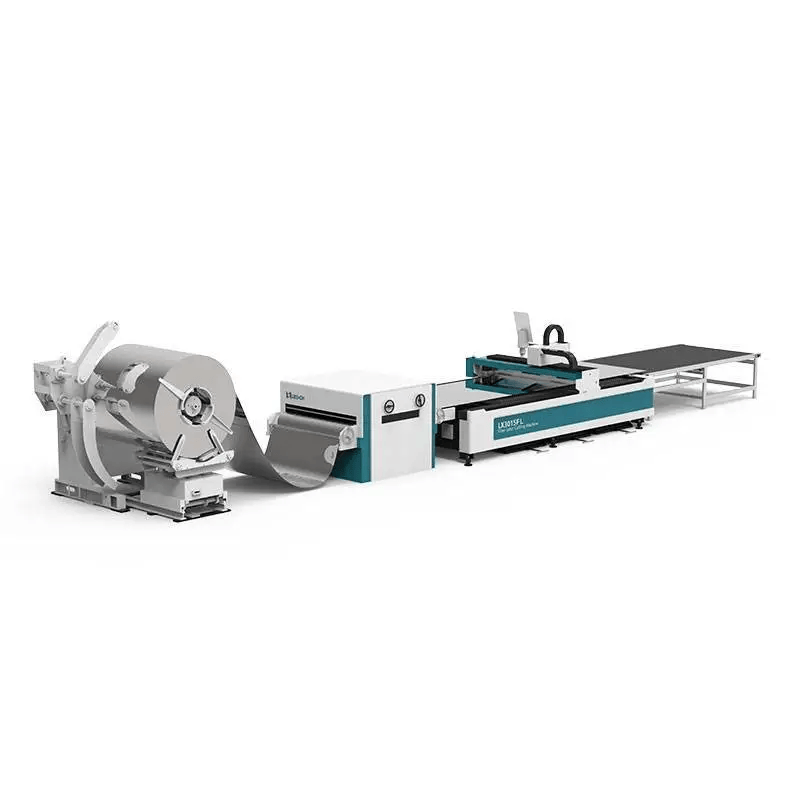

LX3015FL-CNC automated coil-fed metal laser cutting line. Laser cutting power options: 1,500 to 12,000 W. A fully integrated production system combining coil uncoiling, material straightening, high-precision cutting, and automatic part unloading onto a conveyor. Dimensions: 1,500 x 3,000 mm (or customizable upon request); equipped with a dual cutting gantry for maximum productivity.

Specifications

Model number:

LX3015FL

Laser source power:

1500 - 12000W ( IPG/MAX/RAYCUS/JPT )

Work area:

1500 x 3000 mm (other sizes available upon request)

Positioning accuracy:

±0.02mm

Max. travel speed:

140m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
