LX6015FLD

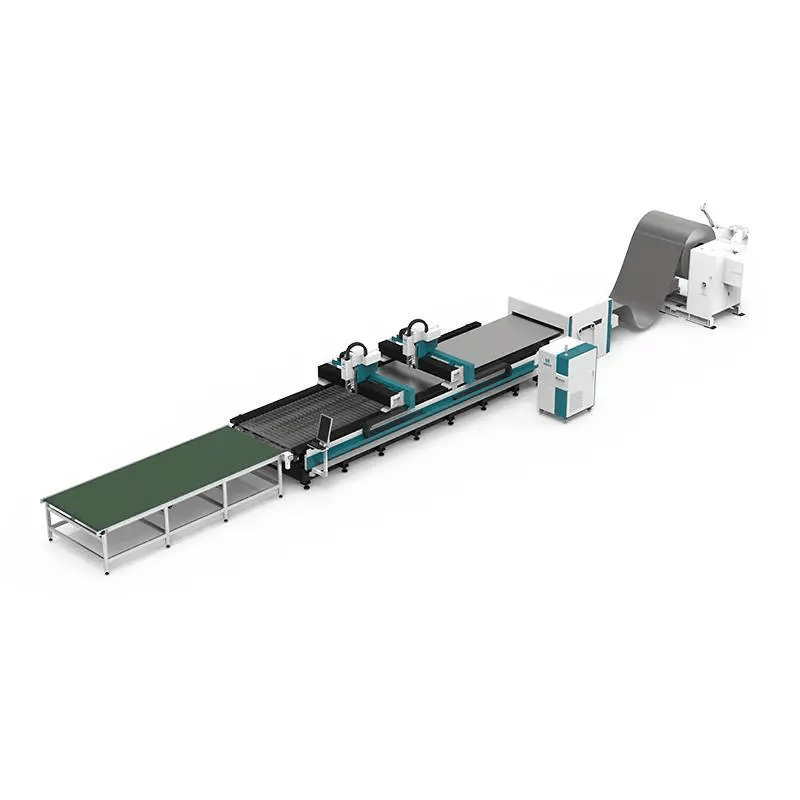

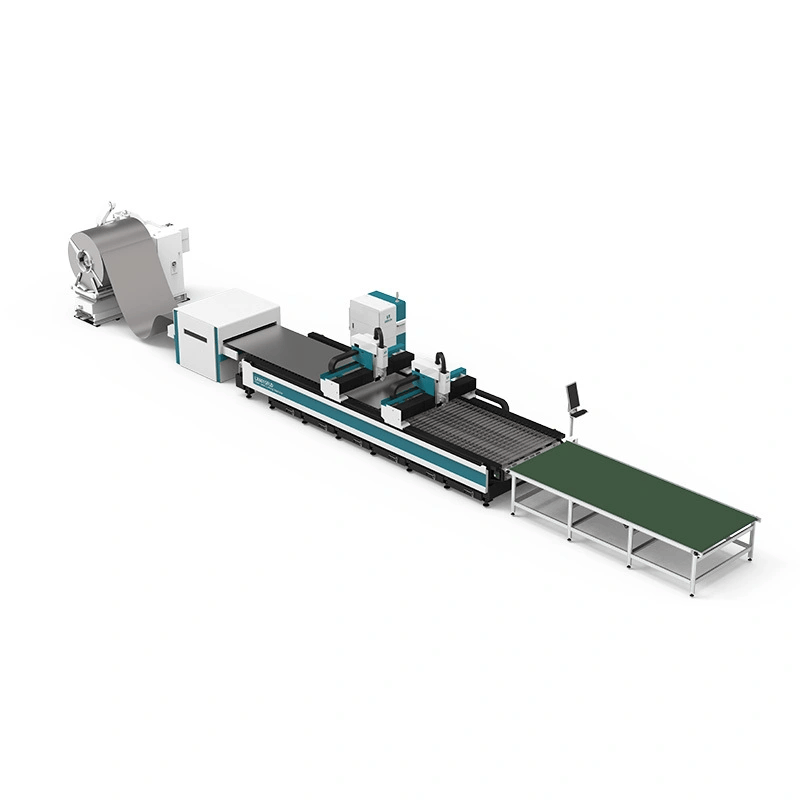

LX6015FLD-CNC automated coil-fed metal laser cutting line. Laser cutting power options: 6,000 to 10,000 W. A fully integrated production system combining coil uncoiling, material straightening, high-precision cutting, and automatic part unloading onto a conveyor. Dimensions: 1,500 x 6,000 mm (or customizable upon request); equipped with a dual cutting gantry for maximum productivity.

Specifications

Model number:

LX6015FLD

Laser source power:

6000 - 10000W ( IPG/MAX/RAYCUS/JPT )

Work area:

1500 x 6000 mm (other sizes upon request)

Positioning accuracy:

±0.02mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source

Features
