LX6020DHT

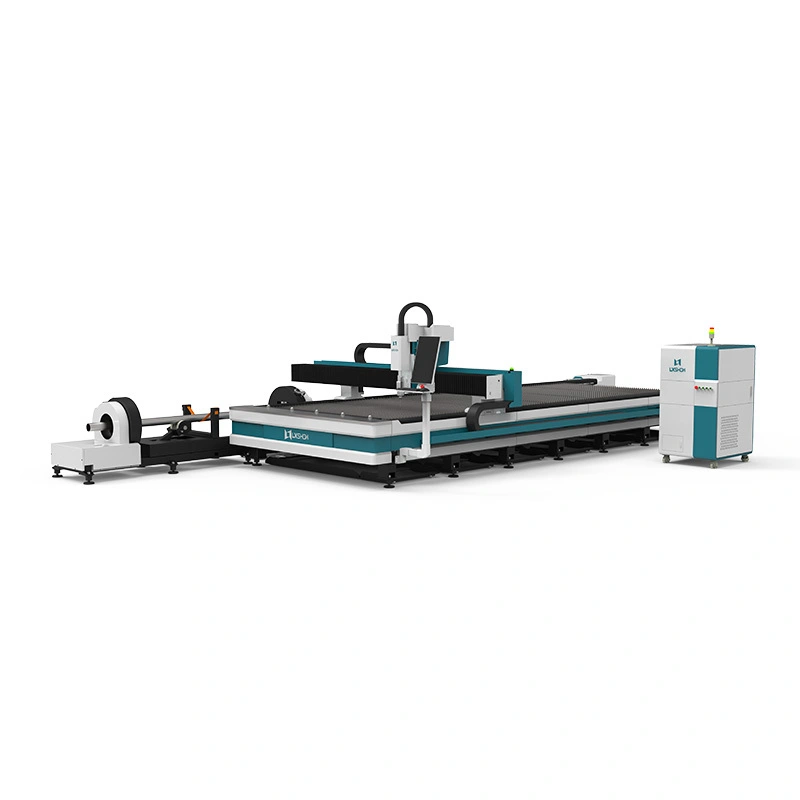

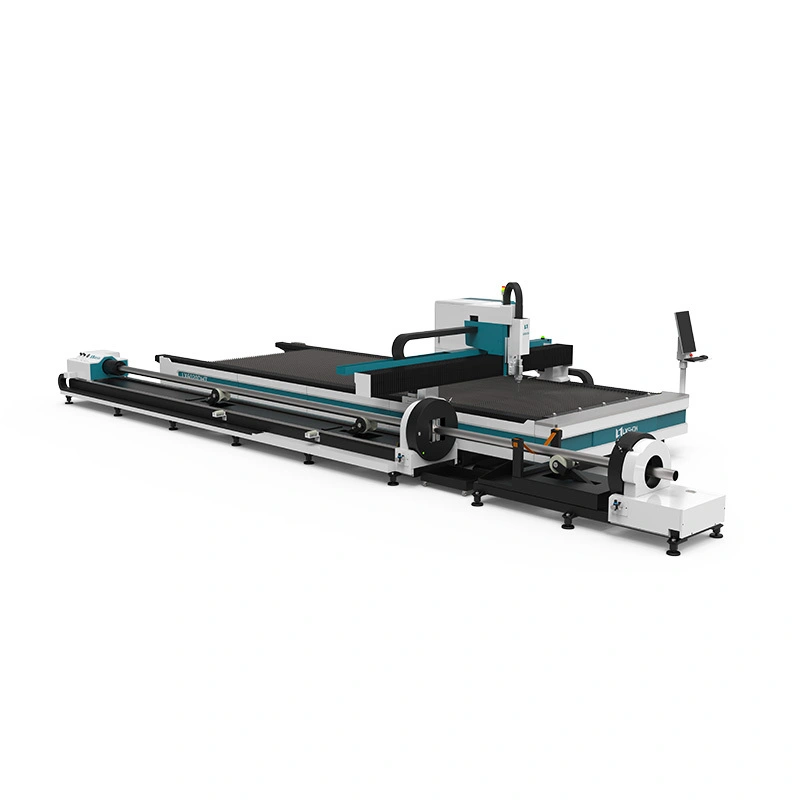

The LX6020DHT is a fiber laser cutting machine for metal processing, featuring a large working area of ​​2000 × 6000 mm. It is well-suited for manufacturers who need to process large-sized parts or cut multiple components simultaneously. With laser source power options ranging from 1 to 6 kW, the configuration can be tailored to specific requirements. The machine offers a positioning accuracy of ±0.01 mm and a cutting accuracy of ±0.02 mm, ensuring clean cuts and consistent parts throughout an entire production batch.

Specifications

Model number :

LX6020DHT

Laser source power :

1 000 - 6 000W

Working area :

2000 × 6000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
