LX3015PTW

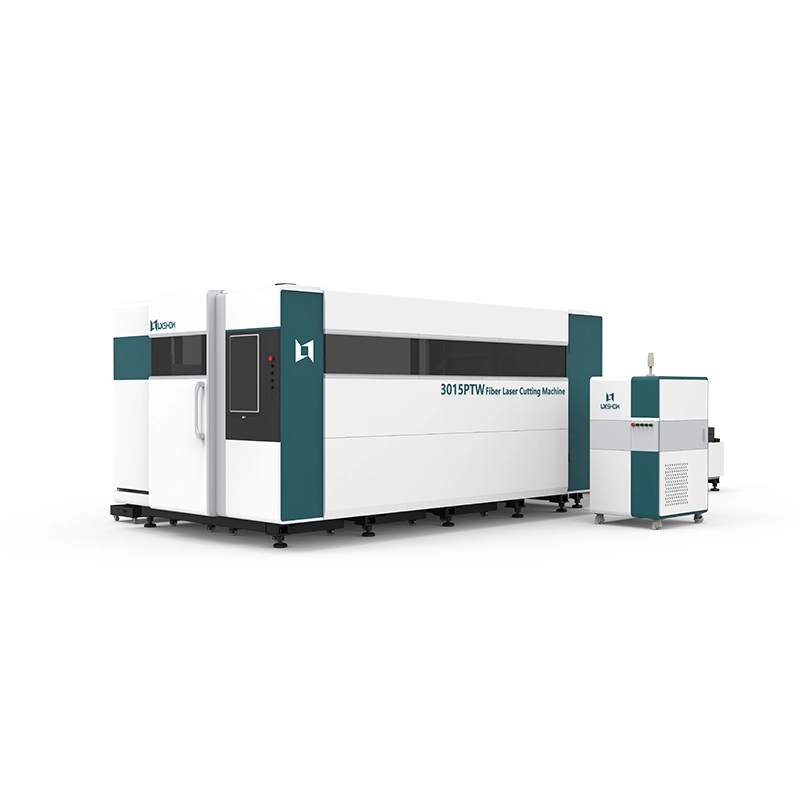

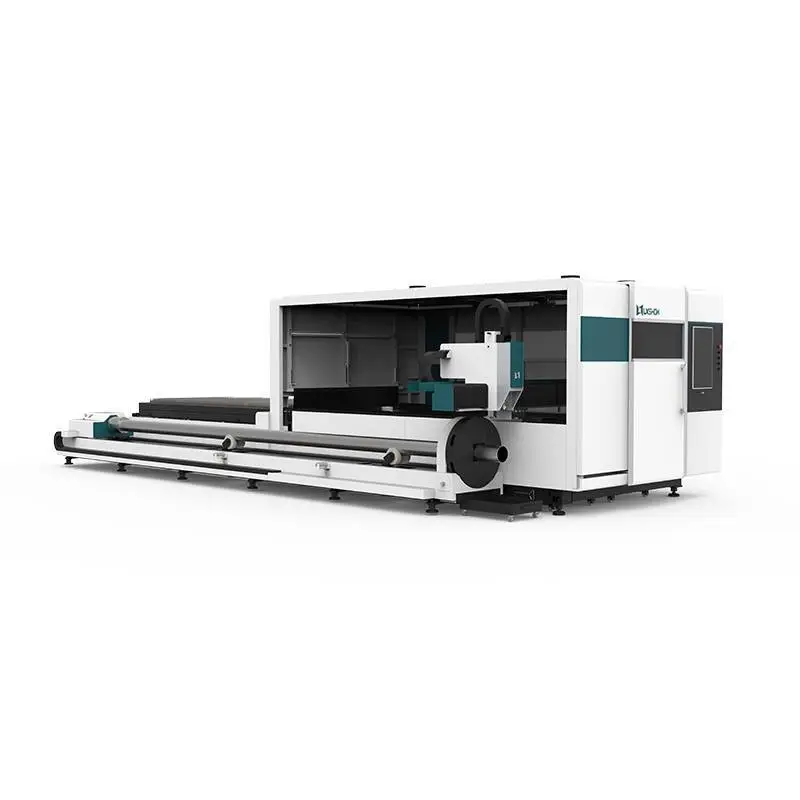

LX3015PTW is a fiber laser cutting machine that combines metal sheet and tube processing in one machine. The working area is 1500 × 3000 mm, with other sizes available on request. The exchange table lets you load the next sheet while the previous one is still being cut.Laser source power ranges from 3 to 12 kW, so you can choose the configuration that fits your production needs. The maximum running speed is 120 m/min and acceleration reaches 1.5G, which shortens processing time. Repeat positioning accuracy is ±0.02 mm.

Specifications

Model number :

LX3015PTW

Laser source power :

1 000 - 12 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
