LX3015FT

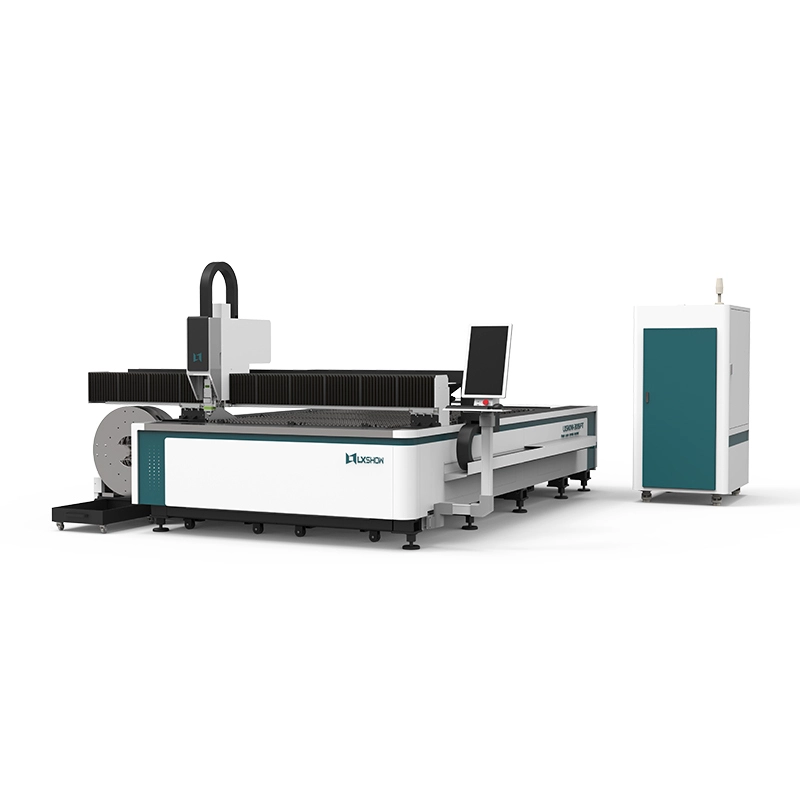

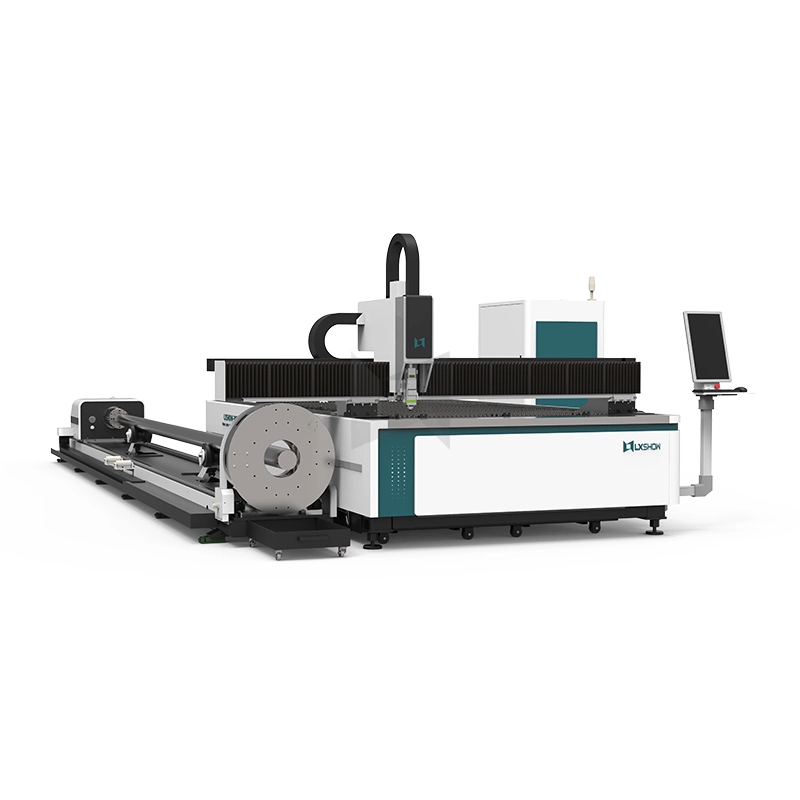

The LX3015FT is a fiber laser cutting machine capable of cutting both metal sheets and pipes. It is equipped with a rotary device for pipe processing and features an automatic pneumatic clamping system that quickly centers and secures pipes without causing damage. An intelligent pipe support system helps prevent the deformation of long pipes during the cutting process.

Specifications

Model number :

LX3015FT

Laser source power :

1 000 - 20 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
