LX3015PHOT

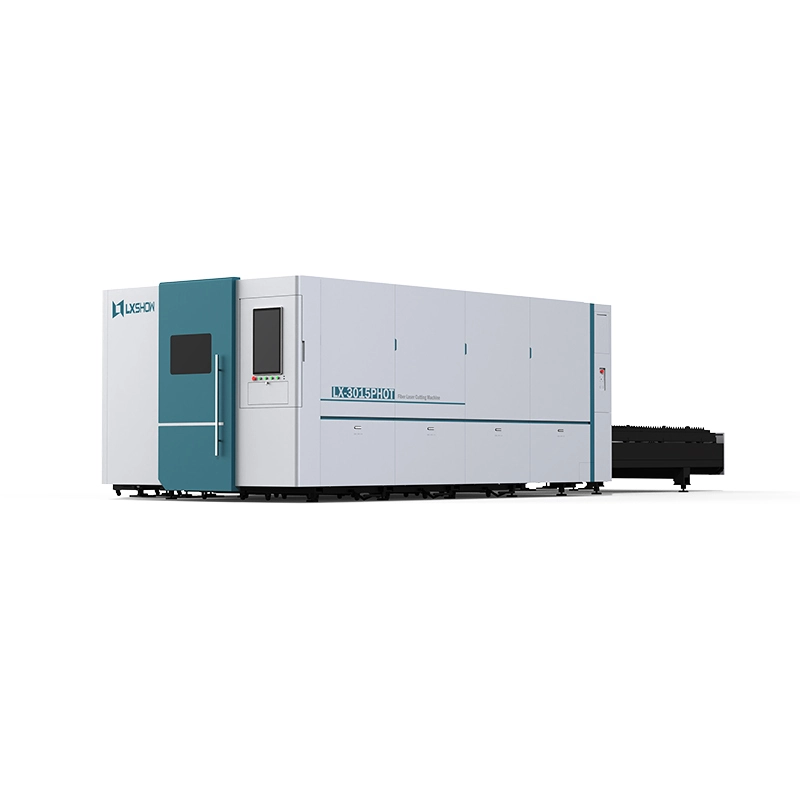

The LX3015PHOT is a high-power fiber laser cutting machine designed for metal sheets and pipes. The machine features a fully enclosed protective housing and is equipped with a pallet changer, allowing the next sheet to be prepared while the previous one is being cut. This full enclosure ensures safe operation with the high-power laser, protecting both the operator and the working environment.

Specifications

Model number :

LX3015PHOT

Laser source power :

1 000 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
