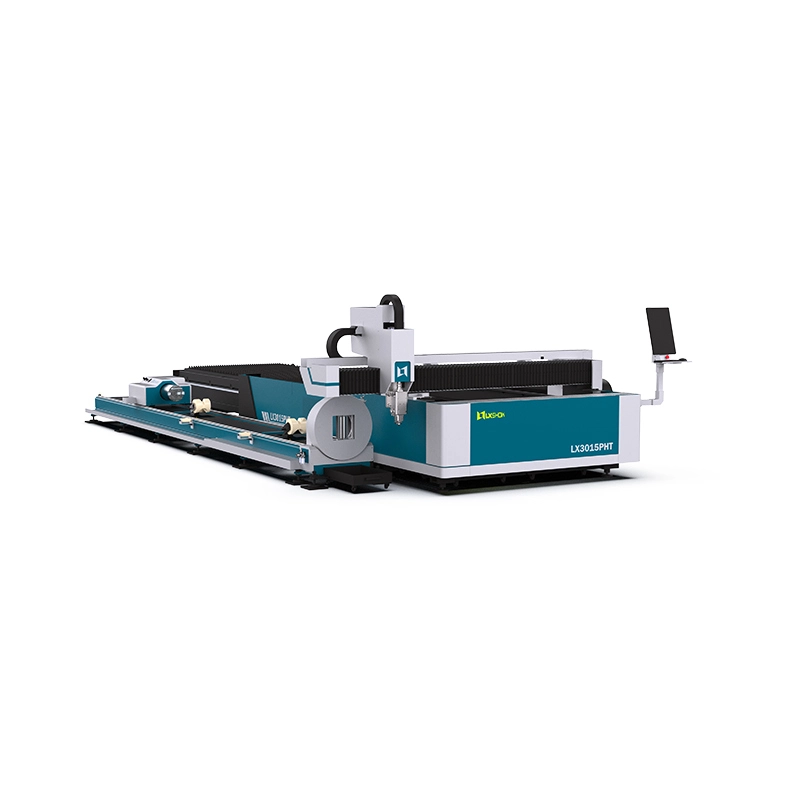

LX3015PHT

The LX3015PHT is a CNC fiber laser cutting machine designed to cut both metal plates and tubes in a single machine. The exchange table shortens idle time between jobs, since the next sheet can be prepared while the previous one is being cut, which makes the machine a good fit for metalworking shops, manufacturers of metal structures and tube products, and companies that process both sheets and tubes.

Specifications

Model number :

LX3015PHT

Laser source power :

1 000 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC

Features
