LX3015FHT

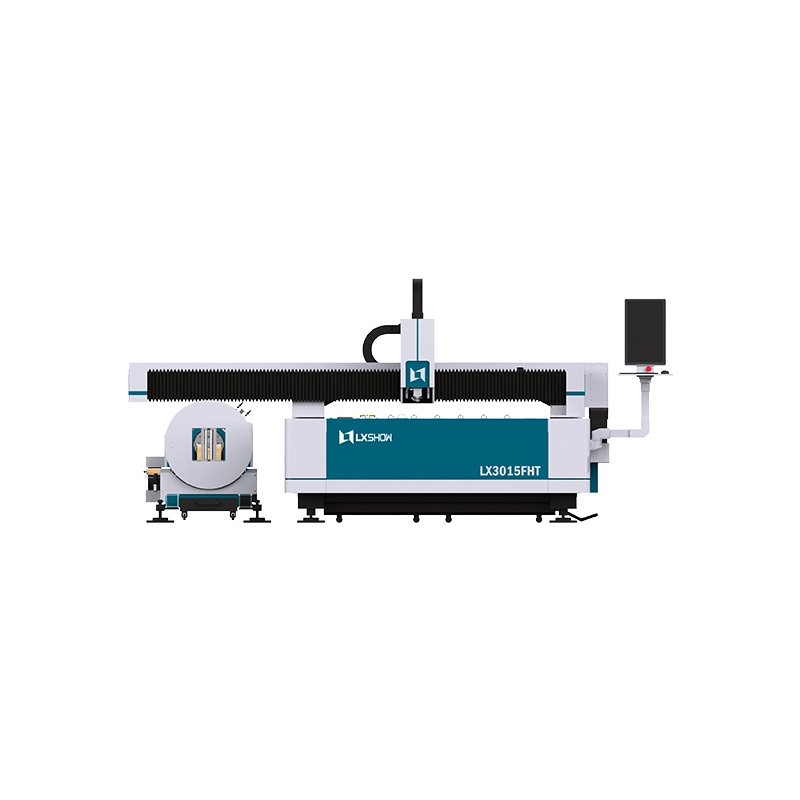

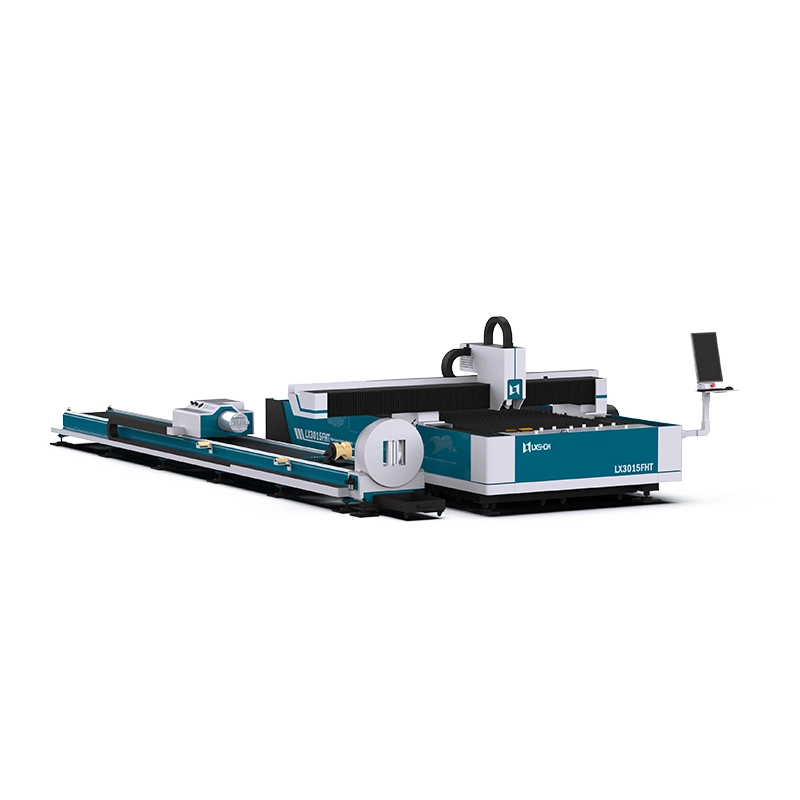

The LXSHOW 3015FHT is a high power CNC fiber laser cutting machine with a laser source of up to 30 kW, designed to cut both metal sheets and tubes in a single machine. It suits metalworking shops, manufacturers of metal structures and tube products, and companies that need fast, powerful laser cutting for both thinner and thicker metal materials.

Specifications

Model number :

LX3015FHT

Laser source power :

1 500 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
