LX6015FCT

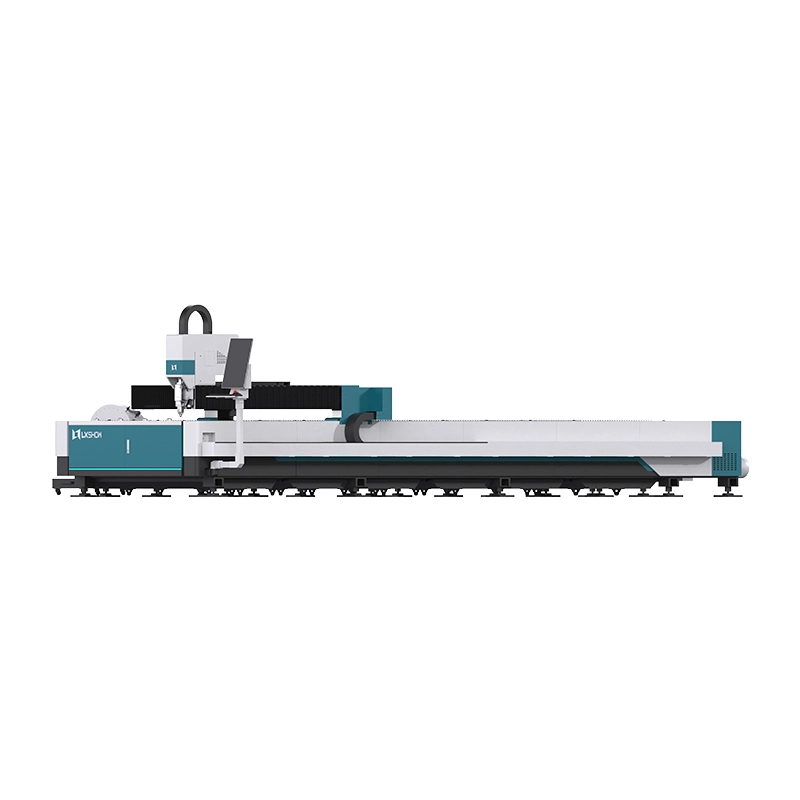

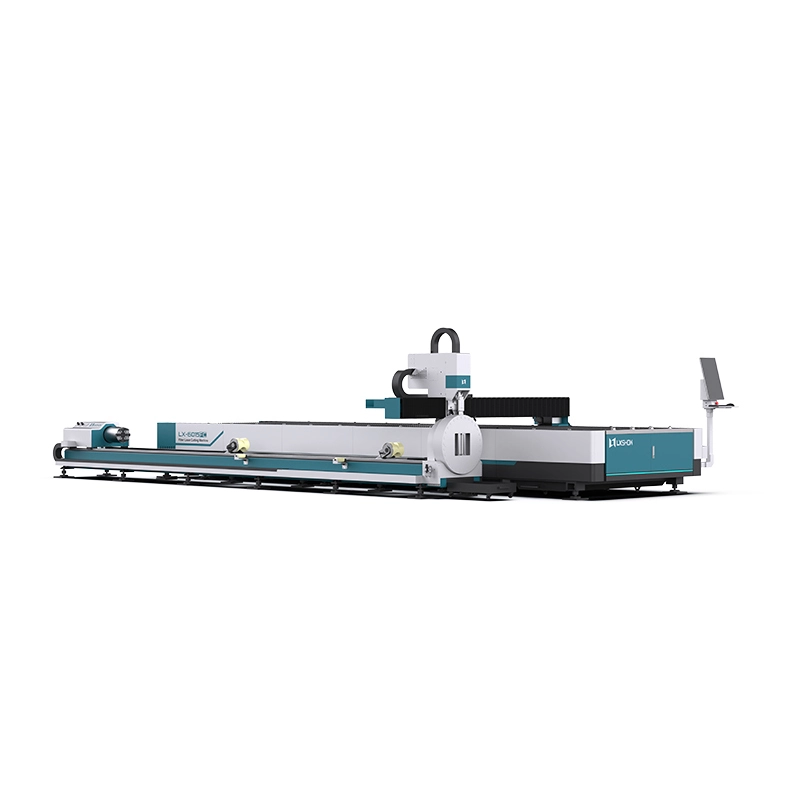

LX6015FCT is a single-platform fiber laser cutting machine designed to cut both metal sheets and tubes in a single machine. It is available with JPT, Raycus, MAX, nLIGHT and IPG laser sources with power up to 15 kW, and the focused laser beam delivers high cutting precision and fast operation. It suits metalworking shops, manufacturers of metal structures and tube products, and companies that process both sheets and tubes

Specifications

Model number :

LX6015FCT

Laser source power :

1 000 - 15 000W ( IPG/MAX/RAYCUS/JPT )

Work area :

1500 × 6000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.01mm

Cutting precision :

±0.01mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
