LX3015HCOW

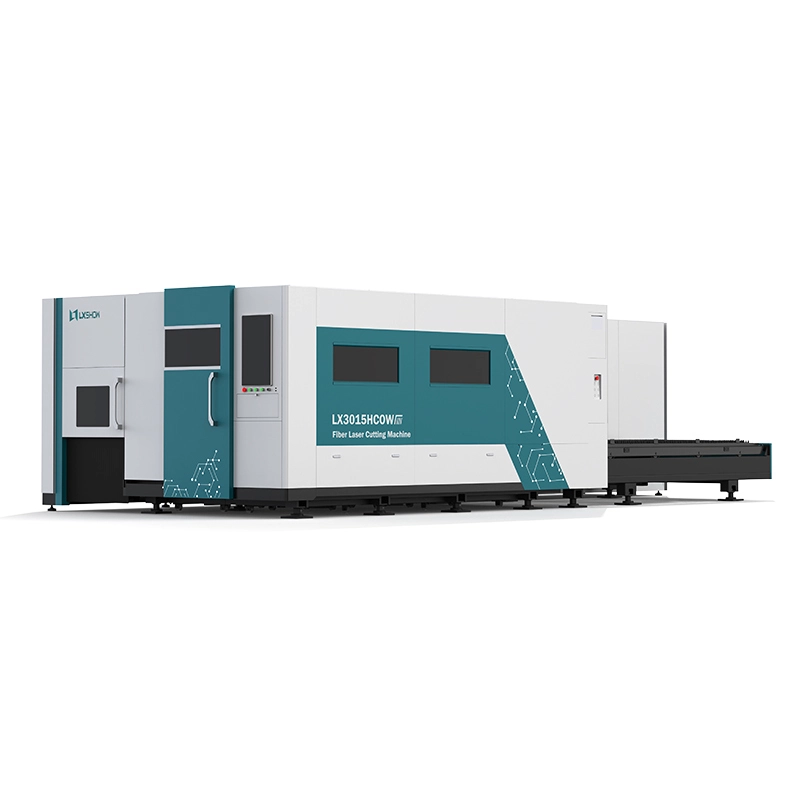

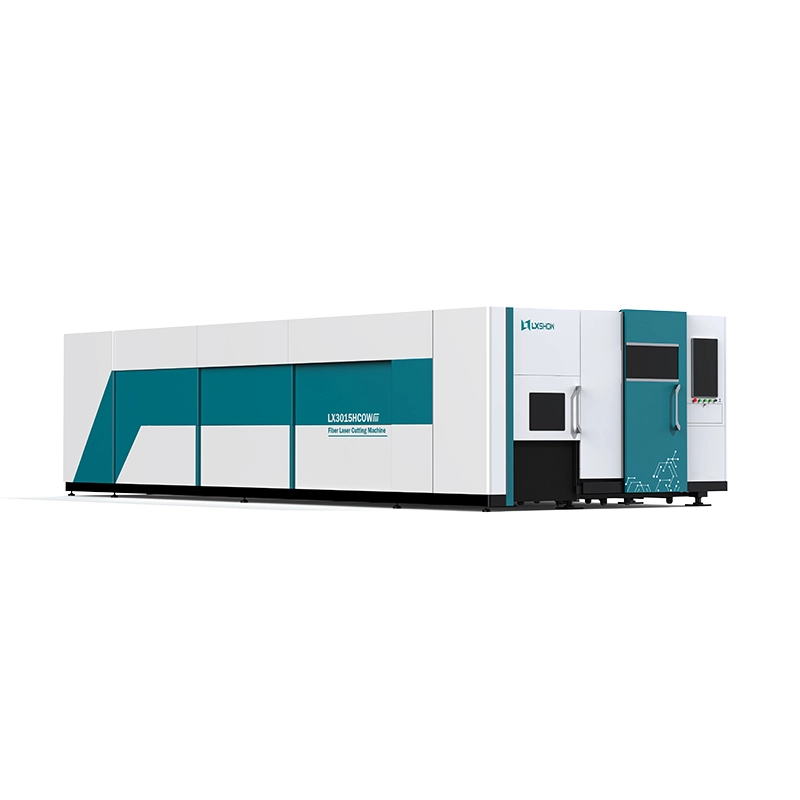

The LX3015HCOW is a powerful, fully enclosed fiber laser cutting machine that combines exceptional precision with maximum operational safety for the industrial-scale processing of metal sheets and pipes. Equipped with an automated 1500 x 3000 mm exchange table for continuous production and an integrated rotary axis for pipe cutting, this CNC machine—available with laser power ranging from 1 kW to 12 kW—ensures fast, clean, and efficient cutting of stainless steel, carbon steel, aluminum, and other non-ferrous metals, thereby minimizing downtime and optimizing productivity in your manufacturing facility.

Specifications

Model number :

LX3015HCOW

Laser source power :

1 000 - 12 000W ( IPG/MAX/RAYCUS/JPT )

Work area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.02mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
