LX3015PHOW

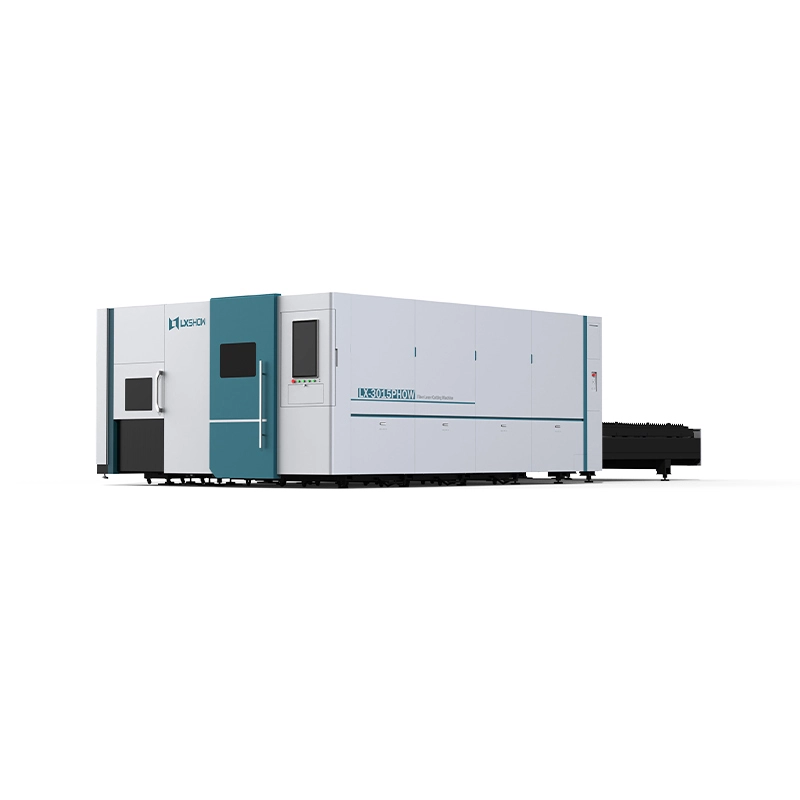

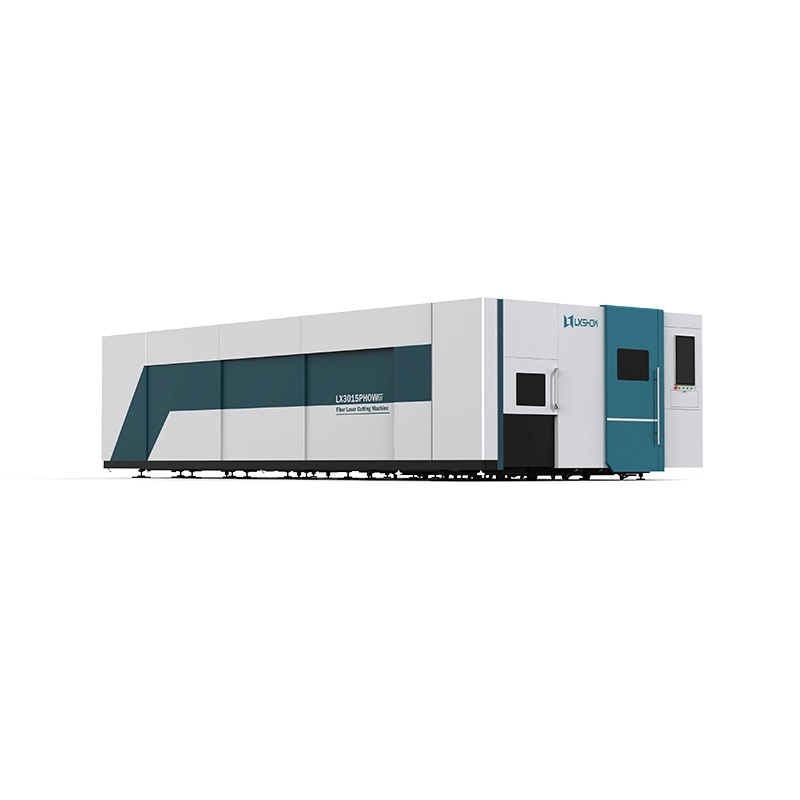

The LX3015PHOW is a high-performance, fully enclosed CNC fiber laser cutting machine designed for maximum speed, safety, and unparalleled precision in the combined processing of metal sheets and pipes. This laser is ideally suited for heavy machinery manufacturing and high-capacity production facilities that require continuous, intensive, and top-quality metal processing without downtime.

Specifications

Model number :

LX3015PHOW

Laser source power :

1 500 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.02mm

Cutting precision :

±0.01mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
