LX3015PT

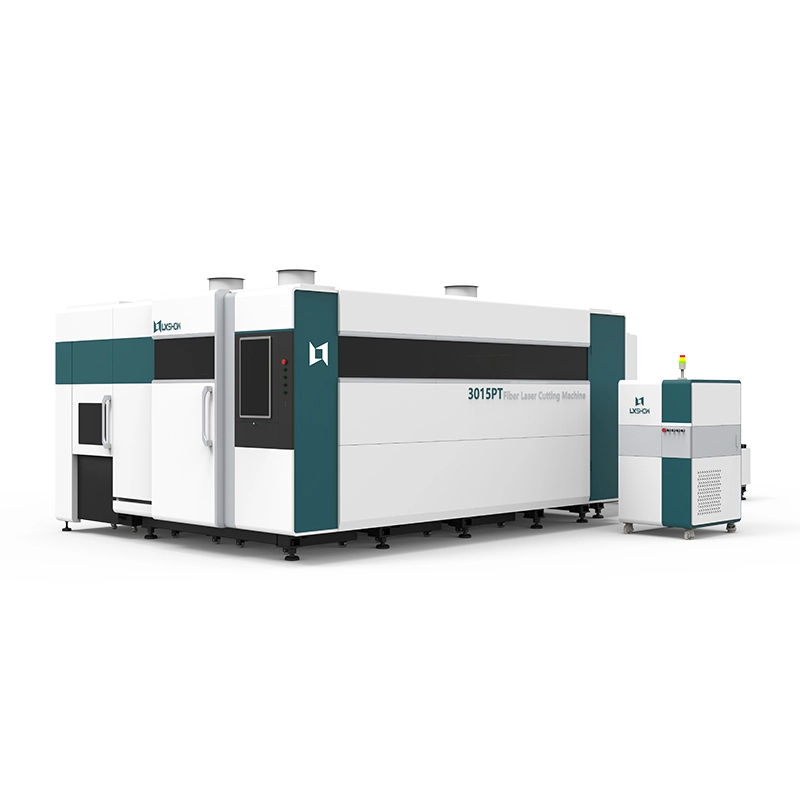

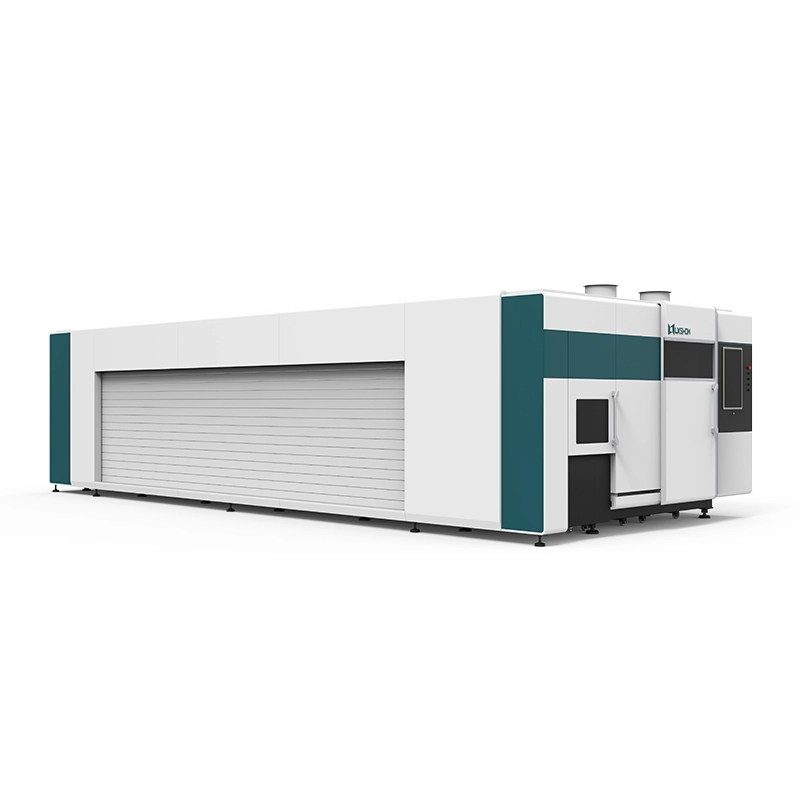

The LX3015PT is an industrial fiber laser cutting machine that combines high-performance sheet metal processing with professional tube cutting, offering an optimal solution for maximizing investment value and saving floor space in a production facility. It features a fully enclosed protective housing for operator safety and an efficient exchange table system to eliminate downtime. Available with power options ranging from 3kW to 12kW (and higher), the machine delivers a positioning accuracy of ±0.02 mm and an acceleration of 1.5G.

Specifications

Model number :

LX3015PT

Laser source power :

1 000 - 30 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1500 × 3000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.02mm

Cutting precision :

±0.01mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
