LX1390QF

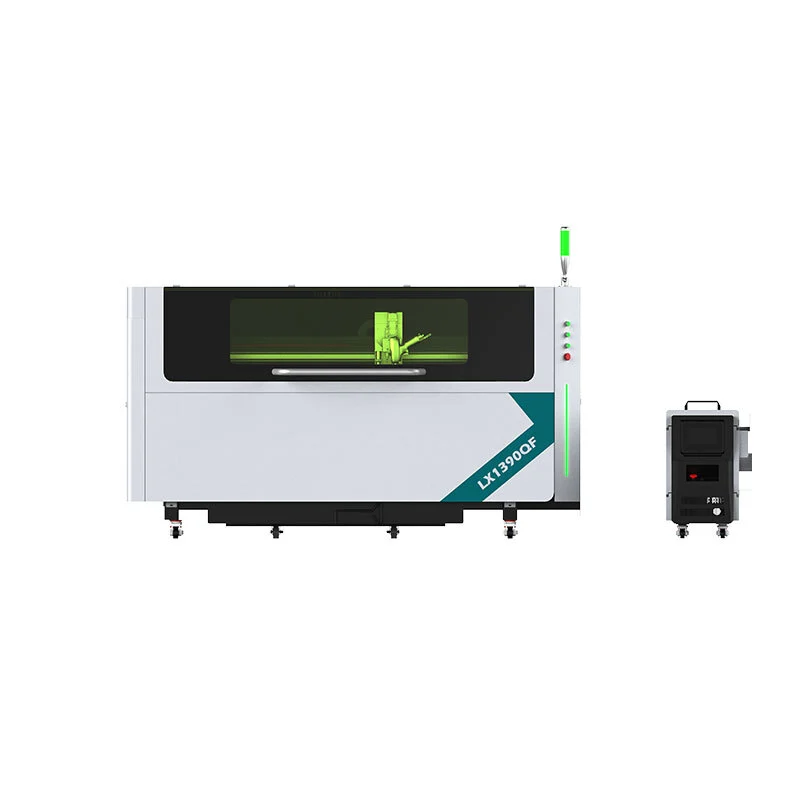

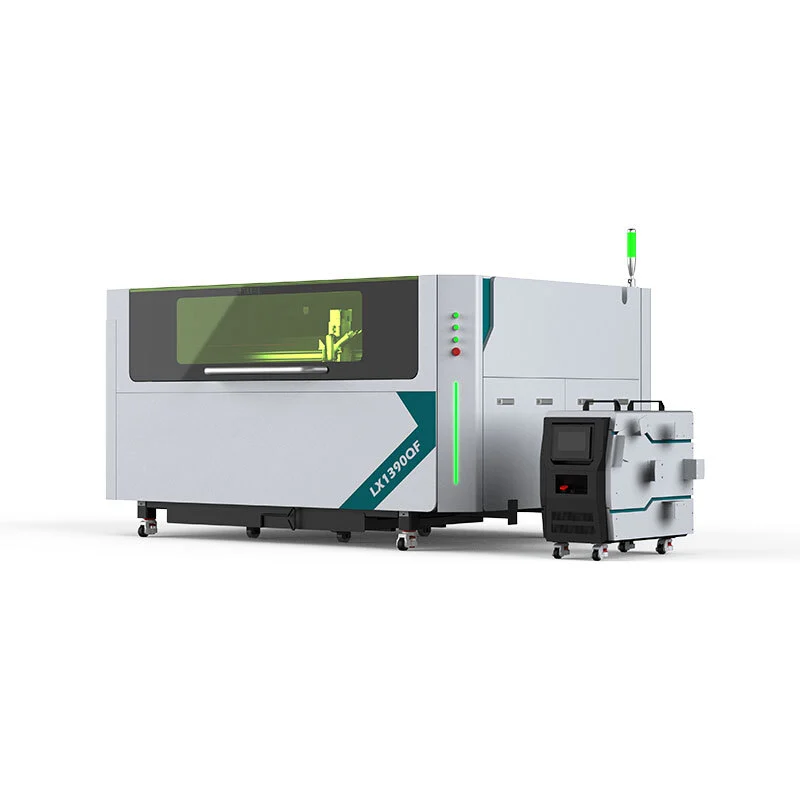

The LX1390QF is a unique, top-tier hybrid solution from LXSHOW for metal processing. Featuring a fully enclosed design and a 900 x 1300 mm working area, this machine not only handles standard CNC sheet and tube cutting but is also equipped with an independent handheld laser station. This means the same machine can be used for laser welding, cleaning (rust and paint removal), as well as manual cutting and metal marking.

Specifications

Model number:

LX1390QF

Laser source power:

800 - 1500W ( IPG/MAX/RAYCUS/JPT )

Work area:

900 x 1300 mm (other sizes available upon request)

Positioning accuracy:

±0.05mm

Max. travel speed:

60m/min

Maximum acceleration:

1G

Mains voltage:

220V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source

Features

Order
