LX1512FM

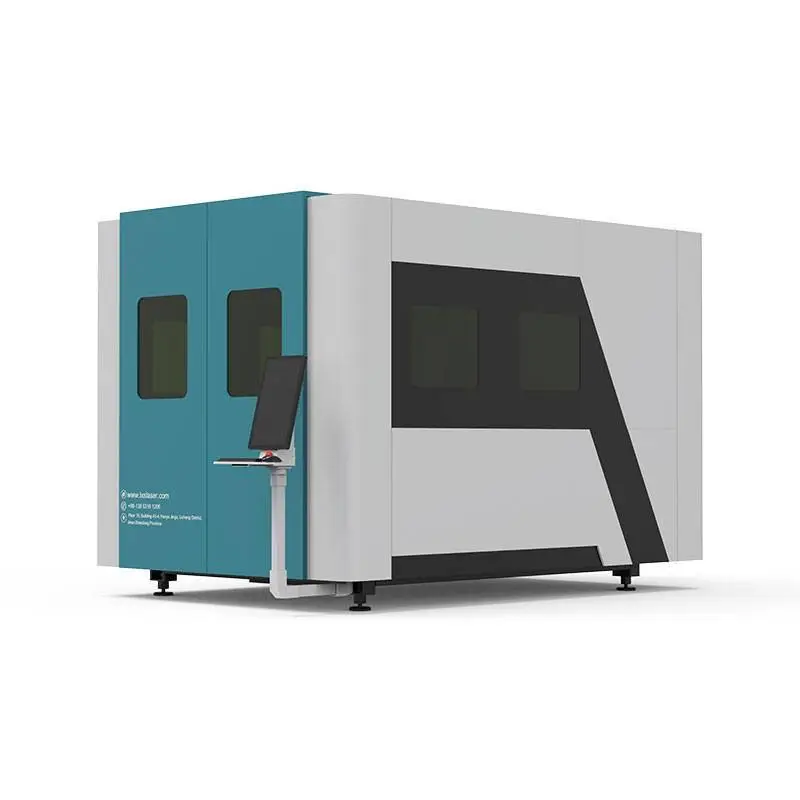

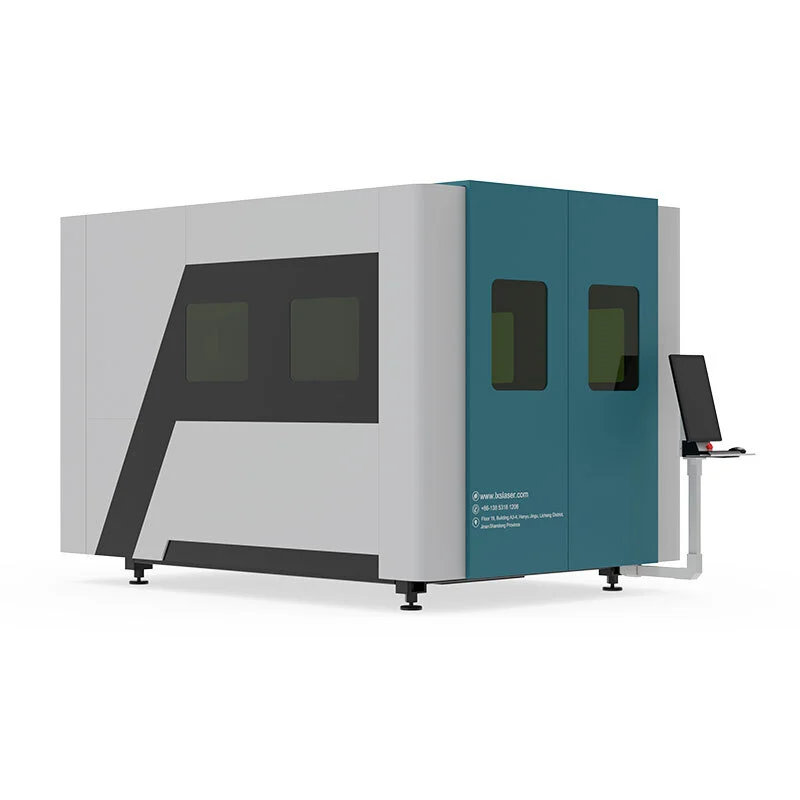

The LX1512FM is a new-generation, compact, fully automated, and enclosed fiber laser metal cutting machine from LXSHOW, featuring a 1250 x 1550 mm working area. This model is ideal for high-precision part manufacturing and small workshops that require industrial-grade speed but have limited floor space. The machine is available with power ratings ranging from 1000W to 3000W. A key innovation of this model is its 60-degree automatic tilting platform, which significantly simplifies the loading of heavy sheets and the unloading of finished parts, allowing a single operator to manage the entire process efficiently.

Specifications

Model number:

LX1512FM

Laser source power:

1000 - 3000W ( IPG/MAX/RAYCUS/JPT )

Work area:

1250 x 1550 mm (other sizes available upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 gadi - Iekārta
2 gadi - Lāzera avots
