LX9060QF

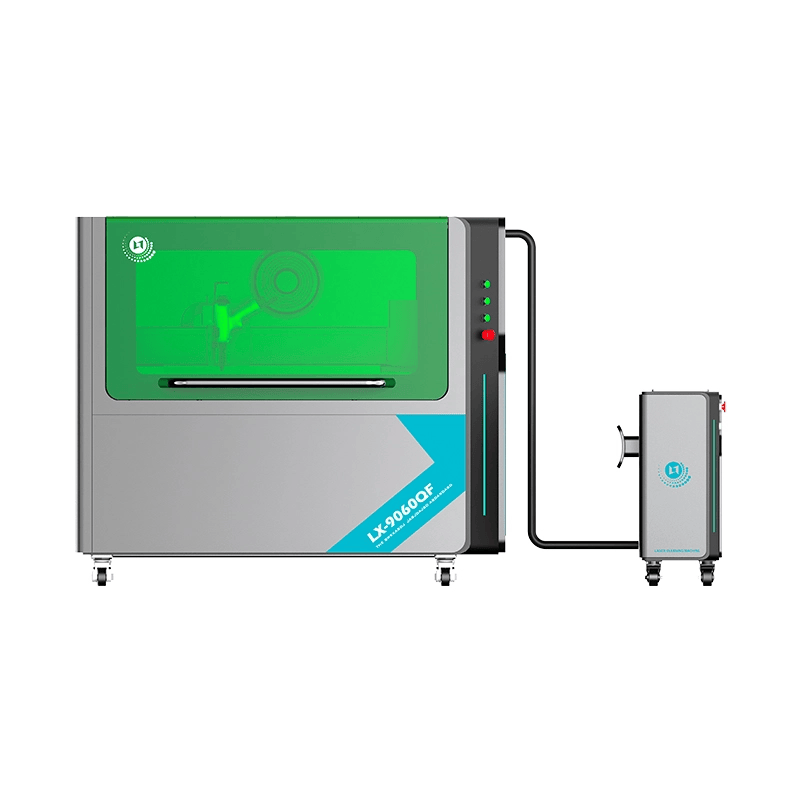

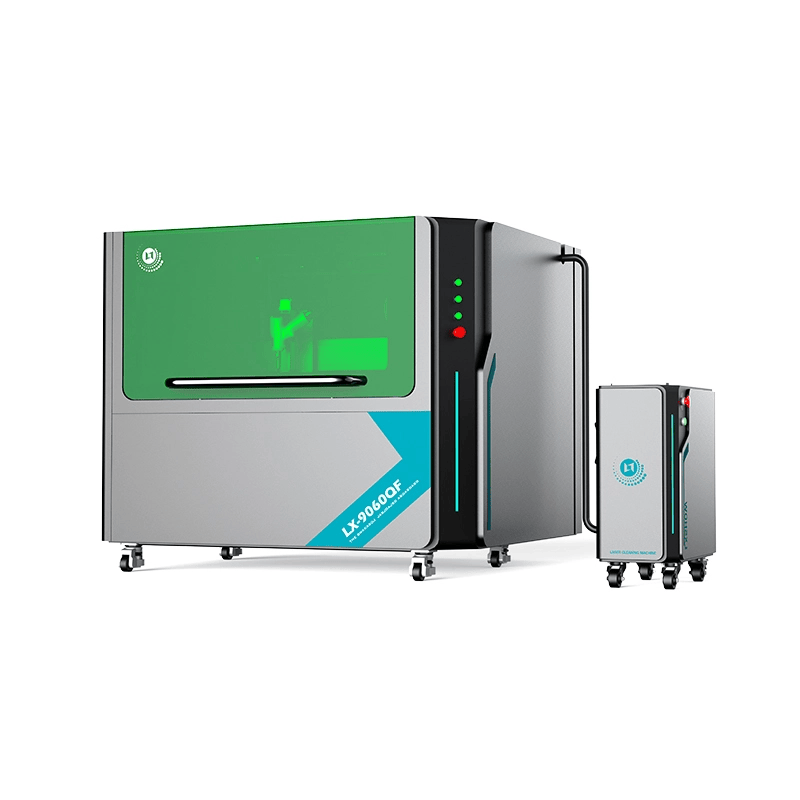

The LX9060QF is an innovative, highly cost-effective, multifunctional fiber laser machine developed by LXSHOW, featuring a 600 x 900 mm working area. This model was designed as a versatile workstation for small manufacturing facilities and workshops. Thanks to the integration of hybrid technology, the system is capable of performing industrial CNC cutting of sheets and small-sized profiles, while also functioning as a handheld laser unit for welding and surface cleaning (rust and paint removal).

Specifications

Model number:

LX9060QF

Laser source power:

1200 - 1500W ( IPG/MAX/RAYCUS/JPT )

Work area:

600 x 900 mm (other sizes available upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

35m/min

Maximum acceleration:

0.3G

Mains voltage:

220V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
