LX82TS

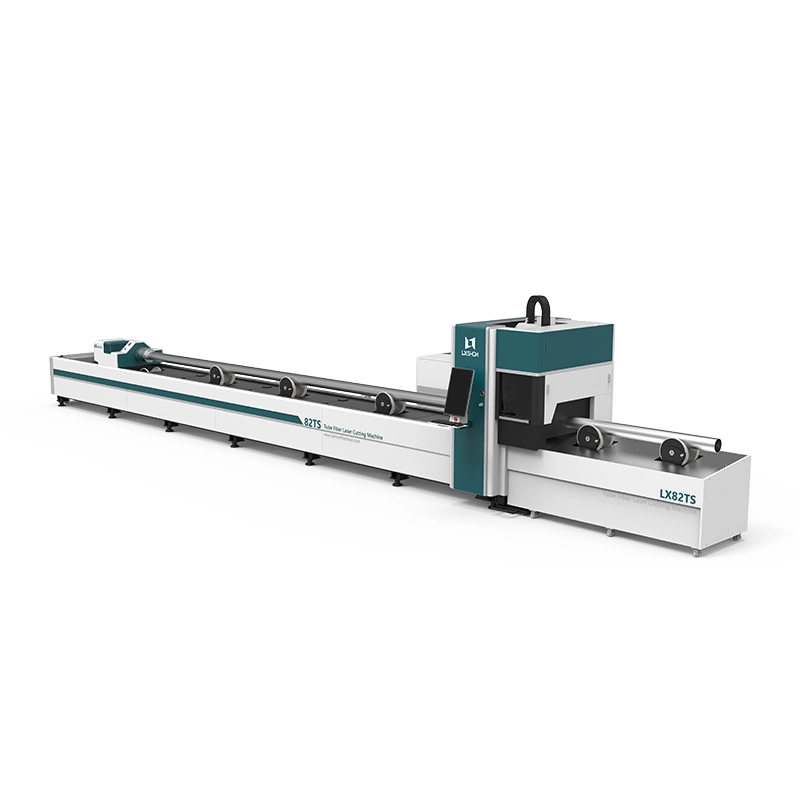

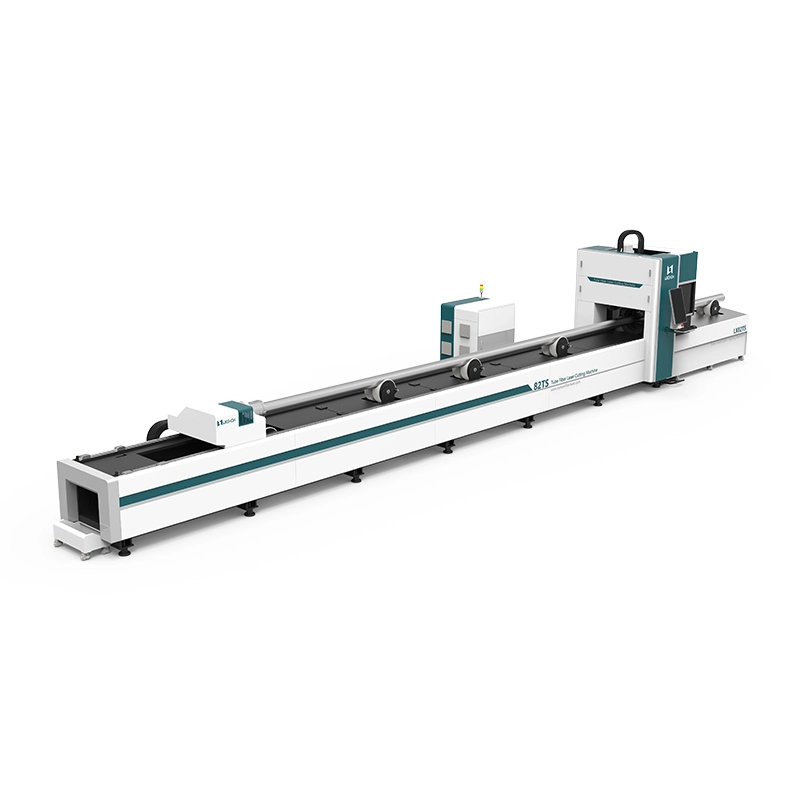

The LX82TS is a laser cutting machine designed for the precision processing of metal tubes and profiles. It ensures high-quality cuts and efficient material utilization while optimizing production processes. The machine is designed to process various metal materials, including carbon steel, stainless steel, and aluminum. Depending on the selected configuration and technical specifications, it can be adapted to meet diverse metalworking needs.

Specifications

Model number :

LX82TS

Laser source power :

1000 - 6000W ( IPG/MAX/RAYCUS/JPT )

Tube diameter :

Ø20 x 220 mm (other sizes upon request)

Max. Loading lenght :

8000mm

Positioning accuracy :

±0.02mm

Max. travel speed :

60m/min

Maximum acceleration :

1.0G

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
