Fiber-Cut LX612TNA

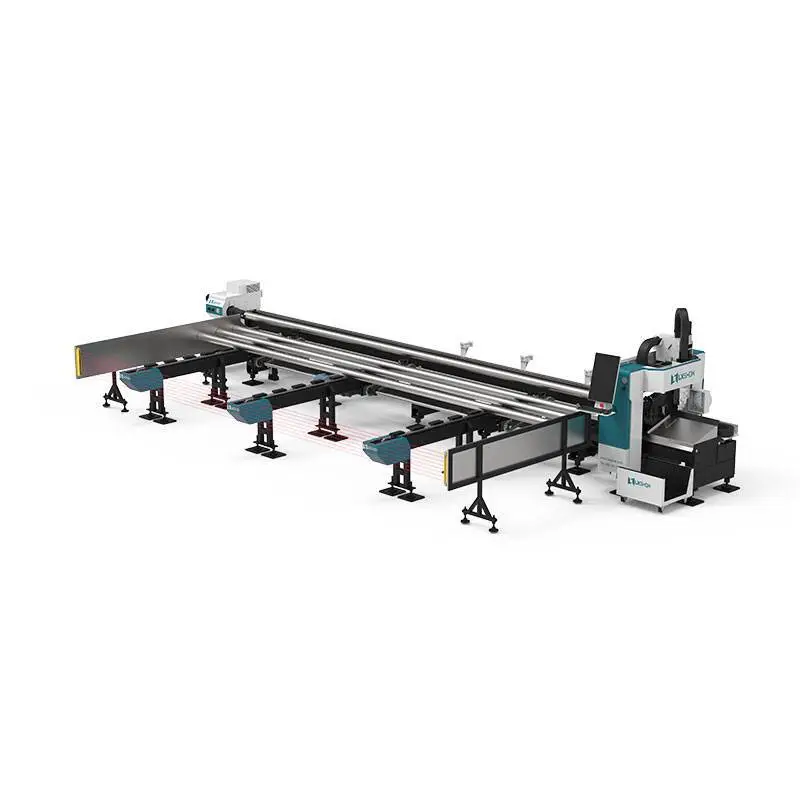

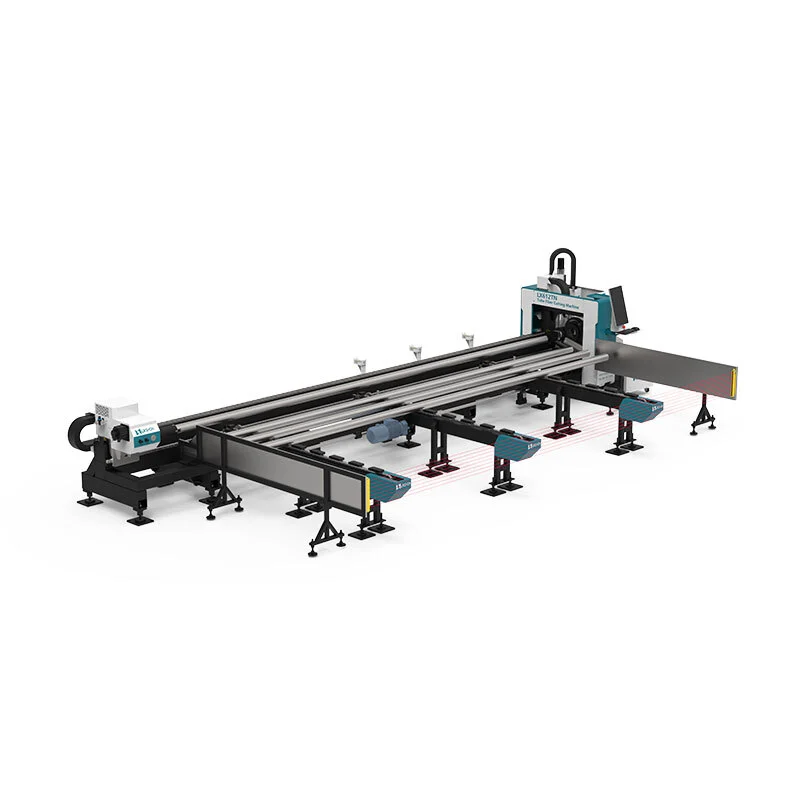

The LX612TNA is a high-performance, semi-automatic loading fiber laser cutting machine specifically designed for the precise and rapid processing of metal tubes and various profiles. This model is ideally suited for medium- to large-scale manufacturing facilities looking to optimize material usage and increase operational efficiency. Thanks to its intelligent front chuck avoidance function, the machine maximizes raw material utilization by minimizing the length of the remaining tail-end scrap.

Specifications

Model number :

Fiber-Cut LX612TNA

Laser source power :

1 000 - 3 000W

Pipe diameter :

Ø10 x 120mm

Max. loading length :

6300mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.01mm

Cutting precision:

±0.1mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC

Features
