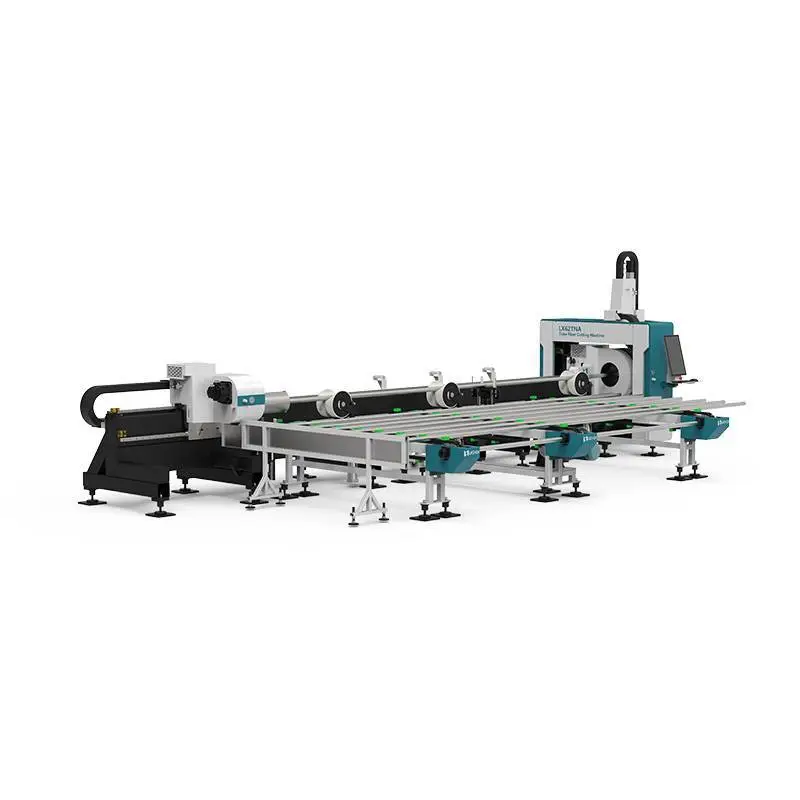

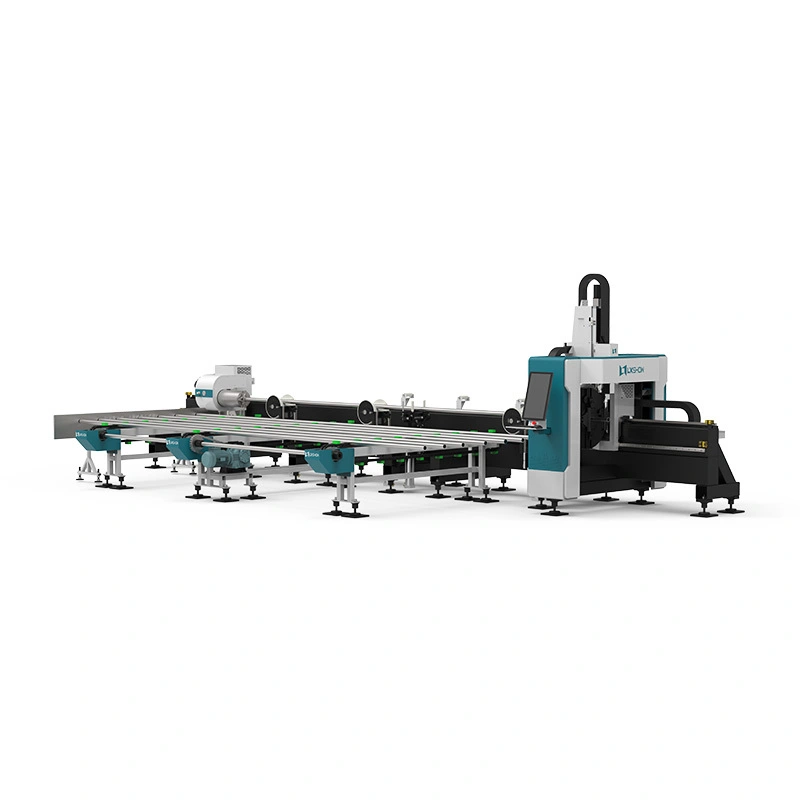

Fiber-Cut LX62TNA

The LX62TNA ensures a stable and continuous operating cycle thanks to its integrated semi-automatic loading and unloading system. The machine's intelligent CNC control and pneumatic chuck mechanism allow for the effortless processing of round tubes with diameters up to 220 mm and square profiles up to 150 mm, guaranteeing micron-level precision and clean cut edges without the need for additional post-processing.

Specifications

Model number :

Fiber-Cut LX62TNA

Laser source power :

1 000 - 6 000W

Pipe diameter :

Ø20 x 220mm

Max. loading length :

6000mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.02mm

Cutting precision:

±0.1mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
