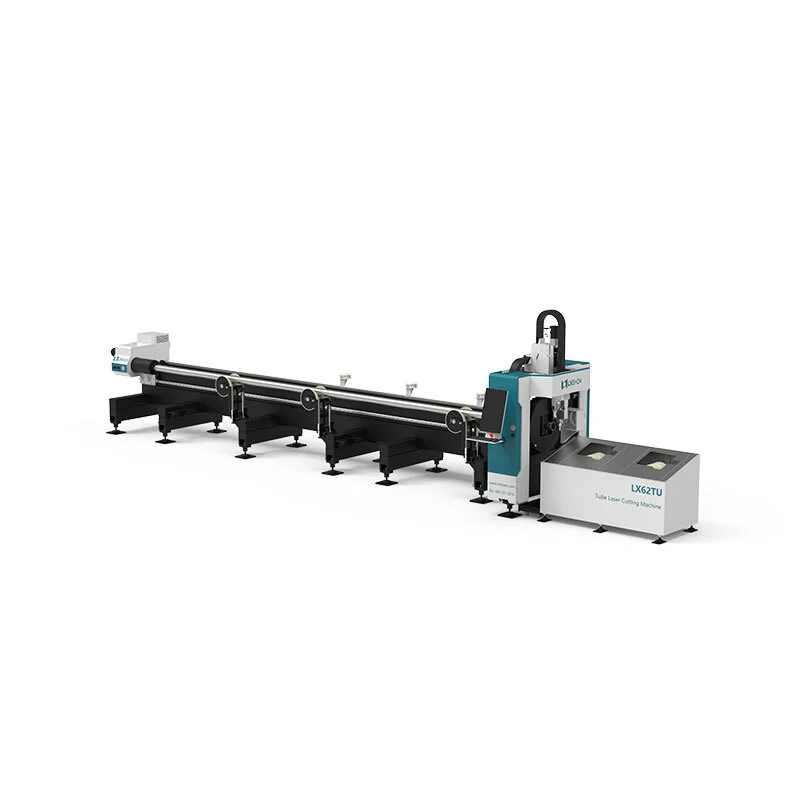

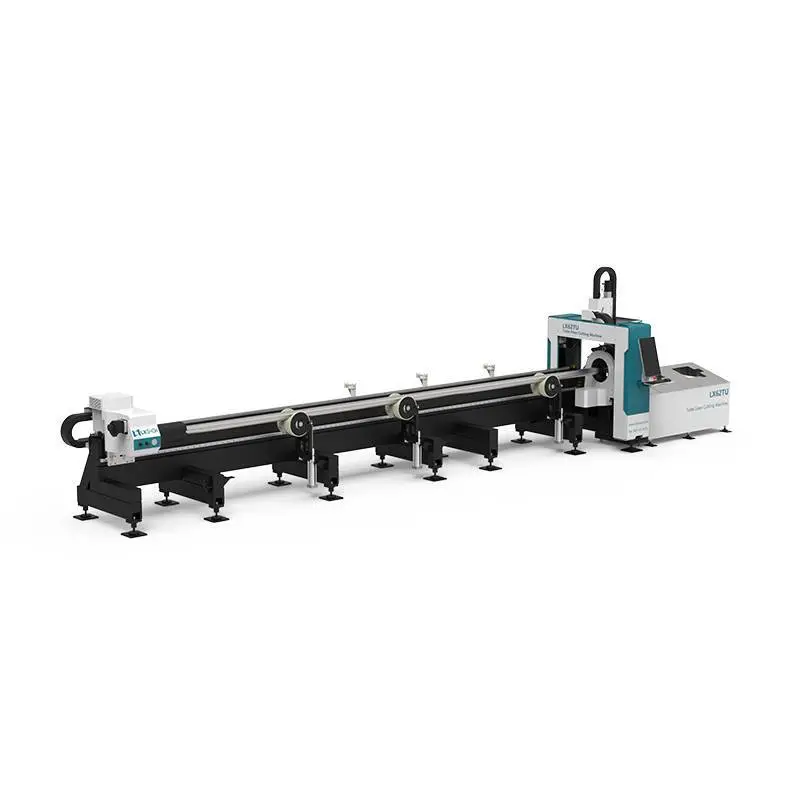

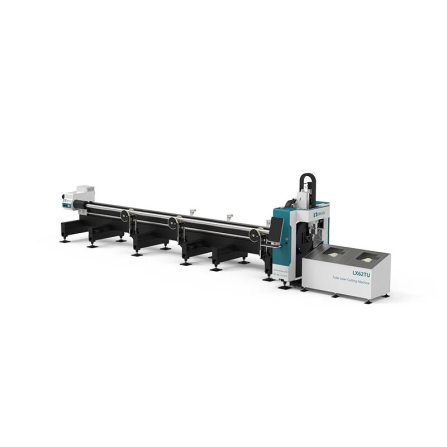

Fiber-Cut LX62TU

The LX62TU is equipped with an intelligent pneumatic chuck system and a smart tracking mechanism that prevents material sagging or vibration during cutting. This ensures a perfect, smooth cut edge free from thermal defects, completely eliminating the need for time-consuming post-processing of parts. The LX62TU can process round, square, and oval tubes with diameters up to 220 mm, as well as standard U- and H-shaped metal profiles.

Specifications

Model number :

Fiber-Cut LX62TU

Laser source power:

1 000 - 6 000W

Pipe diameter:

Ø20 x 220mm

Max. loading length:

6000mm

Max. unloading length:

1000mm

Positioning accuracy :

±0.02mm

Cutting precision:

±0.1mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards:

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
