Fiber-Cut LX122TX

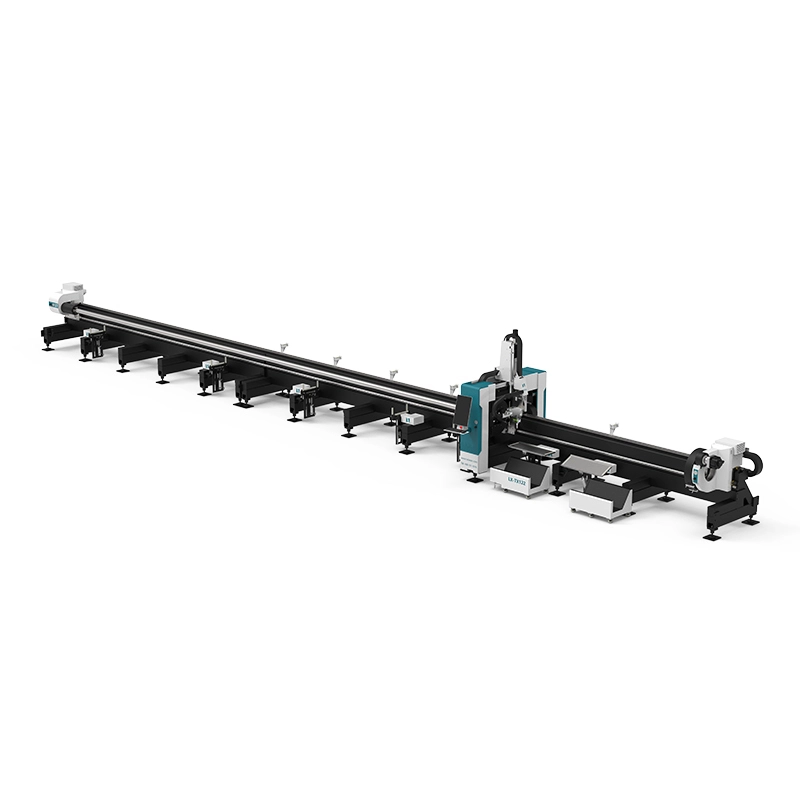

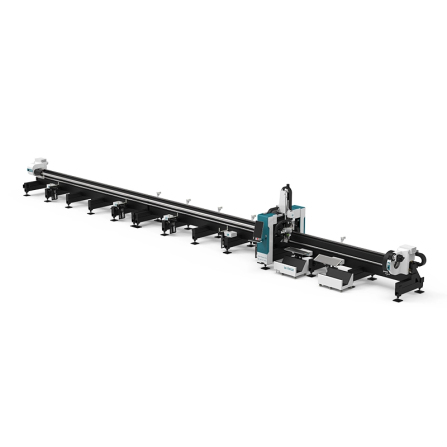

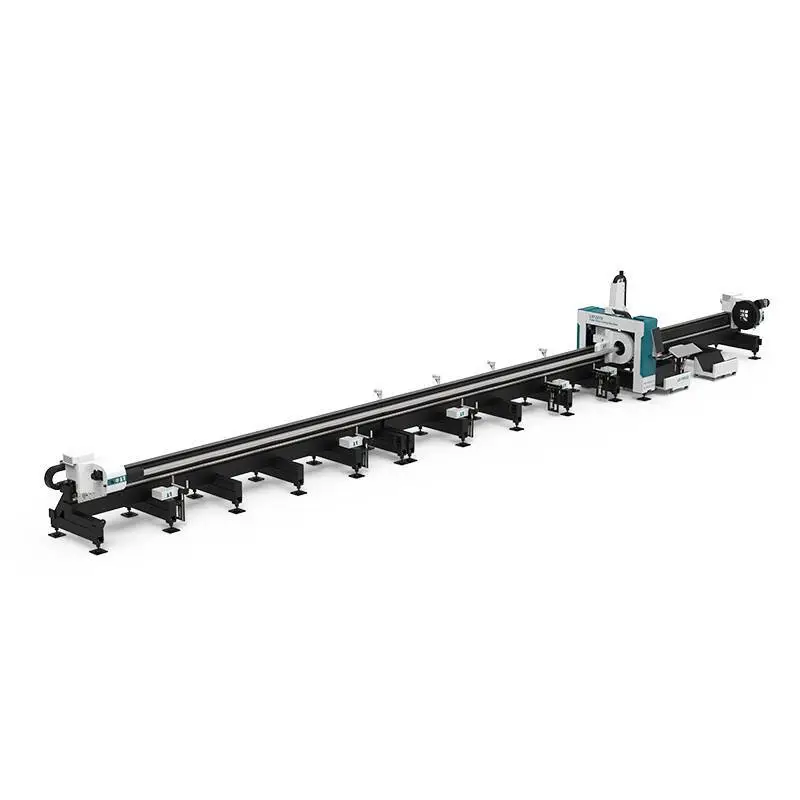

The LX122TX is an industrial fiber laser machine specifically designed for the high-speed cutting of heavy structures, long metal pipes, and complex profiles in an industrial environment. The machine's key advantage is its intelligent three-chuck system, which ensures maximum material stability and efficiency without the risk of workpiece deformation.

Specifications

Model number :

Fiber-Cut LX122TX

Laser source power :

1 000 - 6 000W

Pipe diameter :

Ø20 x 220mm

Max. loading length :

6200mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.03mm

Cutting precision :

±0.5mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
