Fiber-Cut LX62TX

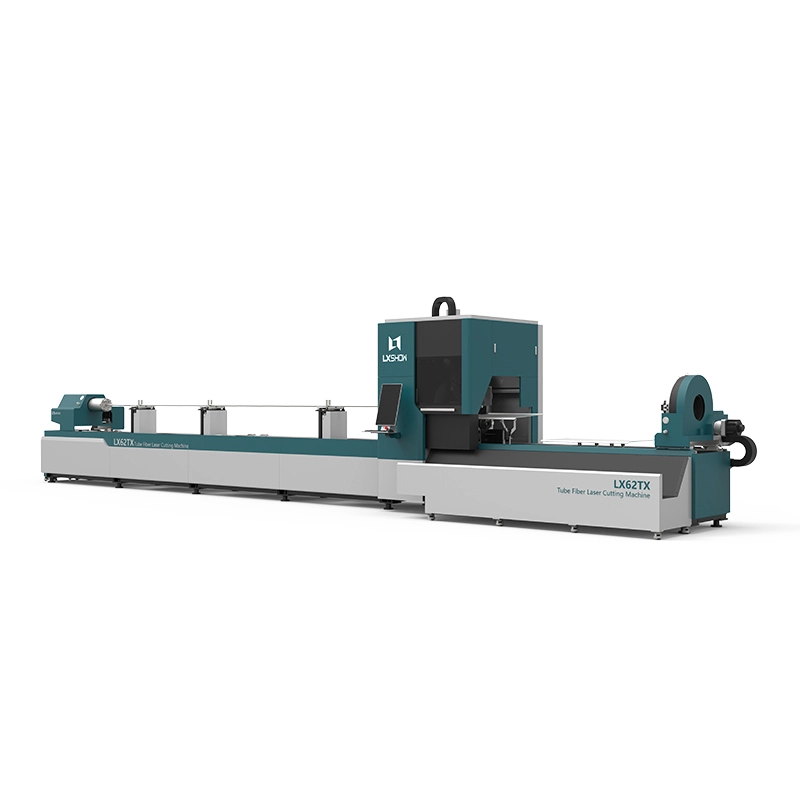

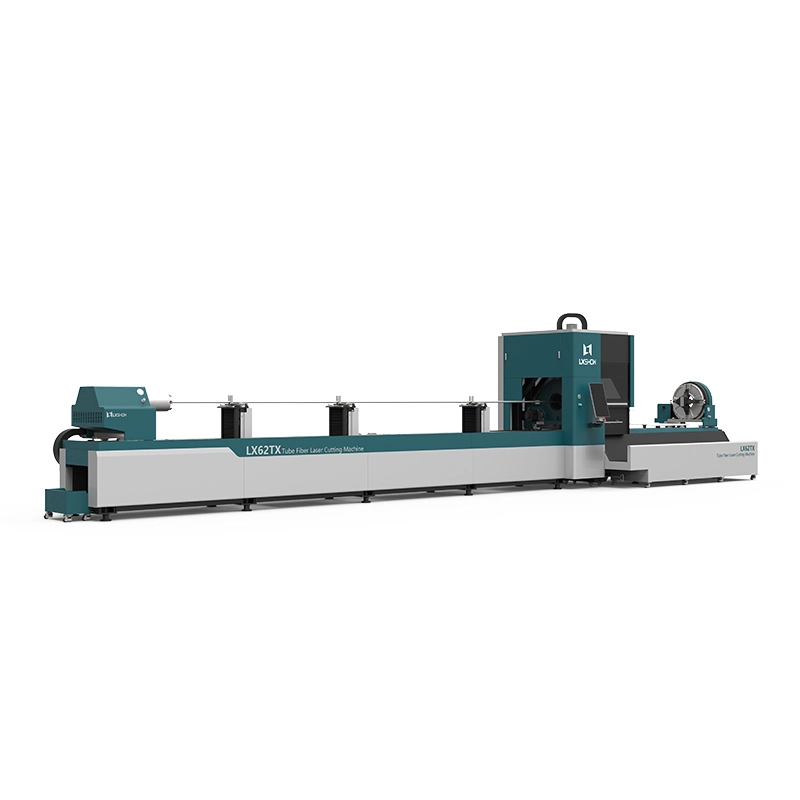

The LX62TX is a robust, industrial-grade fiber laser machine designed for the high-precision cutting of thick metal tubes and heavy steel profiles. Equipped with a synchronized three-chuck system, the machine ensures mechanical stability, rapid acceleration, and zero-scrap processing—factors that are critical for high-intensity production environments.

Specifications

Model number :

Fiber-Cut LX62TX

Laser source power :

1 000 - 6 000W

Pipe diameter :

Ø20 x 220mm

Max. loading length :

6000mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.02The LX62TX is a robust, industrial-grade fiber laser machine designed for the high-precision cutting of thick metal tubes and heavy steel profiles. Equipped with a synchronized three-chuck system, the machine ensures mechanical stability, rapid acceleration, and zero-scrap processing—factors that are critical for high-intensity production environments.mm

Cutting precision :

±0.1mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
