Fiber-Cut LX122TXA

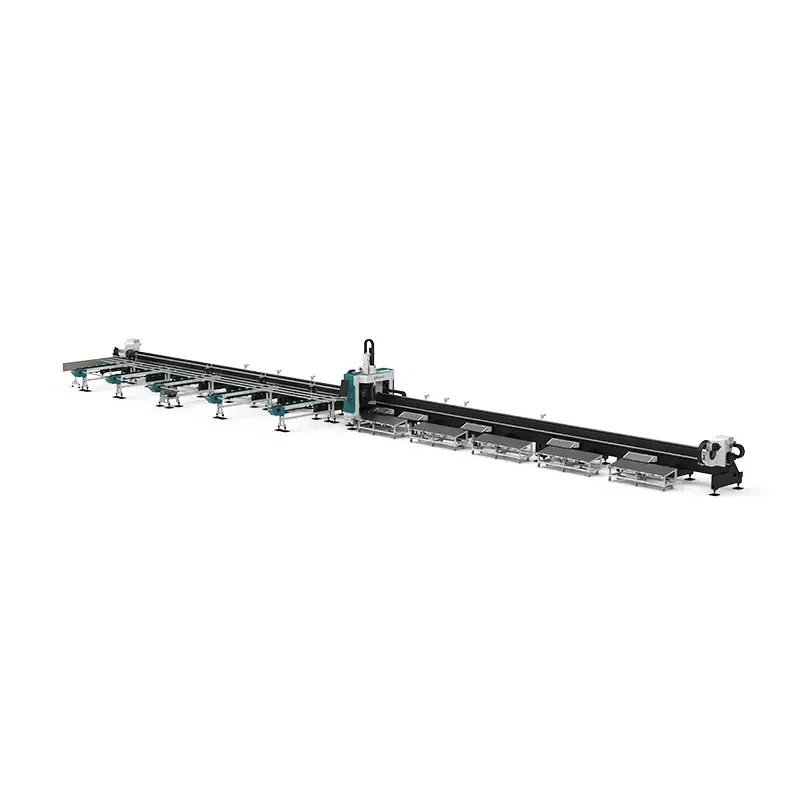

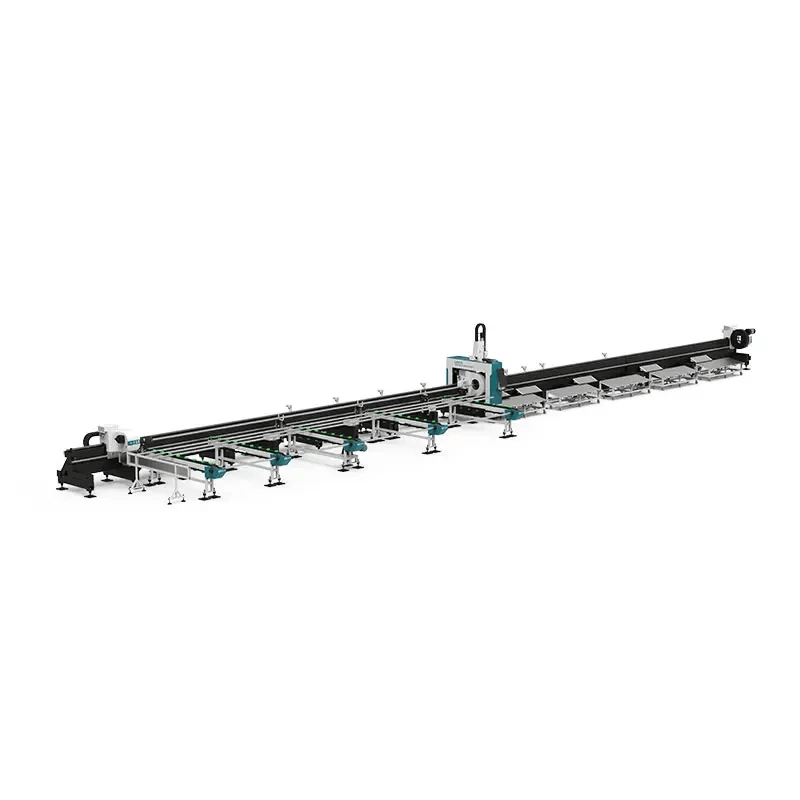

The LX122TXA is an industrial fiber laser system specifically designed for the high-precision processing of extra-long metal tubes and heavy steel profiles. The machine utilizes a synchronized three-pneumatic-chuck technology that prevents material sagging and ensures exceptional dynamic stability when handling large, heavy structures.

Specifications

Model number :

Fiber-Cut LX122TXA

Laser source power :

3 000 - 12 000W

Pipe diameter :

Ø20 x 220mm

Max. loading length :

6000mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.03mm

Cutting precision :

±0.05mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
