Fiber-Cut LX123TXA

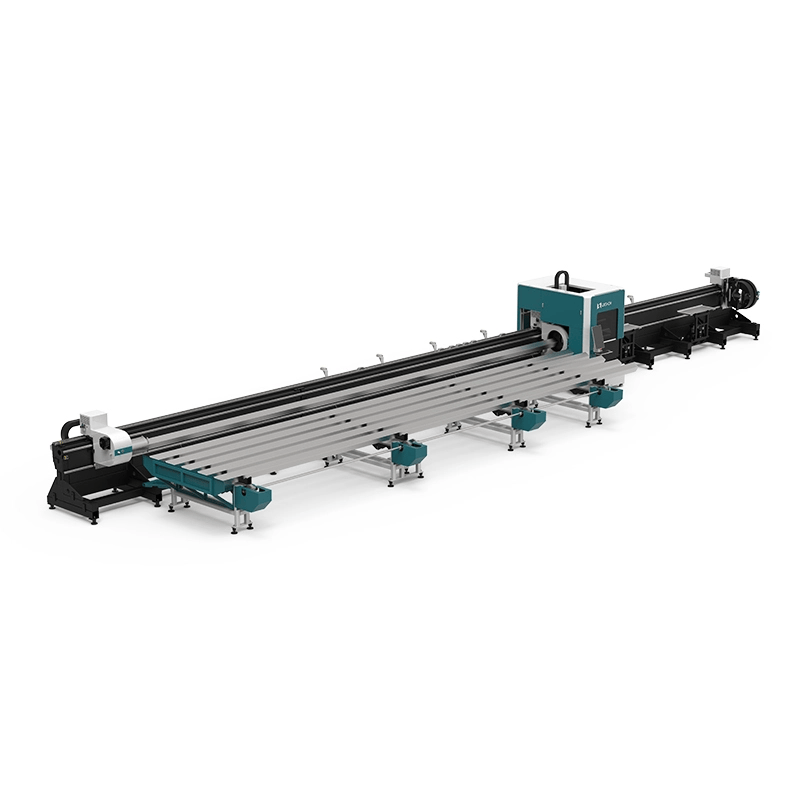

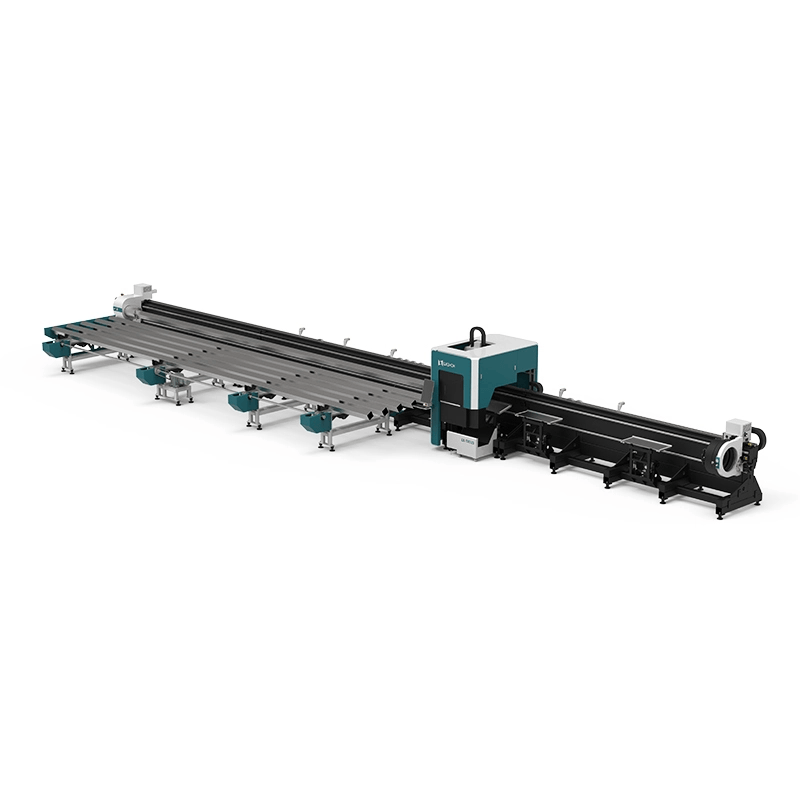

The LX123TXA is an industrial, extra-large-scale fiber laser system designed for the precision processing of massive metal tubes, heavy profiles, and large-scale steel workpieces. Thanks to the synchronization of three pneumatic chucks and the intelligent TXA series platform, the machine ensures stable, automated material feeding for high-volume production, effectively eliminating the risks of deformation and vibration associated with heavy components.

Specifications

Model number :

Fiber-Cut LX624TX

Laser source power :

3 000 - 12 000W

Pipe diameter :

Ø20 x 350mm

Max. loading length :

6000mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.03mm

Cutting precision :

±0.05mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
