Fiber-Cut LX9TQ

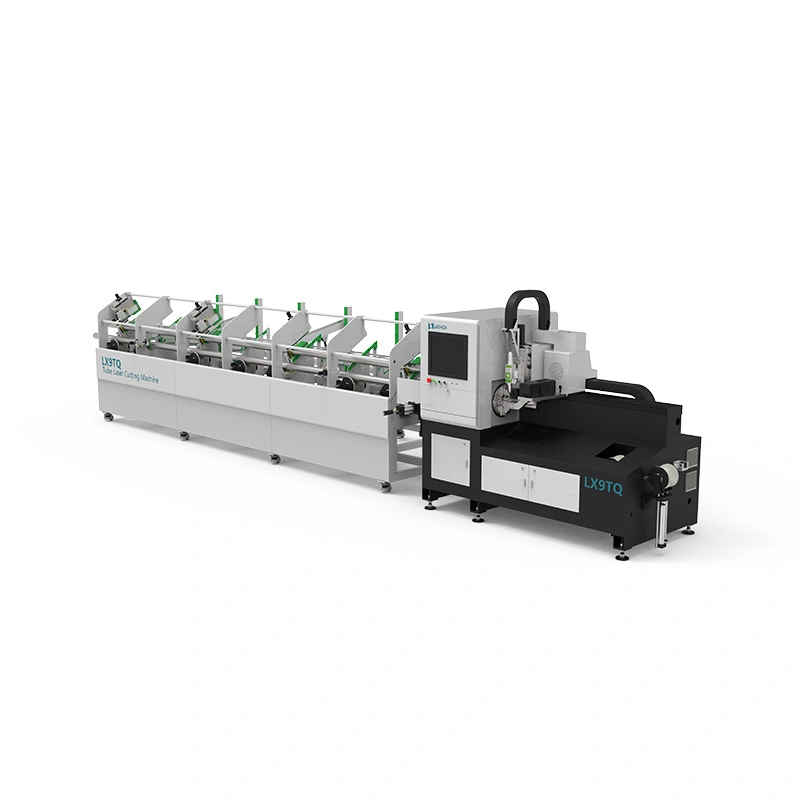

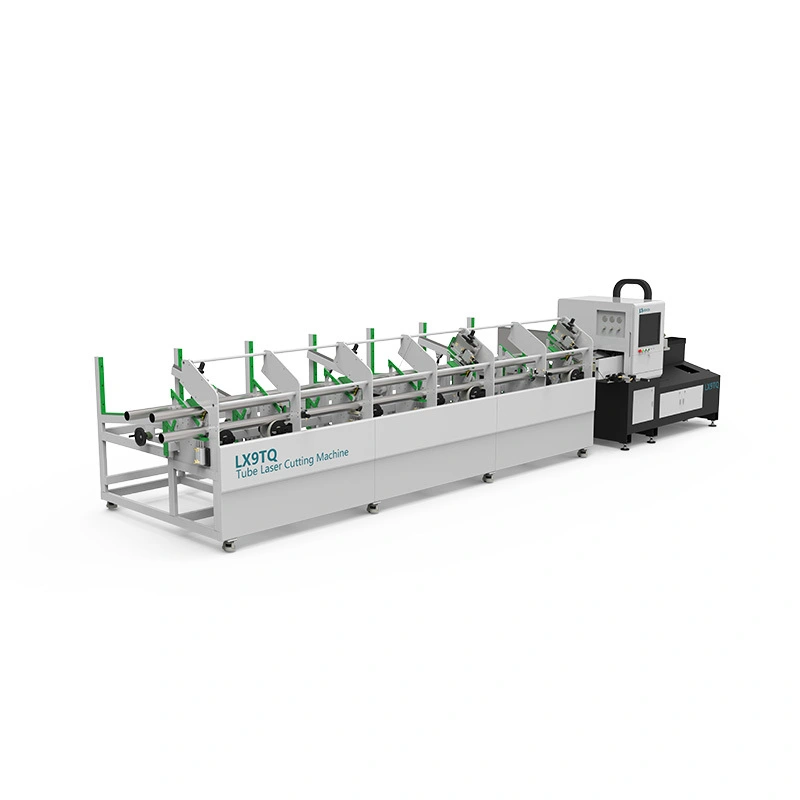

The LX9TQ is a compact and cost-effective fiber laser machine designed for the rapid processing of small- to medium-sized metal tubes and straight profiles. Featuring a front-loading design and a dual pneumatic chuck system, this model offers an optimal balance of precision, energy efficiency, and affordability, making it an excellent choice for small manufacturing facilities and specialized workshops.

Specifications

Model number :

Fiber-Cut LX9TQ

Laser source power :

1 000 - 3 000W

Pipe diameter :

Ø20 x 80mm

Max. loading length :

6050mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.03mm

Cutting precision :

±0.05mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
