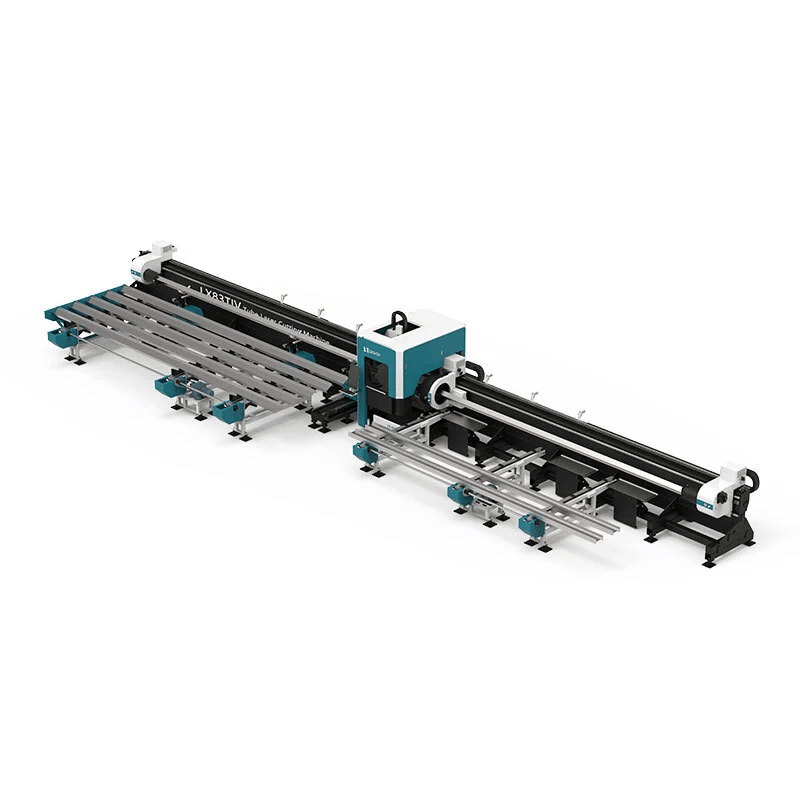

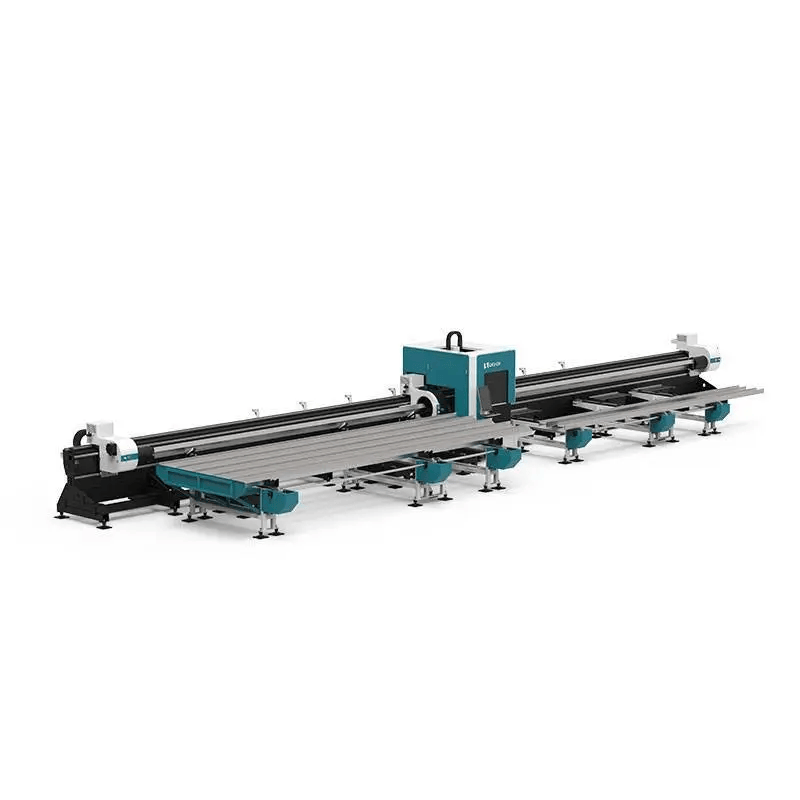

Fiber-Cut LX83TIV

The LX83TIV is a high-performance industrial fiber laser system designed for the intensive processing of metal tubes and complex profiles in serial production. This model utilizes a four-pneumatic-chuck gripping design and fully automated material feeding, ensuring impeccable cutting precision and zero-waste operation.

Specifications

Model number :

Fiber-Cut LX83TIV

Laser source power :

3 000 - 12 000W

Pipe diameter :

Ø20 x 220mm

Max. loading length :

6000mm

Max. unloading length :

1000mm

Positioning accuracy :

±0.03mm

Cutting precision :

±0.05mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years – Equipment
2 years – Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
