Fiber-Cut LX62TD

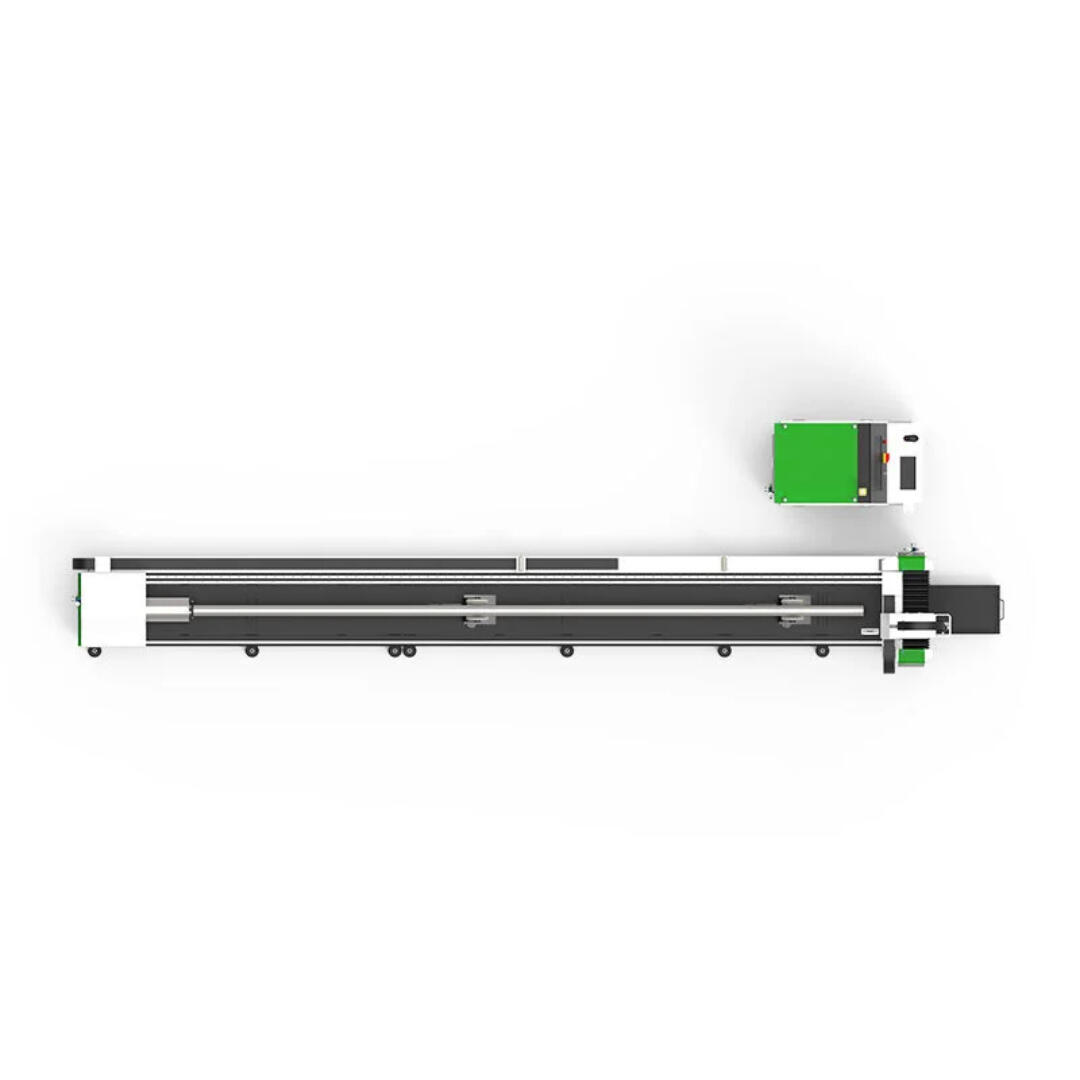

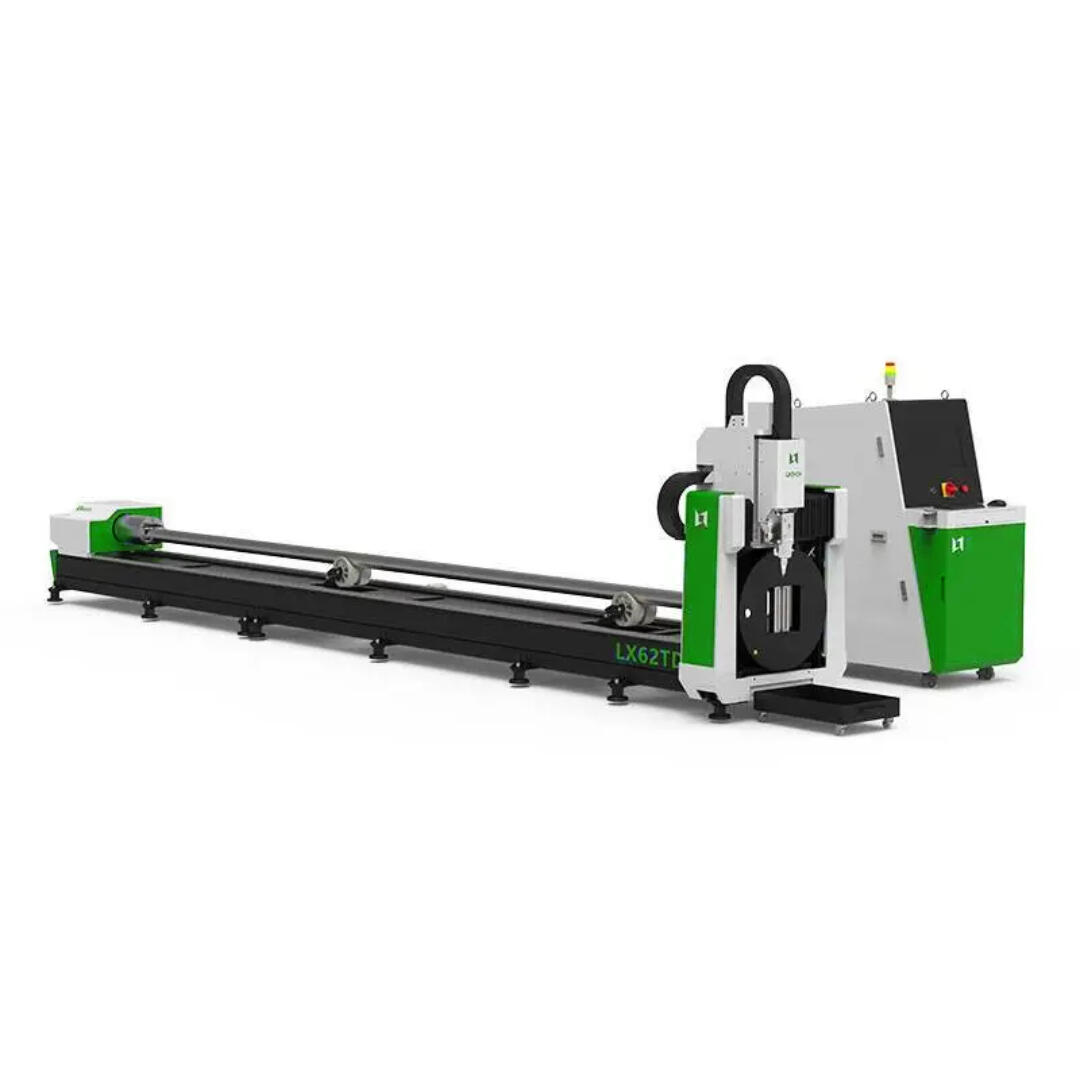

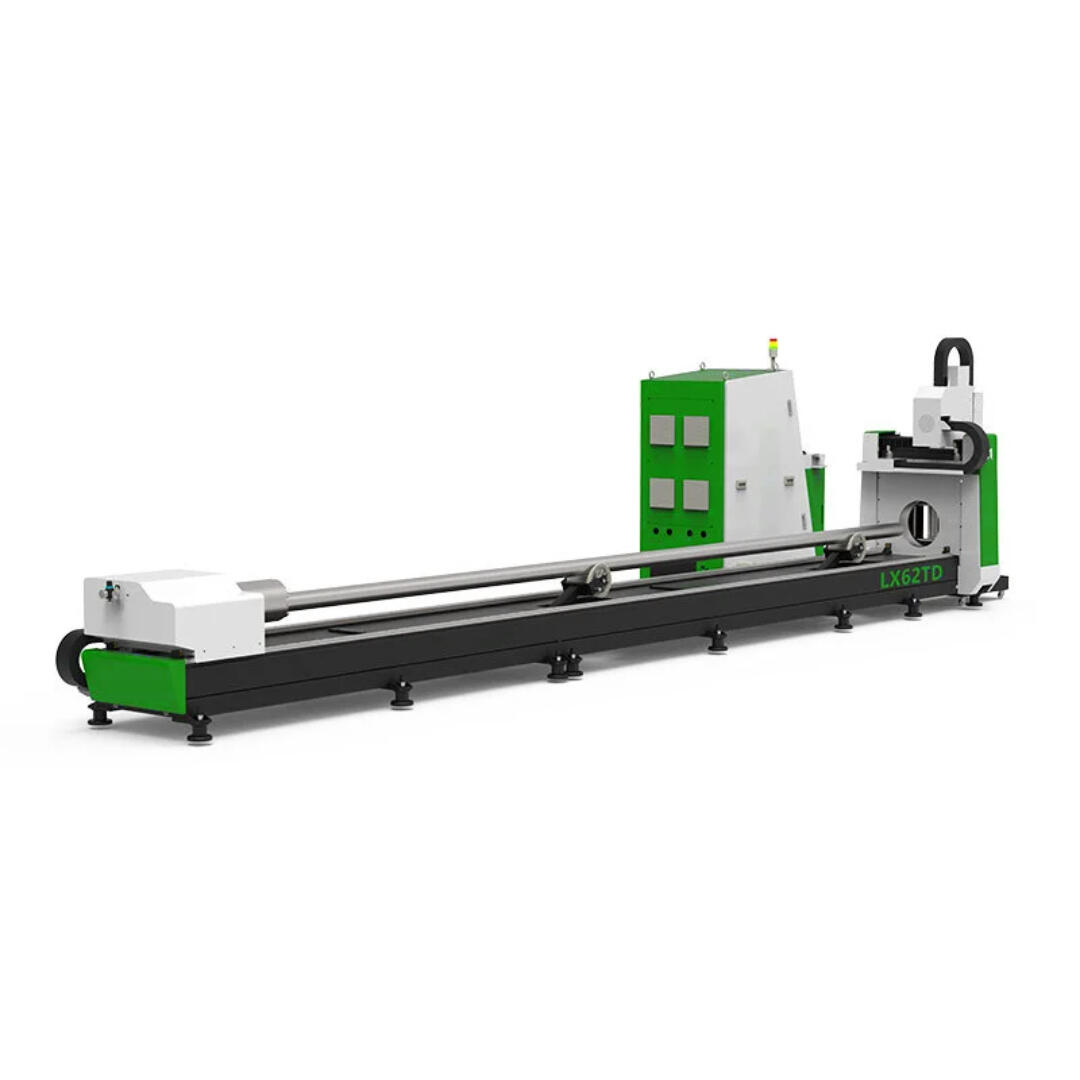

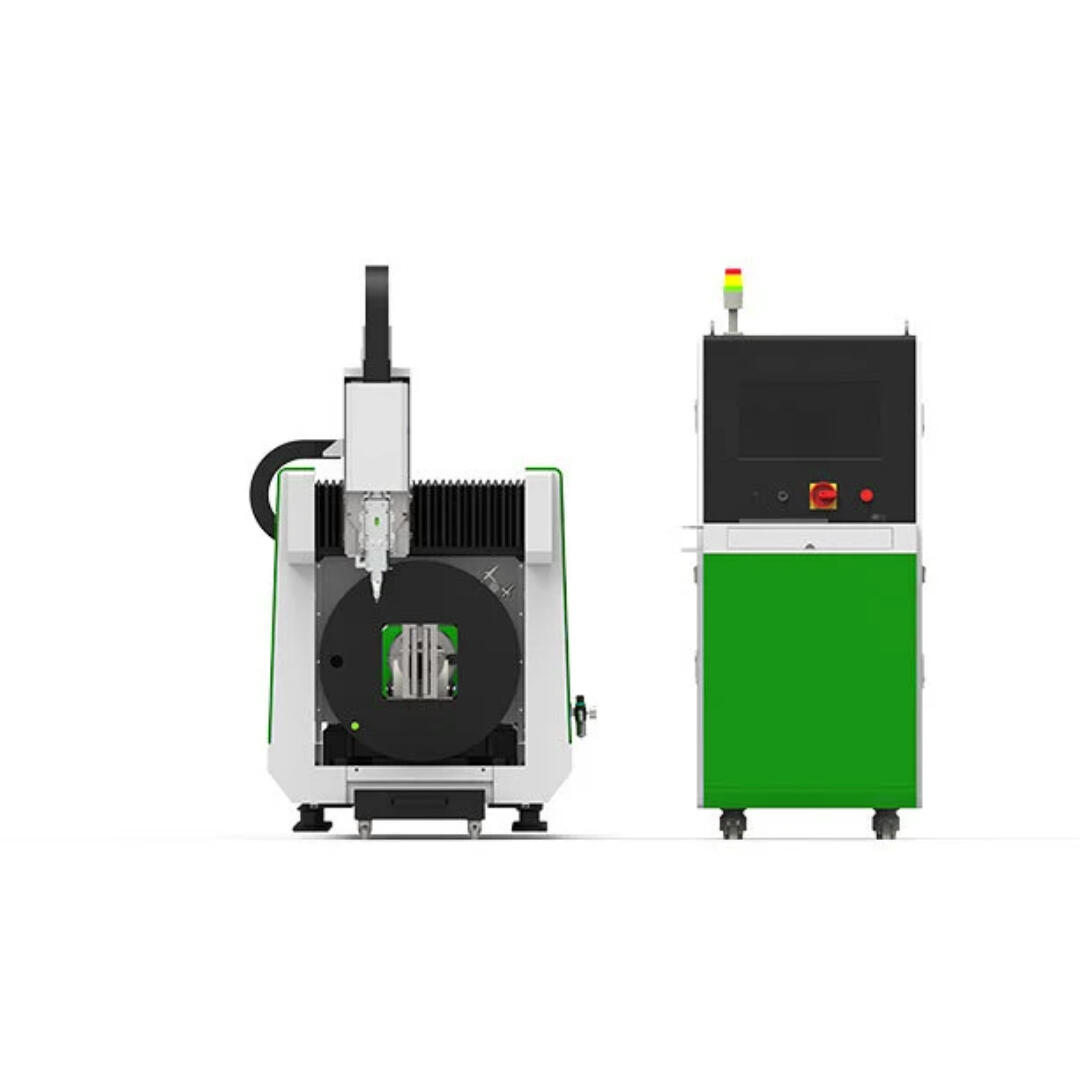

Fiber-Cut LX62TD - compact fiber laser cutting machine designed for the precision processing of metal tubes and profiles. It is suitable for cutting round and square tubes, ensuring efficient material utilization and high-quality cuts. The machine is designed to work with various metals, including stainless steel, carbon steel, aluminum, and other metallic materials. Depending on the configuration, the laser power can range from 1,000 W to 3,000 W.

Specifications

Machine Model :

Fiber-Cut LX62TD

Laser power :

1 000 - 6 000W

Tube diameter :

Ø20 x 220mm

Max. Loading lenght :

6100mm

Max. Unloading lenght

1000mm

Positioning accuracy :

±0.02mm

Cutting accuracy :

±0.1mm

Mains voltage :

380V / 50-60hz

Warranty :

3 gadi - CNC Machine
2 gadi - Laser Source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
