LX26015HGC

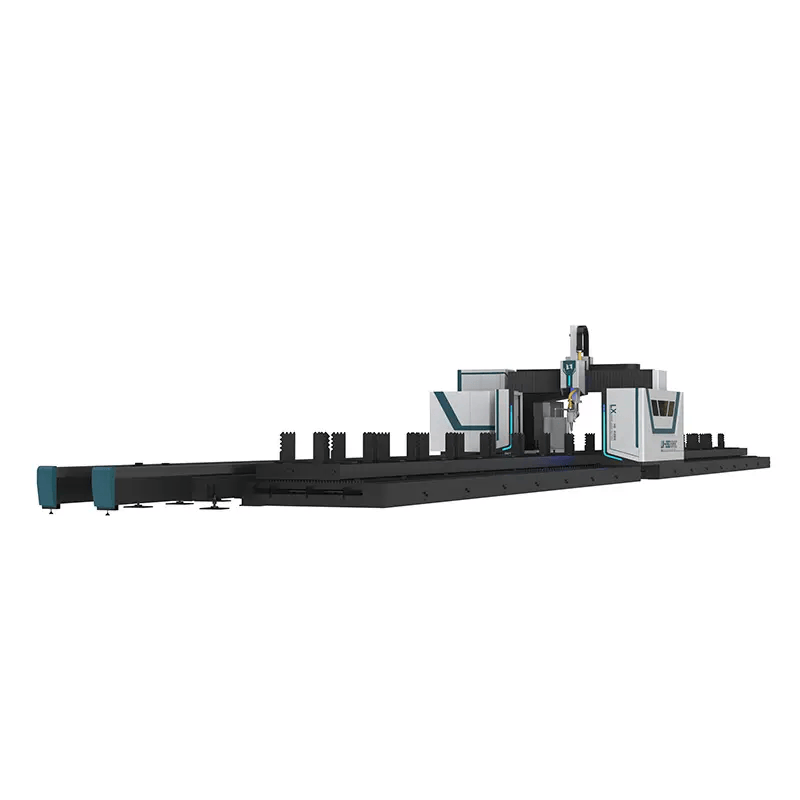

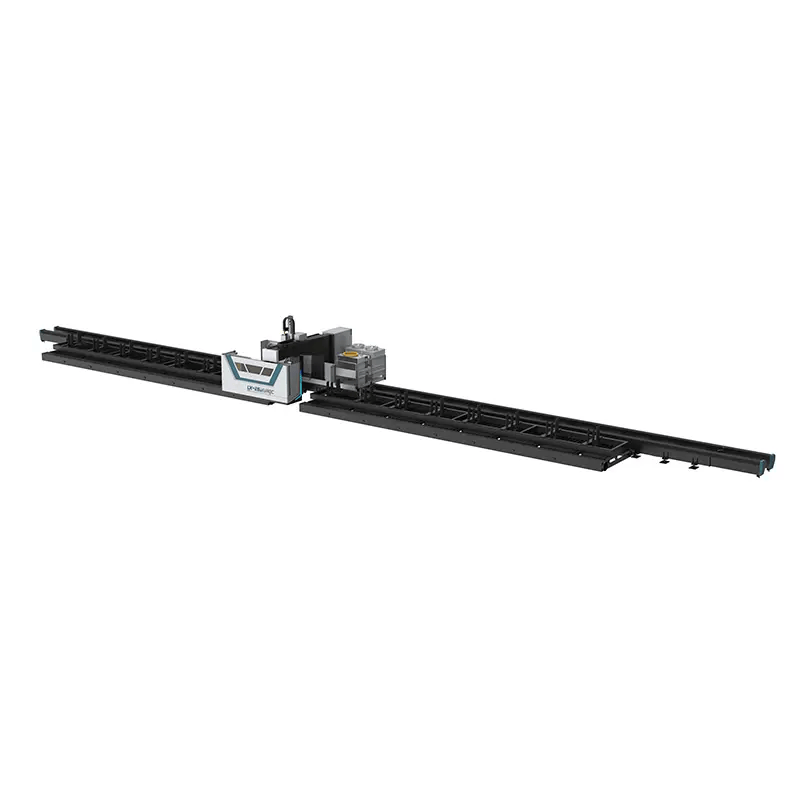

The LX26015HGC is a latest-generation industrial fiber laser cutting machine, designed specifically for heavy machinery manufacturing, infrastructure projects, and the production of steel structures. This high-power CNC laser (available with power outputs ranging from 1 kW to 20 kW) offers a unique, versatile functionality: it is capable of seamlessly processing both H-beams—ranging from 200 to 1200 mm in size and up to 12 meters in length—and large-format metal sheets measuring 1.5 x 12 meters.

Specifications

Model number :

LX26015HGC

Laser source power :

1 000 - 20 000W ( IPG/MAX/RAYCUS/JPT )

Working area :

1 500 × 12 000mm

Maximum acceleration :

1.5G

Max. travel speed :

120 m/min

Positioning accuracy :

±0.05mm

Cutting precision :

±0.02mm

Mains voltage :

380V / 50-60hz

Warranty :

3 years - Equipment
2 years - Laser source

Standards :

ISO 9001:2015,
EN ISO 12100:2010,
EN 60204-1:2018,
EN ISO 11553-1:2020

Compliance :

Low Voltage Directive 2014/30/EU
Machinery Directive 2006/42/EC
