LX12025F

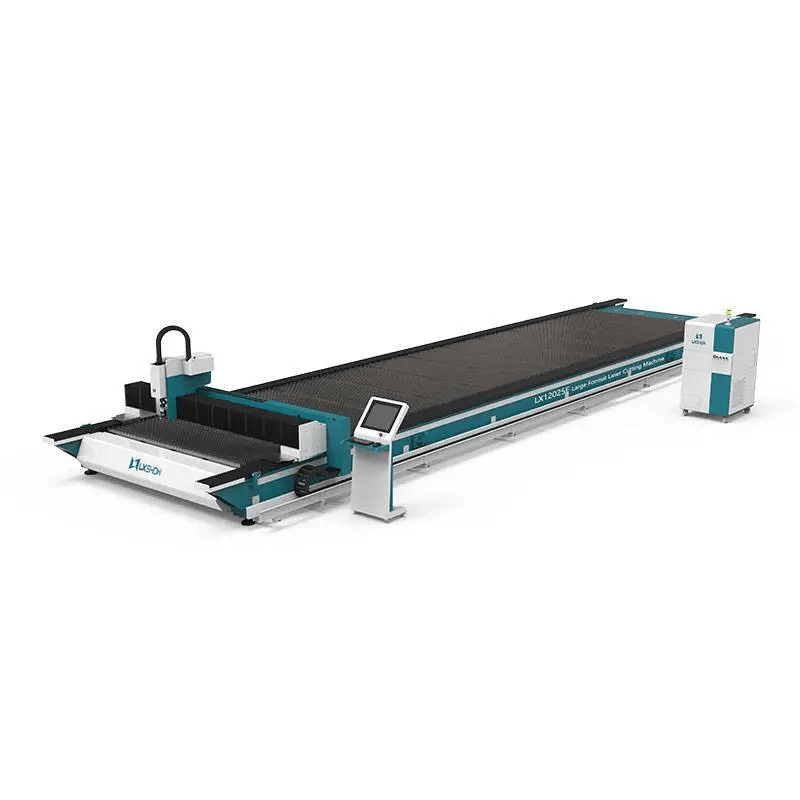

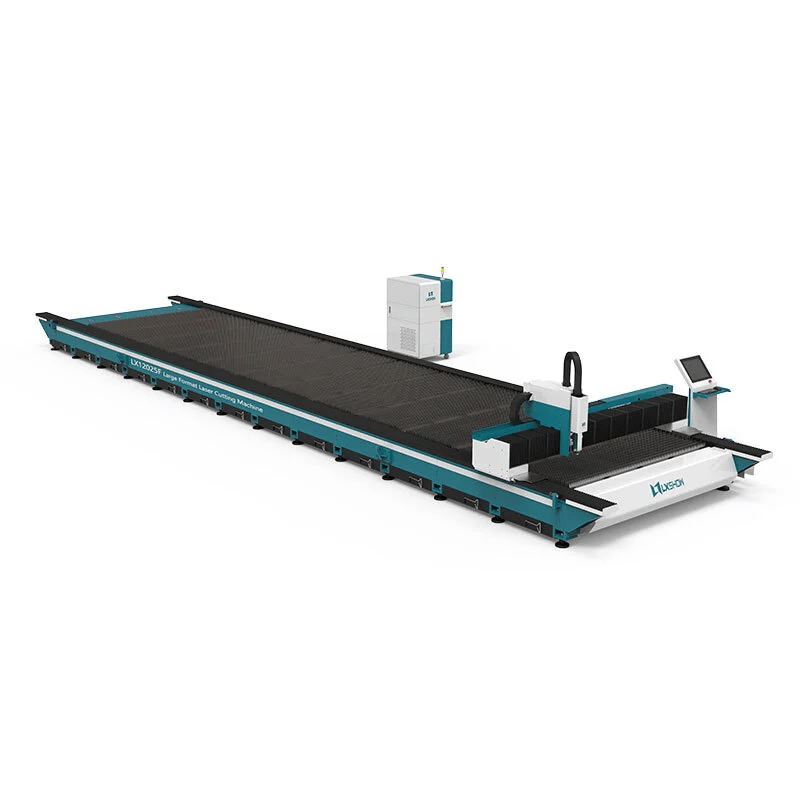

The LX12025F is a high-performance, large-format fiber laser cutting machine developed by LXSHOW Laser for processing large metal sheets. With an impressive working area of ​​2550 x 12100 mm, this model ensures maximum material utilization efficiency, enabling the rapid and precise cutting of large sheets of carbon steel, stainless steel, and aluminum.

Specifications

Model number:

LX12025F

Laser source power:

4000 - 40000W ( IPG/MAX/RAYCUS/JPT )

Work area:

2550 x 12,100 mm (other sizes available upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

80m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source

Features
