LX12025L

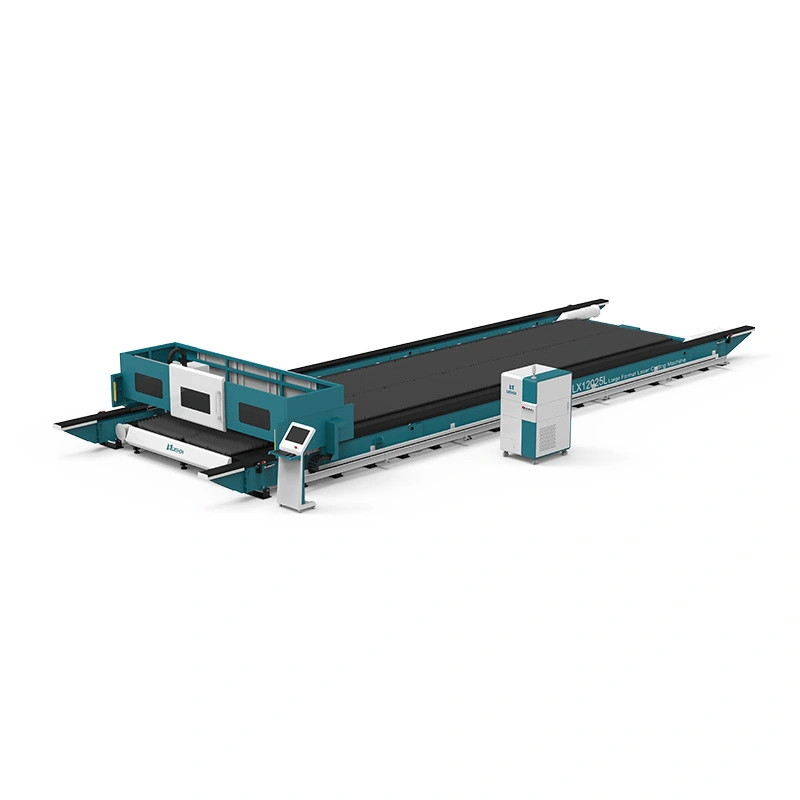

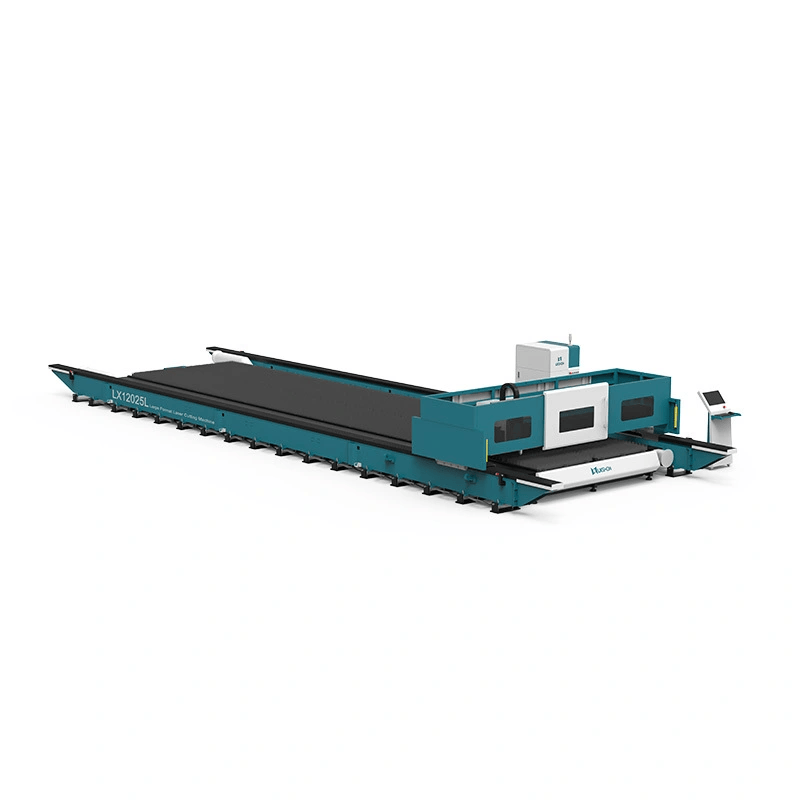

The LX12025L is an ultra-large format fiber laser metal cutting machine from the LXSHOW L series, featuring an impressive working area of ​​2500 x 12000 mm. This model was designed as a cost-efficient solution for companies that need to process exceptionally large and long metal sheets but—due to production specifics or budget constraints—do not require a more expensive enclosed housing or a dual-pallet exchange system.

Specifications

Model number:

LX12025L

Laser source power:

1000 - 40000W ( IPG/MAX/RAYCUS/JPT )

Work area:

2500 x 12,000 mm (other sizes upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

60m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
