LX13025LC

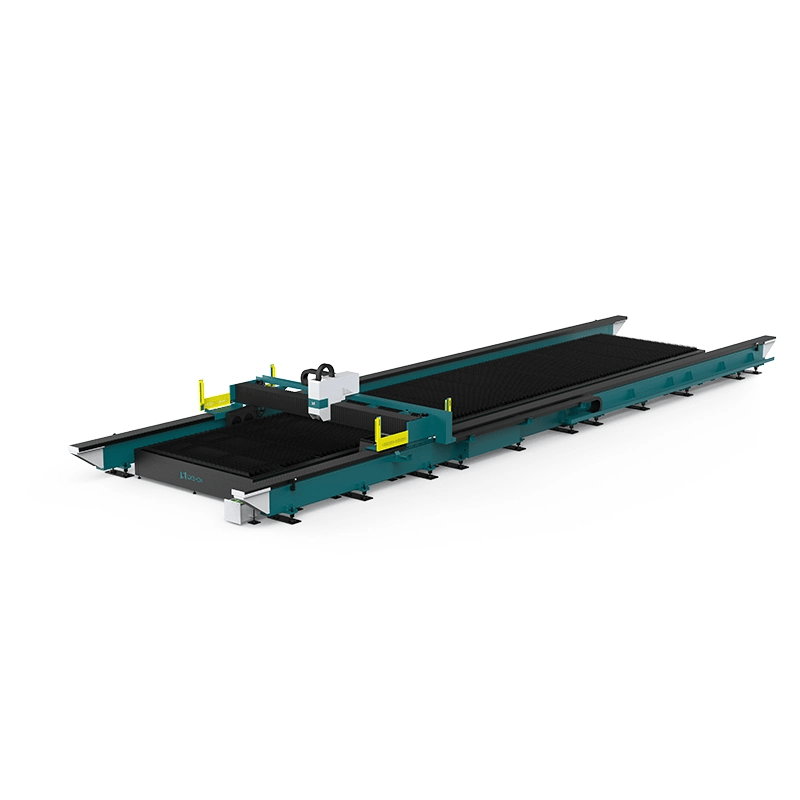

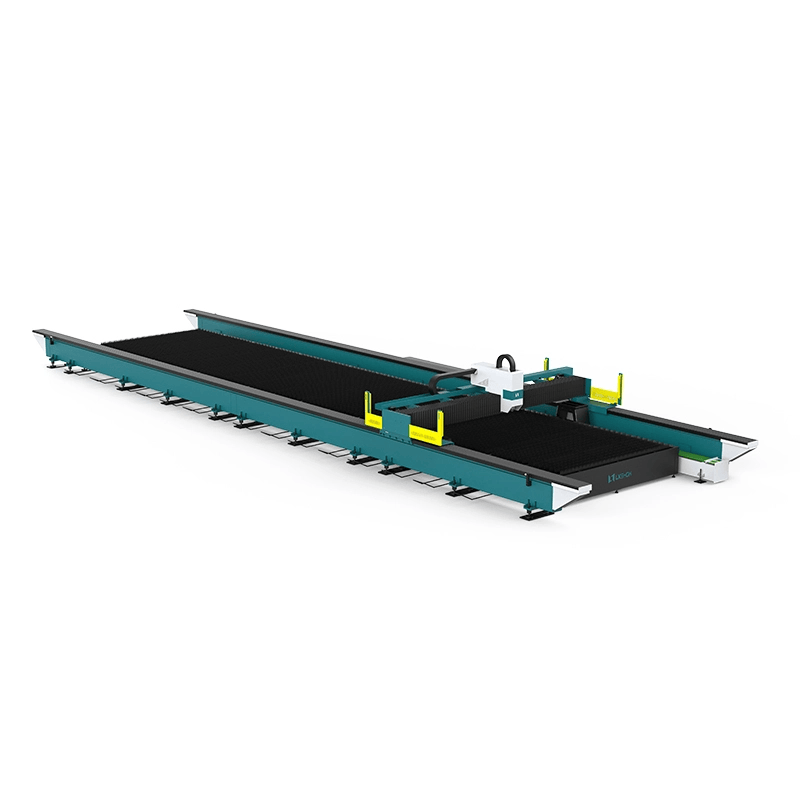

The LX13025LC is LXSHOW’s latest-generation, high-performance, large-format fiber laser metal cutting machine, featuring an impressive working area of ​​2500 x 13000 mm. This CNC system is specifically designed and tailored for heavy industry, enabling the processing of exceptionally long and wide metal plates without the need for pre-cutting. The machine supports a wide power range—from 1500W up to 30kW—providing an efficient solution for cutting both thin and very thick metals, up to 60 mm in thickness.

Specifications

Model number:

LX13025LC

Laser source power:

1500 - 30000W ( IPG/MAX/RAYCUS/JPT )

Work area:

2500 x 13000mm (citi izmēri pēc pasūtījuma )

Positioning accuracy:

±0.01mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
