LX14030LA

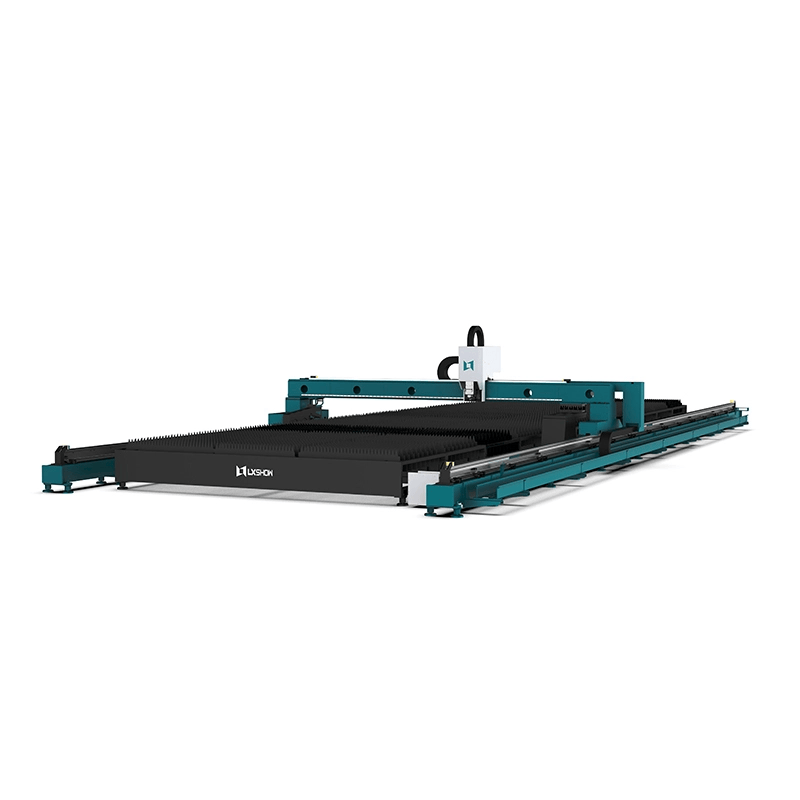

The LX14030LA is a next-generation, large-format, ultra-high-power fiber laser cutting machine developed by the leading manufacturer LXSHOW Laser. Designed for maximum productivity, this industrial laser delivers unmatched speed and precision when processing both thin and ultra-thick metal sheets. With power configurations ranging from 1.5 kW to 80 kW, the LX14030LA easily handles the cutting of carbon steel, stainless steel, aluminum, and other non-ferrous metals. The machine features an advanced water cooling system and automated solutions that ensure stable operation during continuous production.

Specifications

Model number:

LX14030LA

Laser source power:

1500 - 80000W ( IPG/MAX/RAYCUS/JPT )

Work area:

3000 x 14,000 mm (other sizes upon request)

Positioning accuracy:

±0.01mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
