LX20035LD

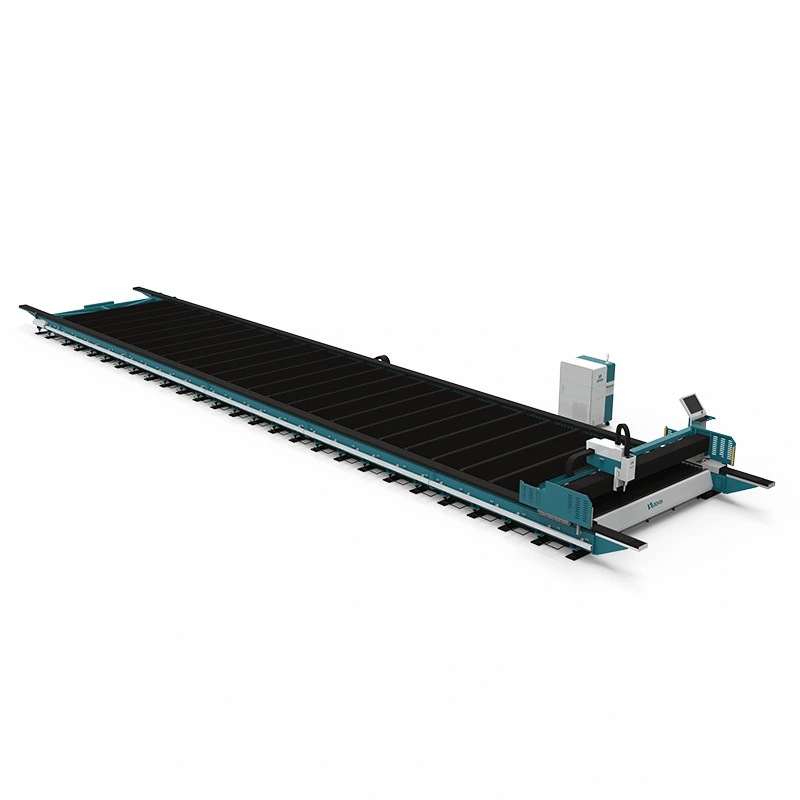

The LX20035LD is the powerful flagship of the LXSHOW / Lingxiu Laser range in the mega-format segment—a professional fiber laser metal cutting machine featuring a massive 3,500 x 20,000 mm working area. This CNC system is specifically engineered for companies engaged in the serial cutting of massive, extra-long, and thick metal sheets, where standard 6- or 12-meter machines fall short.

Specifications

Model number:

LX20035LD

Laser source power:

1000 - 12000W ( IPG/MAX/RAYCUS/JPT )

Work area:

3500 x 20,000 mm (other sizes upon request)

Positioning accuracy:

±0.03mm

Max. travel speed:

120m/min

Maximum acceleration:

1.5G

Mains voltage:

380V / 50-60hz

Warranty:

3 years – Equipment
2 years – Laser source
