DAMI - HD Model

DAMI - HD MODEL :CNC Plasma cutting machine with extreme reliability under all working conditions. Working area width: 7.5 m; length: no limit. The work table, separated from the structure to avoid the stress caused by the weight of the thick sheets used (up to 600 mm), The numerical control is supplied by TEX COMPUTER: it is a 32-bit device of the Power series with high-resolution color touch screen display.

Specifications

Extreme reliability under all working conditions (proven by the large number of installations on all continents) make HD our main product.

The work table, separated from the structure to avoid the stress caused by the weight of the thick sheets used (up to 600 mm), is controlled by the CNC: depending on the position of the bridge, the CNC opens or closes the right tank directly under the cutting source: this makes it possible to focus the suction and achieve high performance of the filtration system.

The bridge moves on a rail: two motors connected in GANTRY mode and a spring system that maintains the correct distance between racks and pinions allow a practically unlimited length of the long axis. The movement system is based on groups of pinion - gearbox - DC motor (brushless on request): everything allows a smooth and precise movement.

The short axis moves on a circular guide and can reach a length of 7 meters.

The numerical control is supplied by TEX COMPUTER: it is a 32-bit device of the Power series with high-resolution color touch screen display.

The CNC can be connected to the factory network via the on-board LAN (also wirelessly) and has a USB port that the operator can use to load the cut files (if there is no network connection).

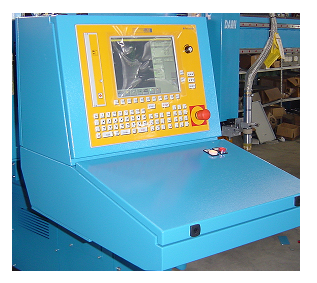

The console is connected to the shoulder of the machine and allows the operator to have complete control of the entire system in all phases of work.

The large number of machines produced makes it possible to reduce prices as well as production and delivery times.

Technical data

- Working area: width: 7.5 m; length: no limit
- Height of the torch from the table: on request
- Maximum travel speed: 12000 mm/min
- Cutting speed: depending on the cutting source used
- Accessories: oxy-fuel torch with automatic or manual adjustment, plasma system, drilling machine, cinfer system
