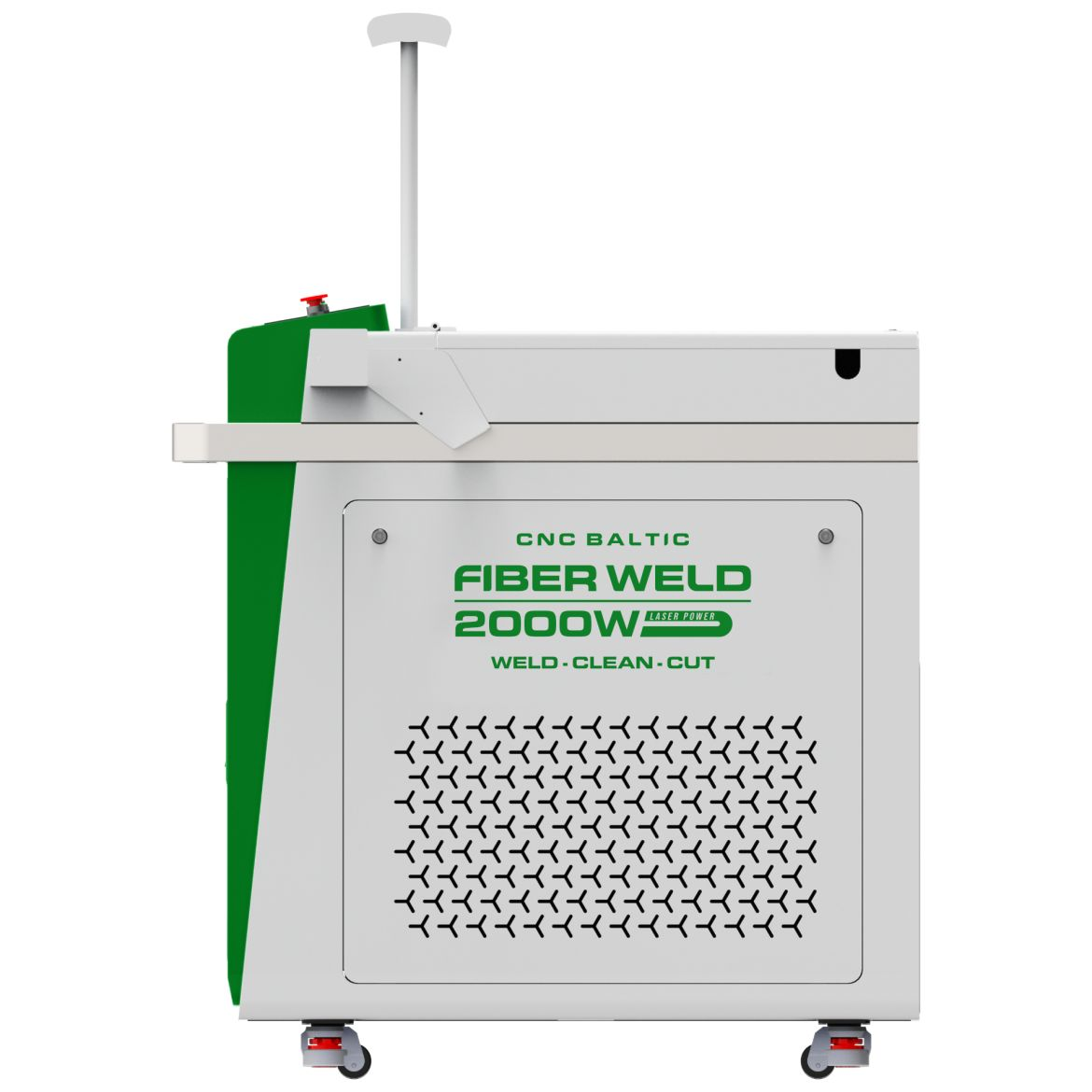

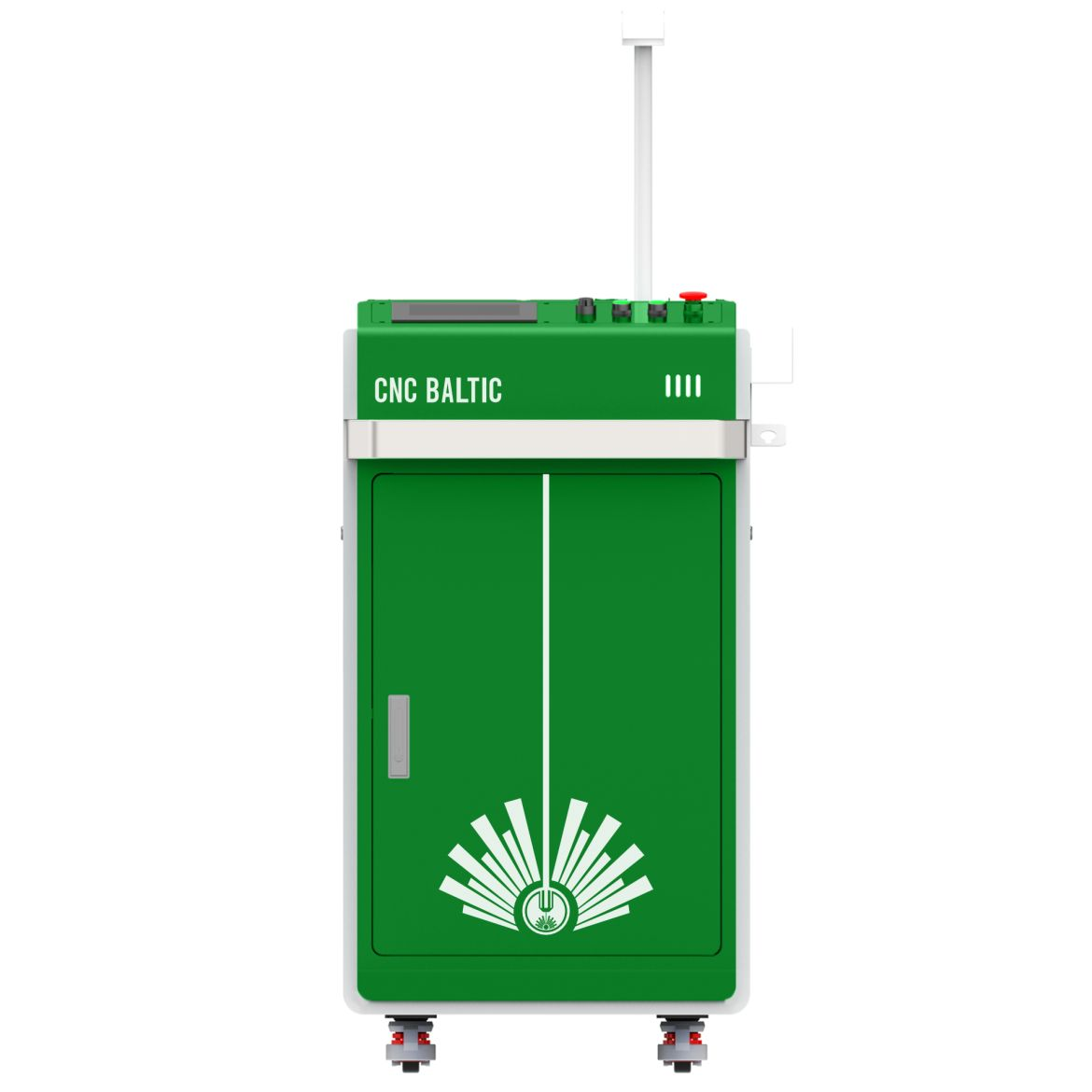

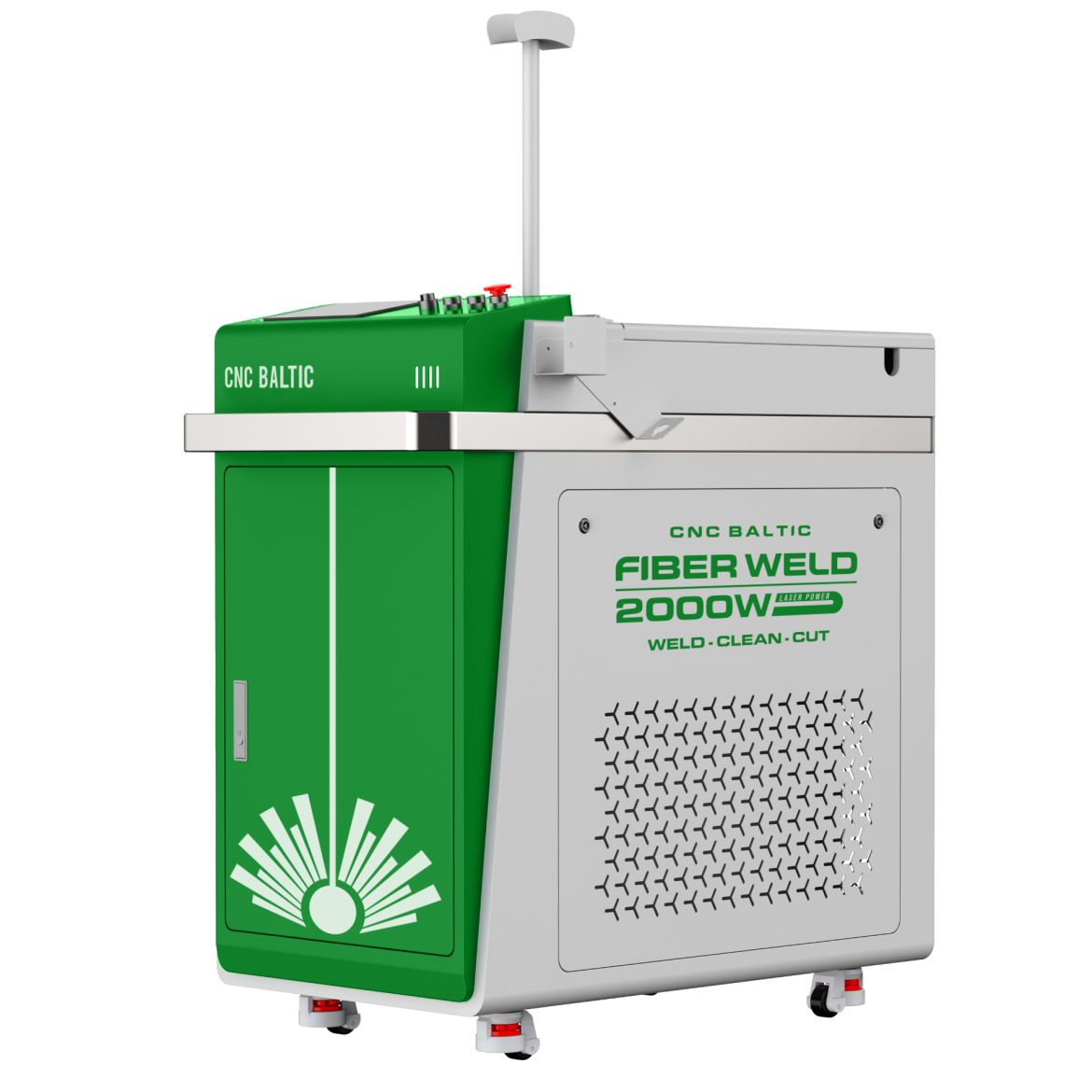

FIBER-WELD 2000W : Laser welding machine

FIBER-WELD 2000W : Continuous laser welding machine. Suitable for welding carbon steel, stainless steel, aluminum and their alloy metal materials. System power 2000W - for welding up to: 5mm Fe, 6mm CrNi, and 4mm Al.

Specifications

Model: FIBER-WELD 2000W
Laser brand: IPG/ MaxPhotonics / Raycus / JPT
Laser power: 2000 W
Laser power module lifetime: 100 000 hours
Laser wave lenght: 1080±5nm
Fiber cable lenght:  5 / 10 / 15 m
Welding wire diameter: 0.8 / 1.0 / 1.2 / 1.6 mm
Shield gas specification: Inert gas - Nitrogen, Argon, Helium ( N2 , Ar , He )
System cooling: Water cooling ( distilled, dielectric water )
Controller: Au3tech / Qilin / Raytools / SUP / Relfar
Laser head: Au3tech / Qilin / Raytools / SUP / Relfar
Aiming and positioning system: Red point
Additional equipment:

Wire feeder for welding function.

Water cooler: S&A or HANLI brand
Mains supply: 220V AC, single phase, 50hz
Warranty: 2 years


ROOM PREPARATION, INSTALLATION AND TRAINING ON REQUEST.
